PHANTEKS AMP GH 1200W 80 Plus Platinum ATX 3.1 PCIe 5.1 Fully Modular - Black

Description

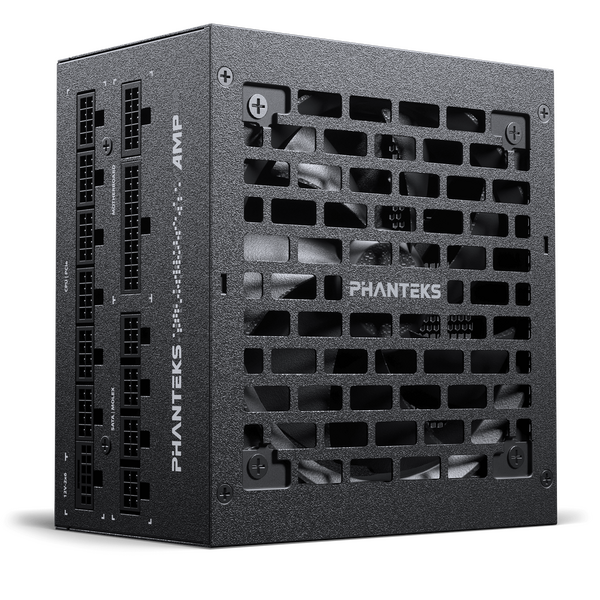

The Phanteks AMP GH 1200W is a high-performance ATX-3.1 power supply that safely powers your gaming hardware. Phanteks has developed a compact power supply that, with a depth of only 140mm, conforms to the standard ATX form factor and fits in most cases. By using high-quality electrical components, this 80 PLUS Platinum-certified power supply operates extremely efficiently. Its fully modular design with individually shielded and specially textured cables makes installation easier and provides a tidy appearance.

Phanteks AMP GH 1200W at a Glance
High-performance ATX-3.1 power supply with 1,200 watts for high-end PCs
80 PLUS Platinum certification thanks to high efficiency of up to 94%
Quiet 120mm fan with hydrodynamic bearing for efficient cooling
Less cable clutter and better airflow thanks to modular cable management

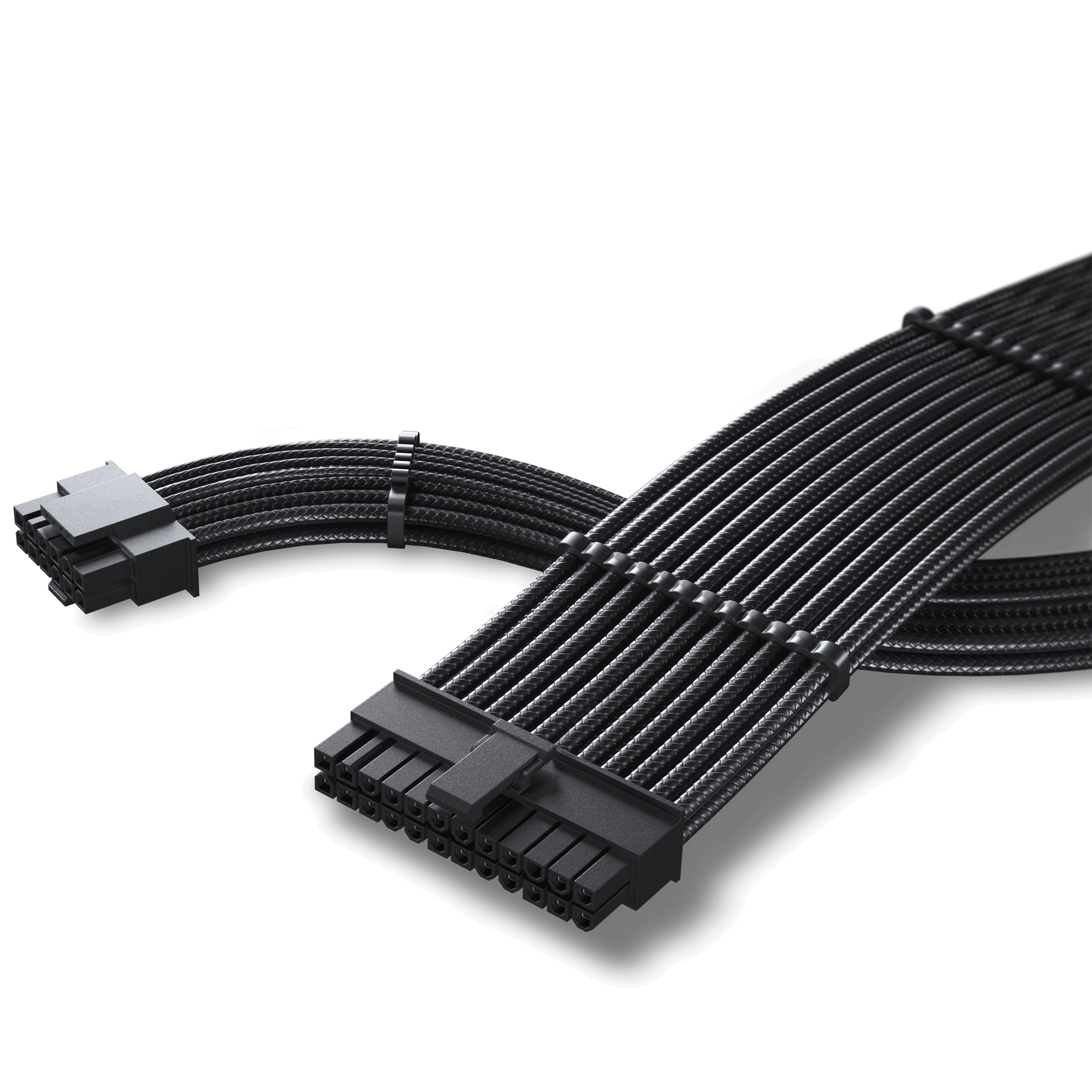

Cables with individually textured cable strands for a tidy build
Silent operation at the push of a button thanks to semi-passive hybrid mode
Phanteks AMP GH 1200W Specification
Dimensions Length: 140 mm
Width: 150 mm
Height: 86 mm
Fan Size 120 mm
PSU Format ATX
ATX Standard ATX 3.1
12V Distribution Single rail
Modular Power Supply Yes
Modular Type Fully modular
Protection Circuits No-Load Protection, OCP (Overcurrent Protection), OPP (Overload Protection), OTP (Overtemperature Protection), OVP (Overvoltage and Undervoltage Protection), Reset Protection, SCP (Short-Circuit Protection), UVP (Undervoltage Protection)
Total Power Output 1200 W
Power Output +3.3V 66 W
Power Output +5V 100 W
Power Output +3.3V & +5V (combined) 120 W
Power Output +12V rails 1200 W
Power Output -12V 3.6 W
Power Output +5Vsb 15 W
Max. CPU Power Cable Length 650 mm
Max. 24-Pin Motherboard Power Cable Length 610 mm
Max. 12V-2x6 Cable Length 720 mm
Max. PCIe Power Cable Length 750 mm
Max. SATA Power Cable Length 900 mm
Semi Passive Power Supply Yes
Switchable Semi Passive Mode Yes
Semi Passive Type Passive
CPU Power Connectors 12V ATX/EPS 2
CPU
