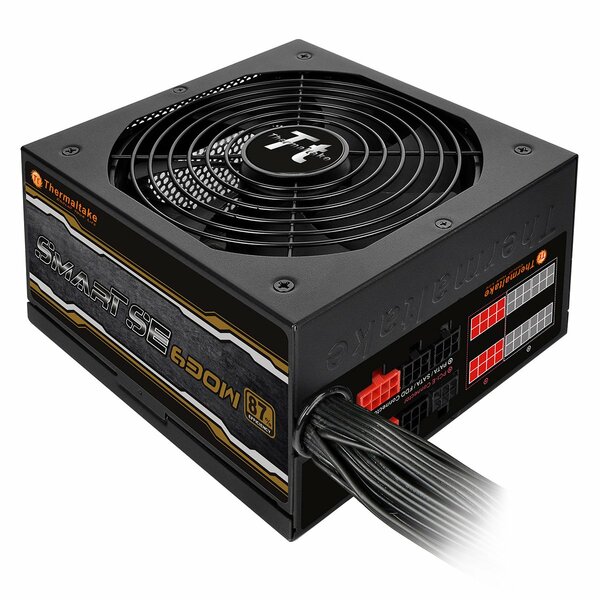

THERMALTAKE Smart SE 630W 80+ Bronze Efficiency Modular PSU 14cm Fan AFPC

Description

The latest presentation from Thermaltake in the essence of mainstream systems – the SMART SE Series PSU, a performance series of power supply units (PSU) that incorporated various PSU high-tech components, leading technology and Eco-friendly credentials, ranged between 530 to 730W with semi-modular that will accommodate any mainstream build under any circumstance. It is ideal for users to build a home or office system for 24/7 stable demands.

Key Features

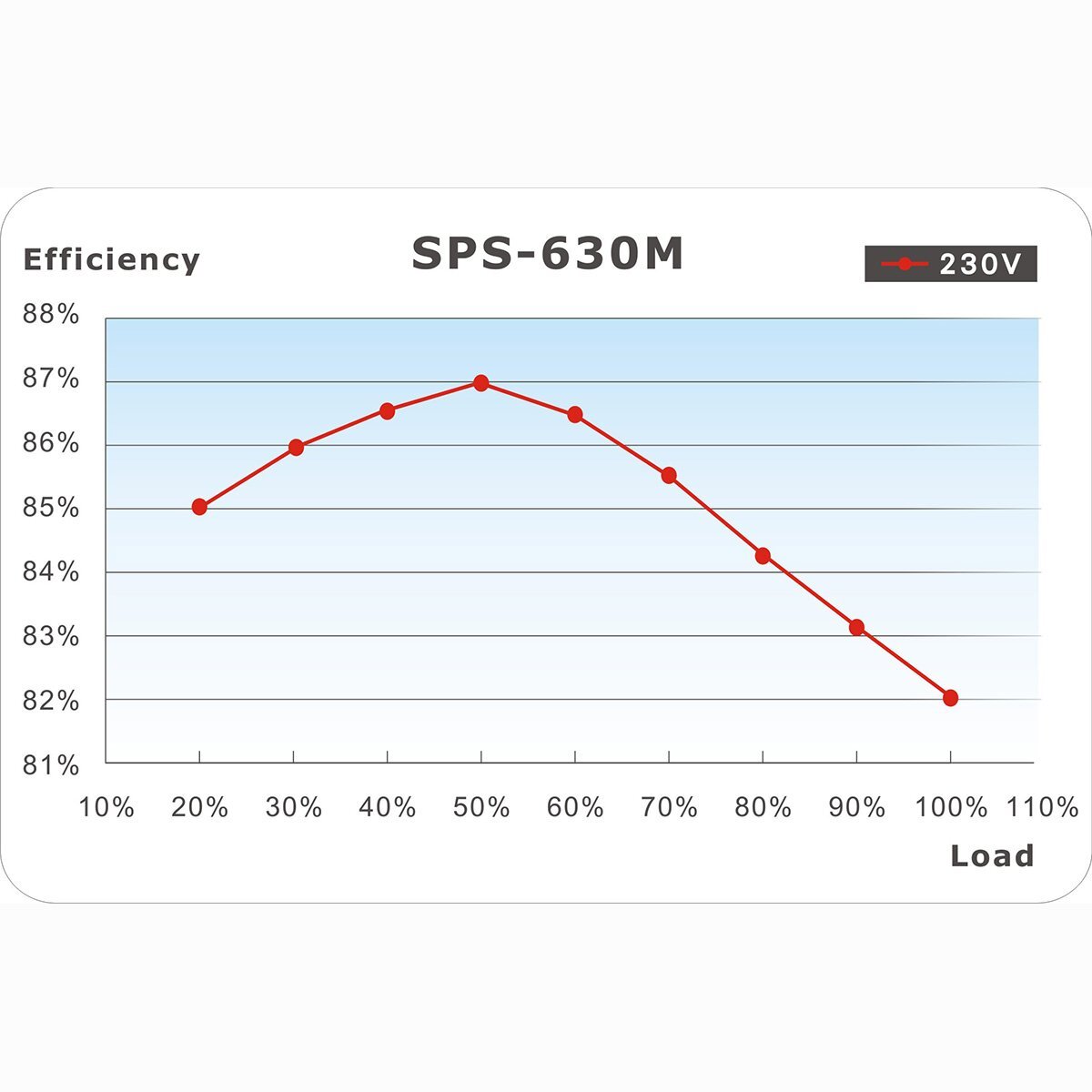

•87% Efficiency - Deliver up to 87% efficiency at 20-100% load under real world load conditions to cut down electric cost and promise lowest power losses. Saving the unnecessary waste of energy and environmental protection.

•Flat & Low Profile Cable - All low-profile flat modular cables that not only increased the airflow and made chassis thermal performance improved, but also allow for effortless cable routing.

•Modular cable - Customizing concept of Smart SE 530/630/730W enables user to maximize available power and make set-up easy. It is a semi-modular power supply that offered cable selection for users while powering system at a healthy voltage.

•Top Quality made Capacitor - High quality main capacitor produces supreme performance with low impedance characteristics. The stable operation works for longer time with excellent reliability to enhance the power supply performance.

•Smart Fan Control - Large 140mm cooling fan, built-in with intelligent temperature control device can automatically detect the power load for fan speed adjustment and maintain optimal mute performance.

Detailed Specifications



Dimensions: 150mm x 86mm x 160mm (W x H x D)
Input Voltage: 200VAC - 240VAC
Input Current: 4.5A max.
Input Frequency Range: 47Hz - 63Hz
PFC: Active PFC
Power Good Signal: 100-500 msec
Hold Up Time: 16msec (minimum) at 80% of full load at 230Vac inp
Efficiency: Deliver up to 87% efficiency
MTBF: 100,000 hrs minimum
Protection: OVP, OPP, SCP
Power: 630W
Operation Tem
