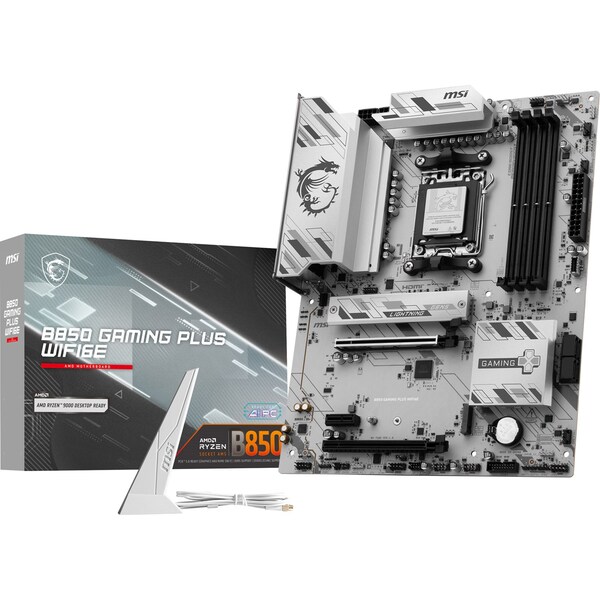

MSI AM5 B850 GAMING PLUS WIFI6E AM5 DDR5 ATX Motherboard

Product Description
Delivery
Returns

Description

MSI AM5 B850 GAMING PLUS WIFI6E AM5 DDR5 PCIe 5.0 ATX Motherboard

The B850 GAMING PLUS WIFI6E is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring the advanced Wi-Fi 6E, 2.5G LAN, PCIe 5.0 M.2 solution, and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.

Key Features:
Form Factor: ATX
Socket: AM5
Memory: DDR5 (Max: 256GB)
Storage: 2 x M.2, 4 x SATA
Wi-Fi: Built-in

Motherboard Specifications
Chipset AMD B850
CPU Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Socket AM5
Memory 4x DDR5 UDIMM, Max 256GB
DDR5 8200 - 5600 (OC) / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Max OC:
• 1DPC 1R: 8200+ MT/s
• 1DPC 2R: 6400+ MT/s
• 2DPC 1R: 6400+ MT/s
• 2DPC 2R: 6000+ MT/s
Supports AMD EXPO™, Dual-Channel, Non-ECC, Un-buffered, CUDIMM (Clock Driver bypass only)
* CUDIMM and POR frequency may vary by CPU. BIOS updates may improve compatibility.
Onboard Graphics 1x HDMI™ 2.1 (4K@60Hz)
1x DisplayPort 1.4 (4K@60Hz)
*Available only on CPUs with integrated graphics
Expansion Slots 2x PCI-E x16 Slots:
• PCI_E1: PCIe 4.0 x16 (9000/7000), x8 (8700/8600/8400), x4 (8500/8300)
1x PCI-E x1 Slot (PCIe 3.0 from Chipset)
PCI_E3: PCIe 4.0 x4 (from Chipset)
Audio Realtek® ALC897, 7.1-Channel HD Audio
Storage 2x M.2 Slots:
• M.2_1 (CPU): PCIe 5.0 x4 (9000/7000), PCIe 4.0 x4 (8000), supports 22110/2280
• M.2_2 (CPU): PCIe 4.0 x4 (9000–7000), PCIe 4.0 x2 (8500/8300), supports 2280/2260
4x SATA 6Gb/s
*Check manual for M.2 heatsink restrictions
RAID SATA: RAID 0, 1, 10
M.2 NVMe: RAID 0, 1
USB Ports Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
Rear: 4x USB 5Gbps Type-A, 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C
LAN Realtek® 8125D 2.5G LAN
Wireless & Bluetooth Wi-Fi 6E (Pre-installed in M.2 Key-E)
• MU-MIMO TX/RX
• 2.4 / 5 / 6GHz (160MHz), up to 2.4Gbps
• 802.11 a/b/g/n/ac/ax
• Bluetooth® 5.3 (Win11 / Win10 21H1), FIPS, FISMA
Internal I/O 1x ATX_PWR, 2x CPU_PWR
1x CPU Fan, 1x Pump/Sys Fan, 4x System Fan
2x Front Panel (JFP), 1x JAUD, 1x JCI, 1x JCOM, 1x JDASH, 1x JAF_1
3x JARGB_V2, 1x JRGB
1x TPM Header (TPM 2.0)
USB: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
LED Features 4x EZ Debug LED, 1x EZ Memory Detection LED
Back Panel Ports Clear CMOS Button
DisplayPort 1.4, HDMI™
2.5G LAN, Wi-Fi / Bluetooth
Flash BIOS Button
USB: 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 5Gbps Type-A
HD Audio Connectors
Operating System Windows® 11 64-bit
Form Factor ATX (243.84mm x 304.8mm)
Specifications
expand_less
Wi-Fi & LAN
LAN Yes
LAN Ports 1x 2.5 Gbit/s
Wi-Fi / Bluetooth Yes
Lighting
Lighting / RGB Yes
Form Factor
Motherboard formfactor ATX
Motherboard
Motherboard Chipset AMD B850
CPU
CPU Manufacturer AMD
CPU Socket AM5
Colour
Primary Colour White
Fan Header
4 Pin Fan Connectors 6
Memory
Max. Memory 256 GB
Memory Type DDR5
Memory Form Factor DIMM
Memory slots 4x
Internal Ports
CPU Power Supply 2x 8-Pin
