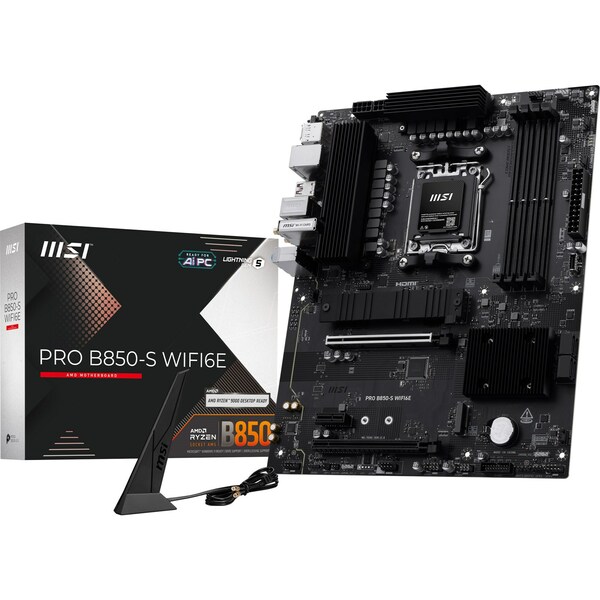

Description
Overclocking & AMD EXPO™ supported Memory OC Speeds (Ryzen 9000) 1DPC 1R: 8200+ MT/s
1DPC 2R: 6400+ MT/s
2DPC 1R: 6400+ MT/s
2DPC 2R: 6000+ MT/s Onboard Graphics 1x HDMI 2.1, 1x DisplayPort 1.4 (4K@60Hz, CPU dependent) Expansion Slots 2x PCIe x16 (Gen 5.0/4.0)
1x PCIe x1 (Gen 3.0)
PCI_E1: Gen 5.0 x16 / 4.0 x8/x4 depending on CPU AudioRealtek® ALC897, 7.1-Channel HD Audio Storage 2x M.2 (PCIe 5.0 & 4.0 from CPU, up to 22110/2280)
4x SATA 6Gb/s
RAID 0/1/10 for SATA, RAID 0/1 for M.2 NVMe USB Ports Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
Rear: 4x USB 5Gbps Type-A, 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C LANRealtek® 8125 2.5G LAN Wi-Fi & Bluetooth Wi-Fi 6E (2.4/5/6GHz, up to 2.4Gbps), Bluetooth 5.3 Internal I/O 1x ATX_PWR, 2x CPU_PWR
1x CPU Fan, 1x Pump/SYS Fan, 4x SYS Fan
2x Front Panel, JAUD, JCOM, JDASH, JCI
3x ARGB, 1x RGB, TPM Header

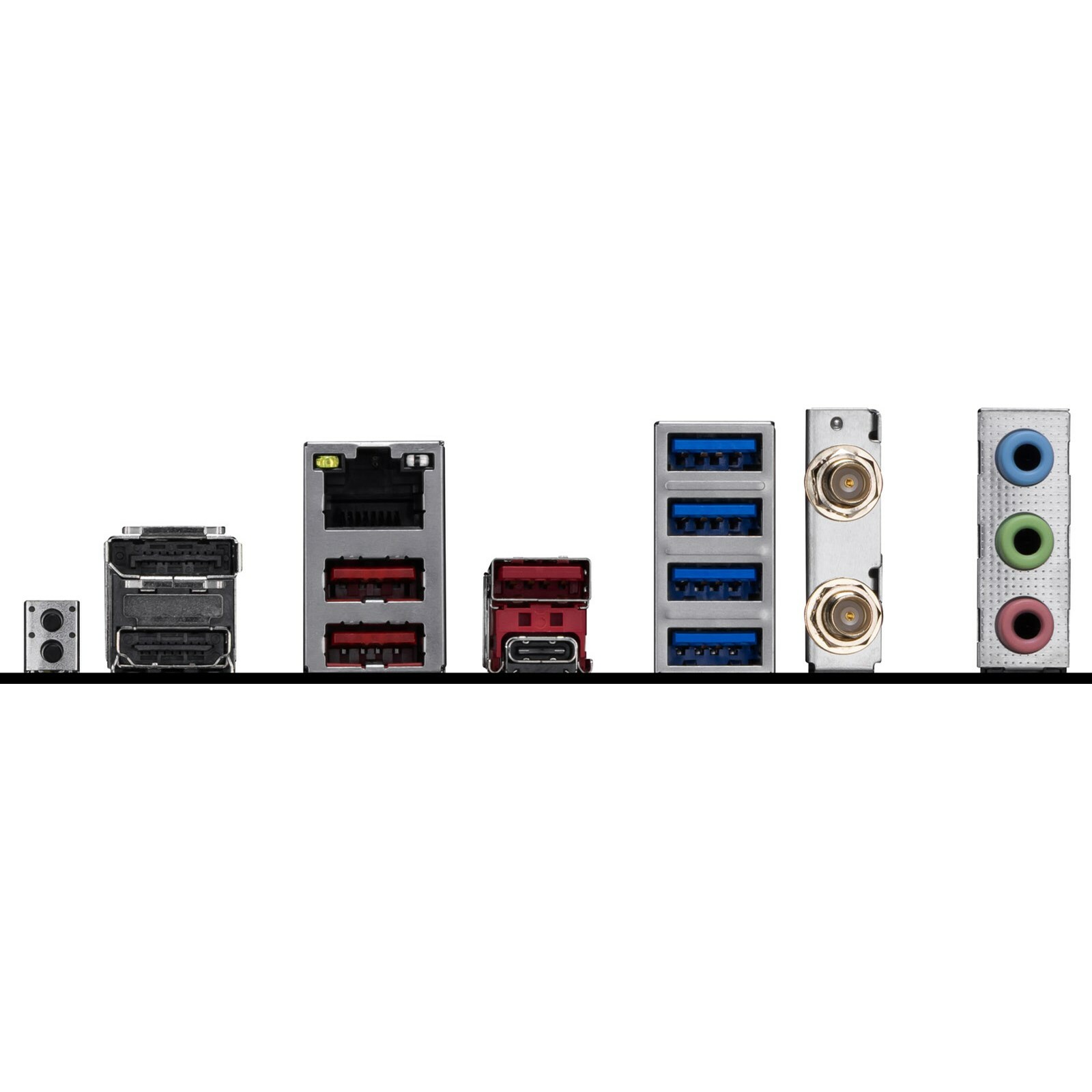

Internal USB: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C LED Features4x EZ Debug LED, 1x EZ Memory Detection LED Back Panel HDMI, DisplayPort
2.5G LAN, Wi-Fi/Bluetooth
Audio Connectors
Flash BIOS Button, Clear CMOS
USB: Multiple 10Gbps & 5Gbps (Type-A & Type-C) OS SupportWindows® 11 64-bit Form FactorATX (243.84mm x 304.8mm)
Specifications
expand_less
Form Factor
Motherboard formfactor ATX
Wi-Fi & LAN
LAN Yes
LAN Ports 1x 2.5 Gbit/s
Wi-Fi / Bluetooth Yes
Colour
Primary Colour Black
Lighting
Lighting / RGB Yes
Motherboard
Motherboard Chipset AMD B850
CPU
CPU Manufacturer AMD
CPU Socket AM5
Fan Header
4 Pin Fan Connectors 6
Memory
Max. Memory 256 GB
Memory Type DDR5
Memory Form Factor DIMM
Memory slots 4x
Internal Ports
CPU Power Supply 2x 8-Pin
