Description

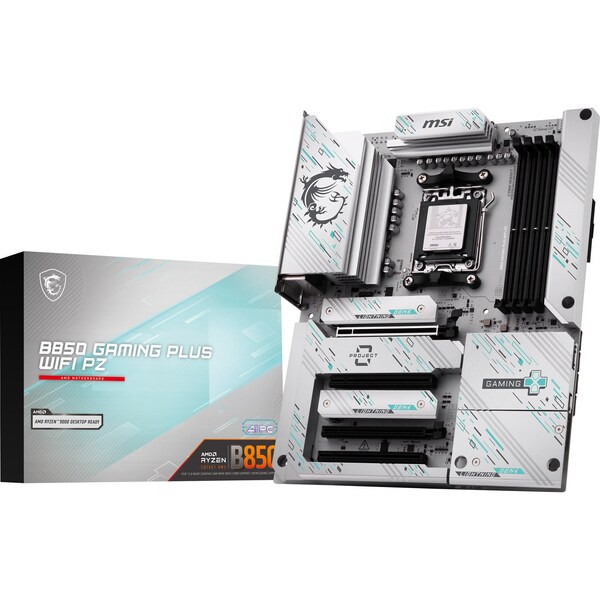

The B850 GAMING PLUS WIFI PZ is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.
Key Features:
Form Factor: ATX
Socket: AM5
Memory: DDR5 (Max: 256GB)
Storage: 3 x M.2, 4 x SATA
Wi-Fi: Built-in
Motherboard Specifications
Chipset AMD B850
CPU Supports AMD Ryzen™ 9000/8000/7000 Series
Socket AM5
Memory 4x DDR5 UDIMM, Max 256GB
DDR5 8200 - 5600 (OC) / 5600 - 4800 (JEDEC) MT/s
Overclocking (Ryzen 9000):
• 1DPC 1R: 8200+ MT/s
• 1DPC 2R: 6400+ MT/s
• 2DPC 1R: 6400+ MT/s
• 2DPC 2R: 6000+ MT/s
Supports AMD EXPO™, Dual-Channel, Non-ECC, Un-buffered, CUDIMM
*CUDIMM support varies by CPU; future BIOS updates may improve compatibility.
Onboard Graphics 1x DisplayPort 1.2 (up to 4K@60Hz)*
*Requires CPU with integrated graphics
Expansion Slots 4x PCI-E x16 slots:
• PCI_E1 (CPU): PCIe 5.0 x16 / 4.0 x8 / 4.0 x4 (depends on CPU)
• PCI_E2: PCIe 3.0 x1
• PCI_E3: PCIe 4.0 x4
• PCI_E4: PCIe 3.0 x1
*PCI_E2, E3, and E4 share bandwidth; PCI_E3 runs at x2 if E2 or E4 is used
Audio Realtek® ALC897, 7.1-Channel HD Audio
Storage 3x M.2 Slots:
• M.2_1 (CPU): PCIe 5.0 x4 (Ryzen 9000/7000), 4.0 x4 (Ryzen 8000)
• M.2_2 (CPU): PCIe 4.0 x4 (9000/7000), 4.0 x2 (8500/8300)
• M.2_3 (Chipset): PCIe 4.0 x2
4x SATA 6Gb/s
*Check manual for M.2 heatsink limitations
RAID SATA: RAID 0, 1, 10
M.2 NVMe: RAID 0, 1, 5
*RAID 5 only supported on Ryzen™ 9000 Series
USB Ports Rear: 4x USB 2.0, 1x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 2x USB 10Gbps Type-C
Front: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 5Gbps Type-C
LAN Realtek® 8126VB 5G LAN
Wireless & Bluetooth Wi-Fi 7 (pre-installed M.2 Key-E module)
• MU-MIMO TX/RX
• 2.4/5/6GHz (up to 5.8Gbps)
• 802.11 a/b/g/n/ac/ax/be
• Bluetooth® 5.4 (Win11 24H2 required)
Internal I/O 1x ATX_PWR, 2x CPU_PWR, 1x PCIE_PWR (8pin)
1x CPU Fan, 1x Pump/Sys Fan, 4x System Fan
2x JFP, 1x JAUD, 1x JCI, 1x JCOM, 1x JDASH
3x JARGB_V2, 1x JRGB
1x TPM header (TPM 2.0)
USB: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 5Gbps Type-C
LED Features 4x EZ Debug LEDs
Back Panel Ports Clear CMOS Button
USB: 2x USB 10Gbps Type-C, 1x USB 10Gbps Type-A, 1x USB 5Gbps Type-A, 4x USB 2.0
DisplayPort
Flash BIOS Button
5G LAN, Wi-Fi / Bluetooth
Audio connectors, S/PDIF Out
Operating System Windows® 11 64-bit
Form Factor ATX (243.84mm x 304.8mm)
Specifications
expand_less
Wi-Fi & LAN
LAN Yes
LAN Ports 1x 5 Gbit/s
Wi-Fi / Bluetooth Yes
Lighting
Lighting / RGB Yes
Form Factor
Motherboard formfactor ATX
Motherboard
Motherboard Chipset AMD B850
CPU
CPU Manufacturer AMD
CPU Socket AM5
Colour
Primary Colour White
Fan Header
4 Pin Fan Connectors 6
Memory
Max. Memory 256 GB
Memory Type DDR5
Memory Form Factor DIMM
Memory slots 4x
Internal Ports
CPU Power Supply 2x 4+4-Pin
