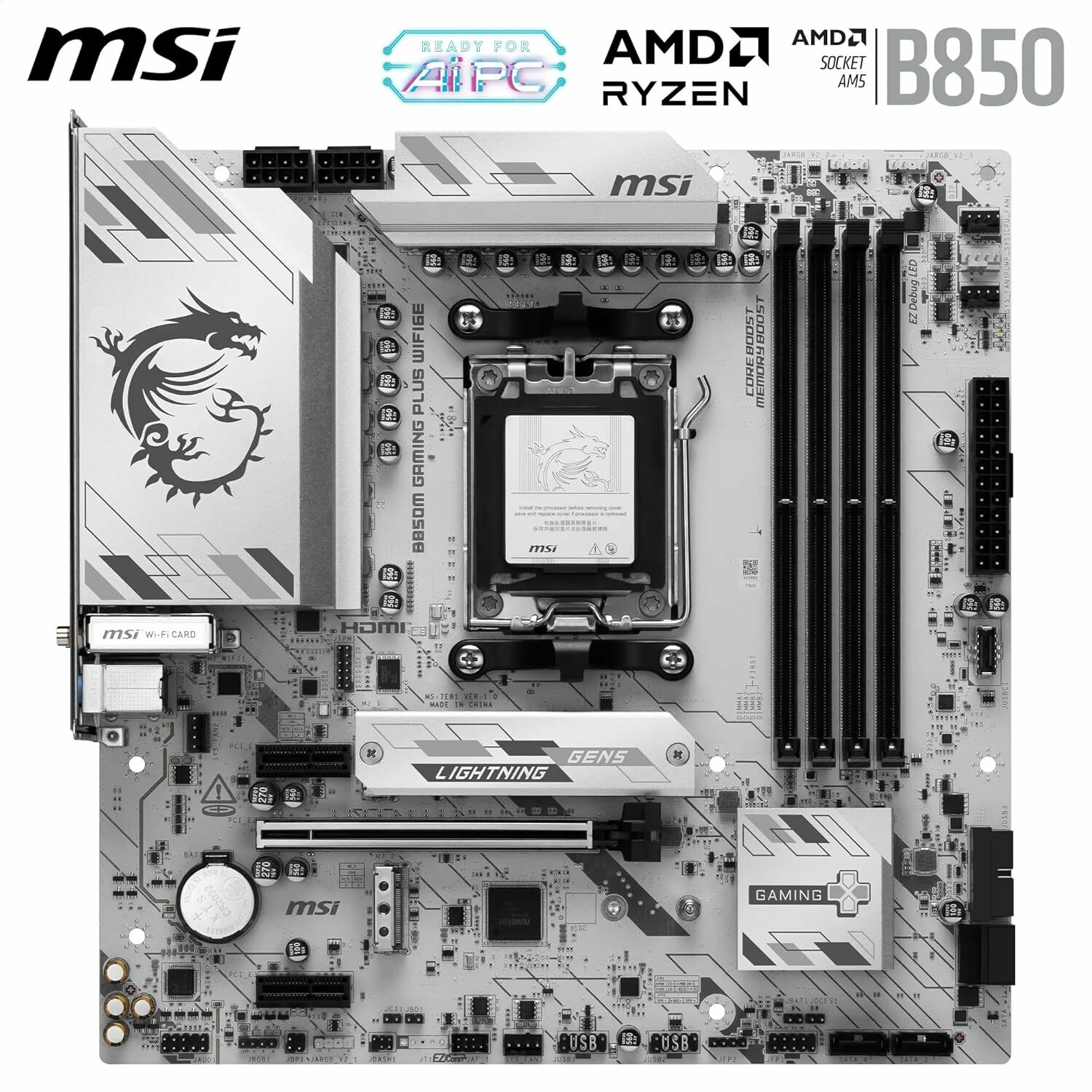

MSI B850M GAMING PLUS WIFI6E mATX Motherboard AMD AM5

Description

The B850M GAMING PLUS WIFI6E is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring the advanced Wi-Fi 6E, 2.5G LAN, PCIe 5.0 M.2 solution, and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.

Key Features:
Form Factor: mATX
Socket: AM5
Memory: DDR5 (Max: 256GB)
Storage: 2 x M.2, 4 x SATA
Wi-Fi: Built-in
USB: 8 port(s)

CPU

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
64-bit Support Yes
Socket AM5

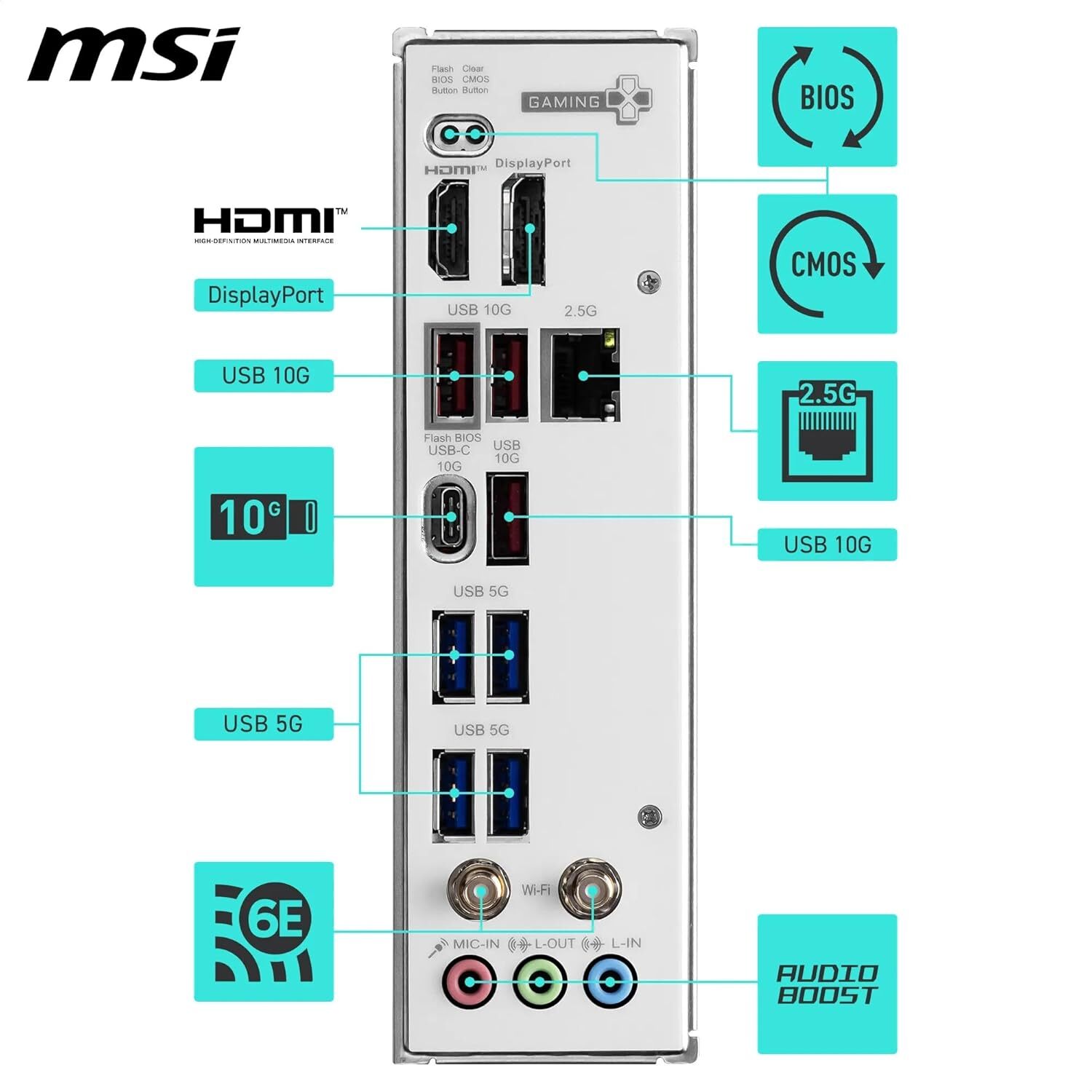

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.1
3 x USB 3.1
4 x USB 3.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna
Internal I/O Connectors

SATA Connectors 4 x SATA
USB Connectors 1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 header (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x Combo fan header
3 x System fan headers
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x TPM header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 1 x M.2 slot, Type 2280/2260 (PCIe Gen5)
1 x M.2 slot, Type 2280/2260 (PCIe Gen4)
3 x 3-pin ARGB headers
1 x 4-pin RGB header
1 x Tuning Controller header
Memory

Memory Bus Speed Up to 8200 MT/s
Memory Type DDR5
Maximum RAM 256 GB
Memory Slot 4 x DIMM
Motherboard

Northbridge AMD B850
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes
Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16 slot
2 x PCI Express 3.0 x1 slots
Graphics Device

Integrated Gra
