Description

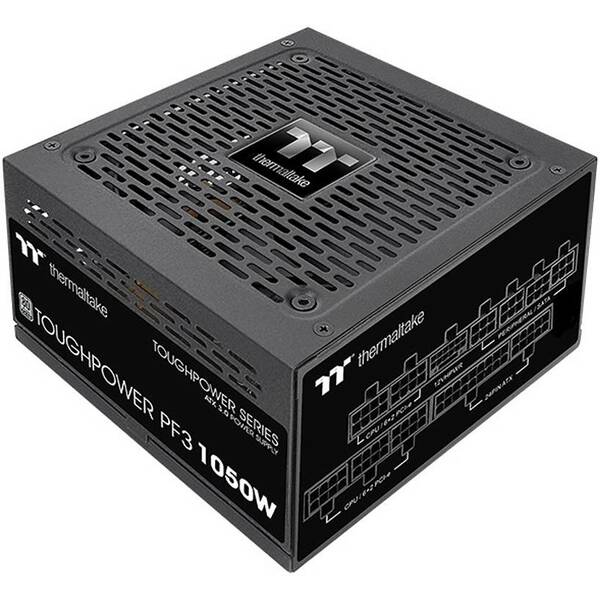

Toughpower PF3 series is 80 PLUS Platinum certified and fully compatible with Intel’s ATX 3.0 specifications. Designed with a native PCIe Gen 5 connector, it can power up next-gen technology with one new 12VHPWR cable.
Watts
1050W
Model
TPD-1050AH2FKP
Max. Output Capacity
1050W
Color
Black
Dimension ( W / H / D )
140mm(D)x86mm(H)x150mm(W)
PFC
Active PFC
Power Good Signal
100-250 msec
Hold Up Time
> 17msec
Input Current
15A
Input Frequency Range
50 - 60Hz
Input Voltage
100 - 240Vac
Operating Temperature
0°C to + 40°C
Operating Humidity
5% to 85%,non-condensing
Storage Temperature
-40°C to + 70°C
Storage Humidity
5% to 95%, non-condensing
Cooling System
12cm FDB Fan
Efficiency
Meet 80 PLUS® Platinum at 115Vac input.
MTBF
100,000 hrs minimum
Safety Approval
CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI
PCI-e 6+2Pin
5
PCIe 12+4Pin
1
