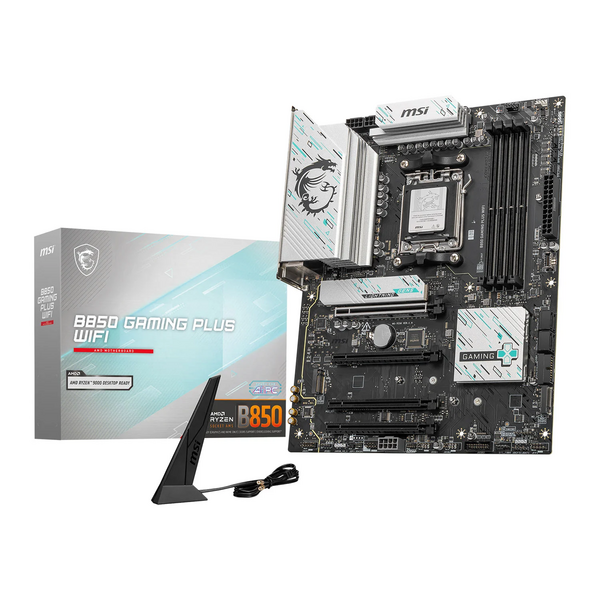

MSI B850 GAMING PLUS WIFIi AM5 DDR5 PCIe 5.0 ATX Motherboard

Description

Specification Details
Model Name B850 GAMING PLUS WIFI
CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
CPU Socket AMD Socket AM5
Chipset AMD B850 Chipset
Expansion Slots 1x PCIe 5.0 x16 slot,
1x PCIe 4.0 x16 slot,
2x PCIe 3.0 x1 slots
Display Interface Support 4K@60Hz as specified in DisplayPort 1.2 HBR – Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 - 8200+ MT/s (OC)
Storage 1x M.2 Gen5 x4 128Gbps slot,
1x M.2 Gen4 x4 64Gbps slot,
1x M.2 Gen4 x2 32Gbps slot,
4x SATA 6Gbps ports
USB Ports 3x USB 10Gbps (1 Type-A + 2 Type-C),
6x USB 5Gbps (5 Type-A + 1 Type-C),
8x USB 2.0
LAN Realtek® 5Gbps LAN
WIFI / BT Wi-Fi 7 Solution, Bluetooth 5.4
Audio 8-Channel (7.1) HD Audio with Audio Boost
Specifications
expand_less
Back Connect
Back Connect No
Water Cooling
Watercooling Yes
Motherboard
Motherboard Chipset AMD B850
Form Factor
Motherboard formfactor ATX
CPU
CPU Manufacturer AMD
CPU Socket AM5
Wi-Fi & LAN
LAN Yes
LAN Ports 1x 5 Gbit/s
LAN Chip Realtek 8126VB
Wi-Fi / Bluetooth Yes
Wi-Fi Standard Wi-Fi 7
Bluetooth Standard 5.4
Dimensions
Length / Depth 243.8 mm
Width 304.8 mm
Colour
Primary Colour Black
Secondary Colour Silver
Lighting
Lighting Yes
Lighting Colour RGB
Expansion Slots
PCIe x16 slots (total) 1
PCIe x4 slots (total) 1
PCIe x1 slots (total) 2
PCIe 5.0 x16 mechanical slot 1
PCIe 4.0 x16 mechanical slot 1
PCIe 3.0 x16 mechanical slot 2
Fan Header
4 Pin Fan Connectors 6
Memory
Max. Memory 256 GB
Memory Type DDR5
Memory Form Factor DIMM
System Memory Subtype UDIMM, CUDIMM
Max. Memory Speed (Standard) 5600 MT/s
Max. Memory Speed (OC) 8200 MT/s
EEC Support No
Memory slots 4x
Performance Profile AMD EXPO
Internal Ports
CPU Power Supply 2x 8-Pin
USB 3.0 / 3.1 / 3.2 (internal) Type C Header 1
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports 1
USB 3.0 (internal) Header 2
USB 3.0 (internal) Possible Ports 4
USB 2.0 (internal) Header 2
USB 2.0 (i
