FSP 750W VITA GM 80 PLUS Gold ATX 3.1 Power Supply

Product Description
Delivery
Returns

Description

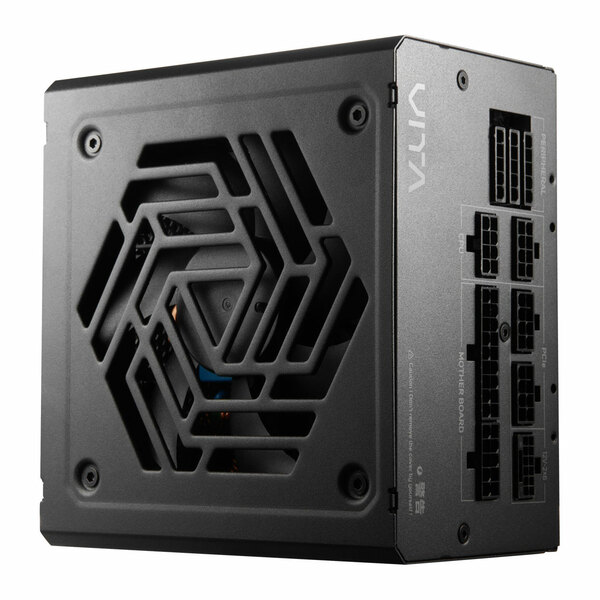

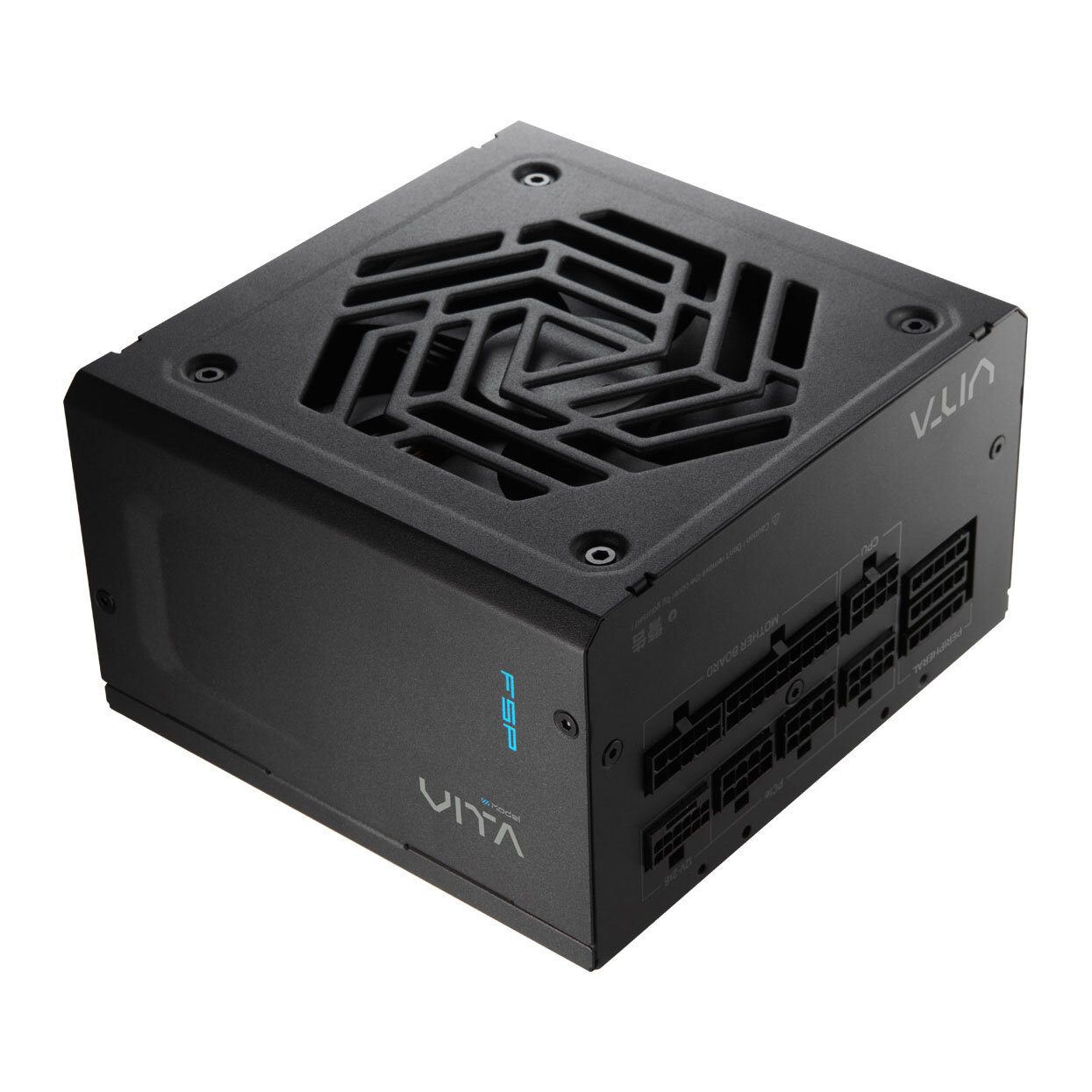

750W VITA GM 80 PLUS Gold ATX 3.1 Power Supply from FSP

Powering the Next Gen
The VITA GM 750W is a fully modular ATX 3.1 power supply designed to handle tomorrow's high-performance hardware. Boasting 80 PLUS Gold certification with over 90% efficiency at typical load, it features a robust +12V rail, 105°C Japanese capacitors, and a quiet 120mm hydraulic bearing fan. It's compact, runs cool and stable, and includes comprehensive protections for demanding gaming and professional PCs.

ATX 3.1 Specification
Complies with Intel ® Power Design Guide ATX 3.1
Built for the demanding power requirements of tomorrow, these PSUs offer maximum total power excursion support as per ATX 3.1 and PCIe Gen 5.1 specifications, ensuring peak performance with future hardware upgrades.

Fortress-Level Protection

OVP
Over Voltage Protection

OCP
Over Current Protection

OPP
Over Power Protection

OTP
Over Temperature Protection

SCP
Short Circuit Protection

UVP
Under Voltage Protection

SIP
Surge and Inrush Protection

NLO
No-Load Operation

LLC Resonant-Converter Topology
with Synchronous Rectifier
Reducing switching losses, boosting efficiency, and keeping the output voltage regulated under load conditions.

+5V & 3.3V DC to DC Circuit Design
Increase the efficiency and stabilise the output voltage to ensure system stability.

Gold Certified Efficiency
Certified by world-class 80 PLUS® gold certifications, reach incredible efficiency at typical load for lower power loss, less heat, and quieter operation.

105°C Japanese Bulk Capacitor
Equip your PC with the best-in-class capacitors to offer maximum reliability, performance, and long lasting power.

Single +12V Rail Powerhouse
This +12V rail delivers high load capabilities - ideal for intensive workloads of high-performance CPUs and graphics cards.

Specifications
Form Factor ATX 3.1
Edition FSP VITA GM
Wattage 750 W
Energy Efficiency Certification 80 PLUS Gold
Max. Efficiency (at 230Vac) 90 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 62.5 A
Max. Combined Output +12V N/A
Modular Yes
Modularity Full Modular
Motherboard Connector 20+4-pin

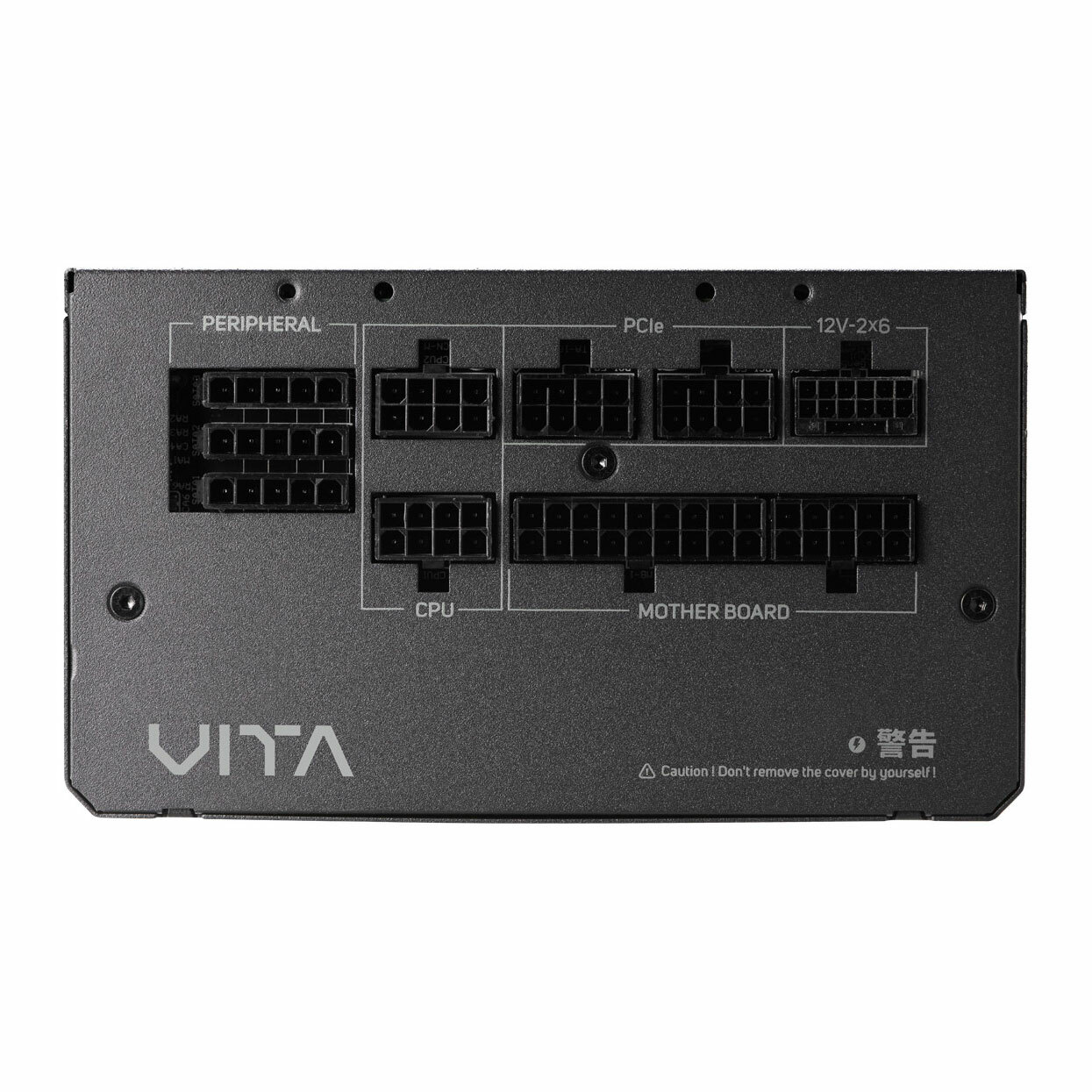

Connectors
1 x 12V-2x6
2 x 4+4-pin CPU +12V (EPS)
4 x 4-pin Molex
4 x 6+2-pin PCIe
8 x SATA
Dimensions 150 x 86 x 140 (WxHxD)
Package Type Retail
Warranty 10 Year
