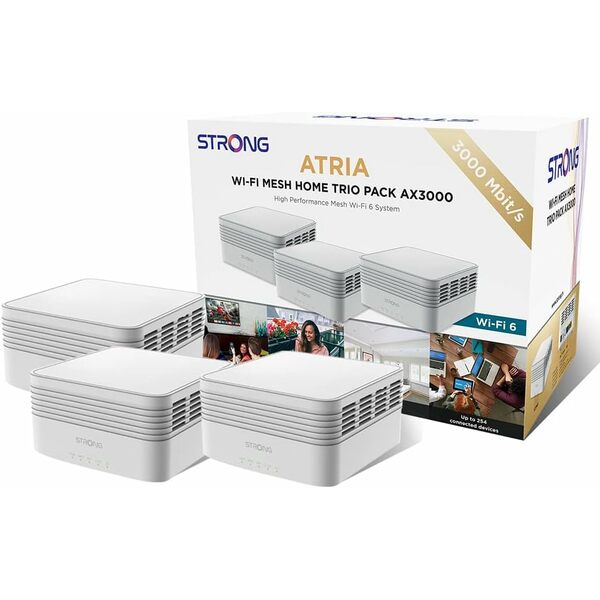

STRONG ATRIA AX3000 Mesh Wi-Fi 6 System: Coverage up to 5,000sq.ft, up to 254 Devices, 3 Gigabit Ports/Node, App Control, Easy Setup (3 NODES)

Description

Using state-of-the-art Easy Mesh™ solution, STRONG's Wi-Fi Mesh Home Trio Pack AX3000 combines Mesh technology with the powerful Wi-Fi 6 MU-MIMO standard for ultimate speed and coverage at home. This package of 3 ATRIA Mesh AX3000 replaces your current Wi-Fi network without changing your modem or router. It brings a super-fast and seamless roaming Wi-Fi network at a speed up to 3000 Mbit/s with coverage up to 300 m². Depending on the size of your house, you can add up to 3x additional ATRIA Mesh AX3000 (up to 6x ATRIA Mesh AX3000 cover an area of up to 600 m²).

Technical specifications

WI-FI

Frequency
2412 MHz-2462 MHz & 5180 MHz-5240 MHz & 5250 MHz-5350 MHz & 5470 MHz-5580 MHz

Standards
Wi-Fi 6 - IEEE 802.11ax/ac/n/g/b/a

Signal Rate
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 574 Mbps

Security
WPATM/WPA-PSKTM & WPA2TM/ WPA2-PSKTM& WPA3-SAETM

Antenna
4* Internal Antennas (3dBi)

Transmit Power
Europe: <20 dBm (2.4 GHz),<23 dBm (5 GHz)

Supported Channels
5 GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112
2.4 GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13

HARDWARE

CPU
Dual-core CPU 900MHz

Ethernet Ports
2x 10/100/1000M LAN ports(Auto MDI/MDIX)
1x 10/100/1000M WAN ports(Auto MDI/MDIX)

Buttons
Connect & Secure (WPS), Reset,ON/OFF button

LEDs
Power, Internet, Pairing, 2.4 GHz and 5 GHz Wi-Fi

Power
External power supply, 12 V/2 A DC

Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

SOFTWARE

Multiple SSID
4x2.4 GHz + 4x 5 GHz

Basic Network
DHCP client, IGMP v1/v2, IPv4/v6, WDS, WPS, WMM

Router Features
DHCP server, DNS relay/proxy, NAT/NAPT, IGMP proxy, Firewall, VPN passthrough, DMZ, URL/IP/MAC Filtering, Port Forwarding

UPnP
Universal Plug & Play Internet Gateway Device

Management
TR069/TR098/TR181, Web User Interface, Time Settings, Configuration Backup/Restore, Firmware Upgrade, System Log

ATRIA Mesh app
Android and iOS downloadable app to manage the Wi-Fi Mesh network

MESH Technology
Automatically Organized Network
Intelligent Roaming (client band steering)
Auto Configuration
Seamless Roaming
Auto MESH Routing
User Load Balancing
Auto Healing (Redundancy and Fail-over)

OTHER SPECIFICATIONS

Certification
CE

Package contents
3x ATRIA Mesh AX3000
3x Power Supply Units (12 V/2 A DC)
3x CAT5E Ethernet Cable
1x Installation Instructions, Warranty Card, Safety Instructions

System requirements
Internet Browser

ENVIRONMENT

Operating Temperature
0° C ~ +45° C

Storage temperature
-20° C~+70° C

Operating humidity
10%~90% non-condensing

Storage humidity
10%~90% non-condensing

Dimensions (WxDxH) per unit
12812873 mm

Weight per unit
320 g
