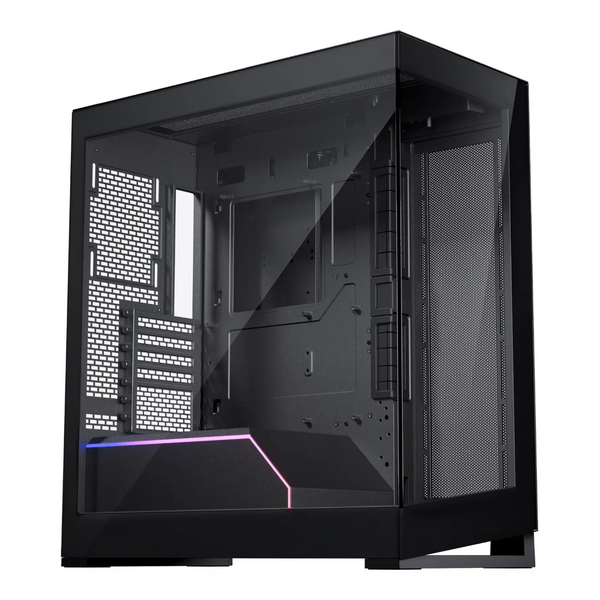

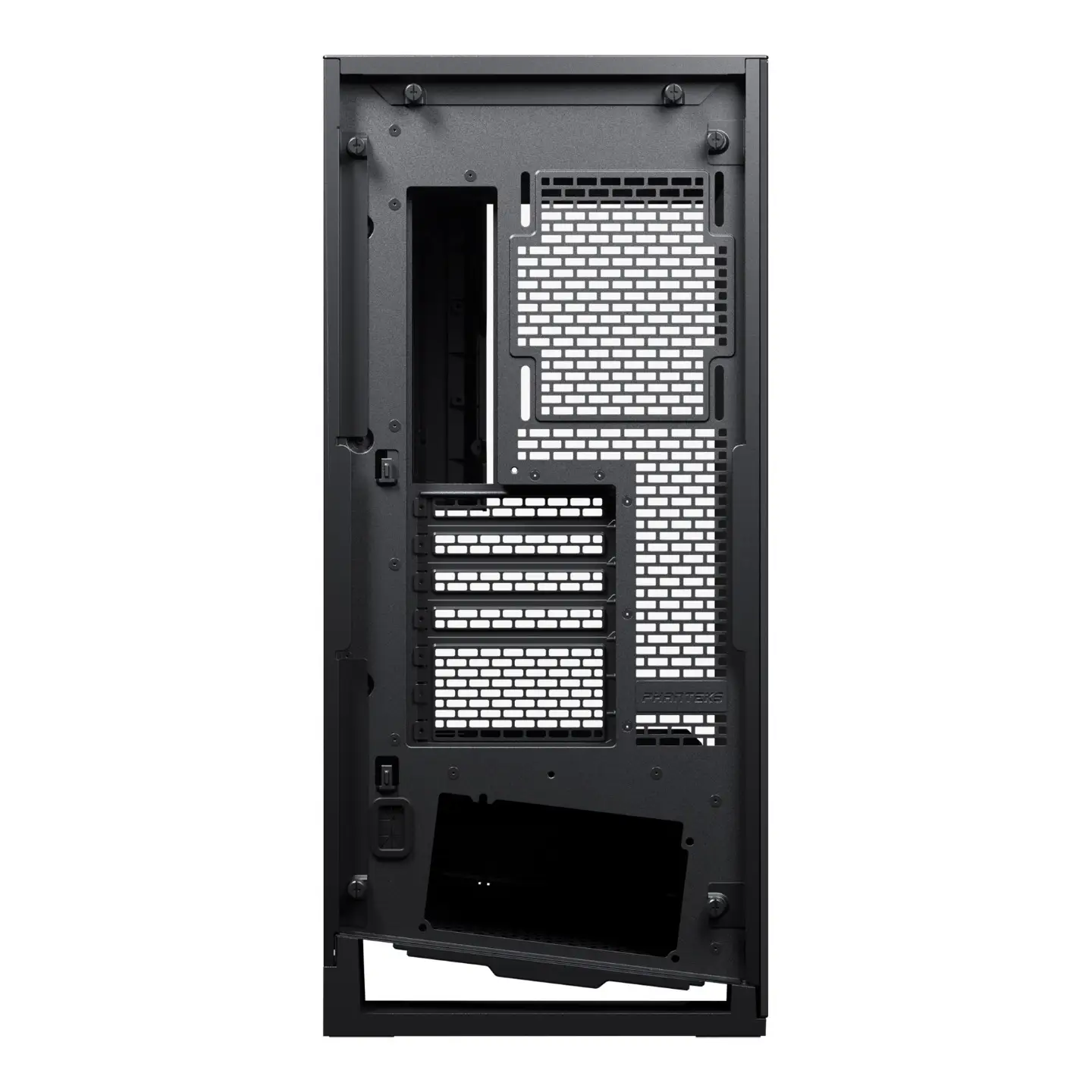

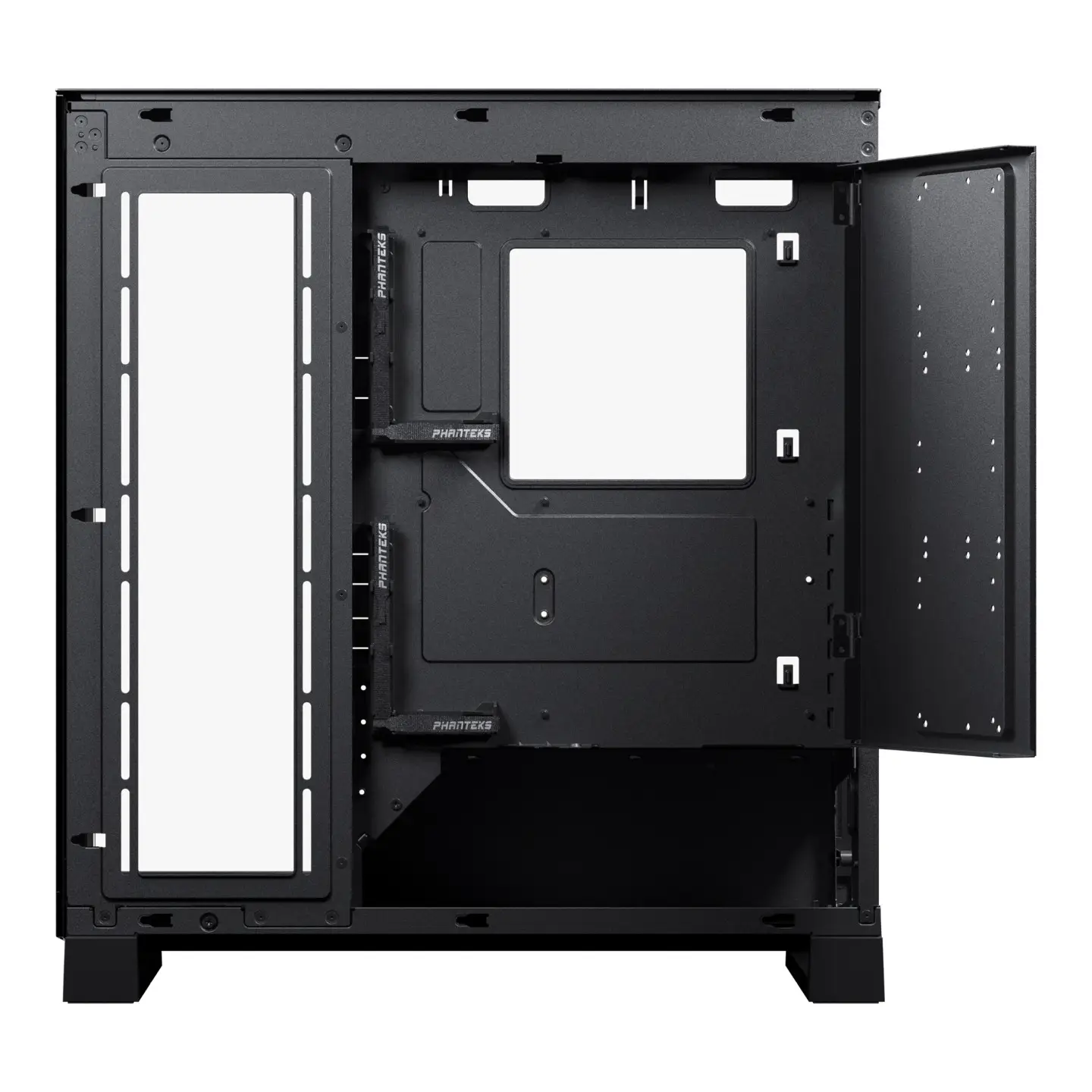

PHANTEKS NV5 Mid-Tower Showcase PC Case – Black, Tempered Glass

Phanteks NV5 Mid-Tower Showcase PC Case – Black, Tempered Glass


Meet the NV5 mid-tower chassis, featuring a stunning near-seamless glass view and support for 8 x 120 mm fans and dedicated space for a 360 radiator in the top and side for optimal cooling. With a dedicated bottom fan for enhanced GPU cooling and spacious interior to accommodate modern GPUs and cables, the NV5 is designed to excel.

Model Number PH-NV523TG_DBK01
Colour Black
Key Features
Near-seamless glass panels
Support wider modern GPUs and 12VHPWR cables
Ultra-fine performance mesh design for high airflow with good dust filtration
A total of eight 120 mm fan positions
Removable PSU cover
Integrated Digital-RGB lighting
GPU support bracket included


Product Dimension (DxWxH)
239 x 477 x 528 mm

Form Factor
Mid Tower
Motherboard Support
ATX, Micro-ATX, Mini-ITX, E-ATX (280mm without GPU support bracket)

Steel Chassis (Tempered Glass)

Front IO
1x USB-C GEN 2
2x USB 3.0
Reset Button
Power Button
D-RGB Color button
D-RGB Mode button

Power Switch
Reset Switch
USB 3.0
USB 3.1 GEN 2
D-RGB expansion
D-RGB Motherboard

5 Years Limited


Package Dimension
632x331x574 mm

Gross Weight

Net Weight


PCI Slots

Internal 3.5” Bay
3 (3x included)

Internal 2.5” Bay
4 (4x included)

Vertical GPU Support
Yes, with optional bracket PH-VGPUKT4.0_03R

Fans & Radiators

Top Fan
3 x 120 mm

Right Side Fan
3 x 120 mm

Rear Fan
1 x 120 mm

Bottom Fan
1x 120 mm

Top Radiator
up to 360

Right side Radiator
up to 360

Rear Radiator

Bottom Radiator


GPU Length
440 mm

GPU Width
170 mm

CPU Cooler Height
180 mm

Power Supply
230 mm

Top 360 radiator
430 x 134 x 62 mm

Side 360 radiator
412 x 130 x 62 mm
