Description

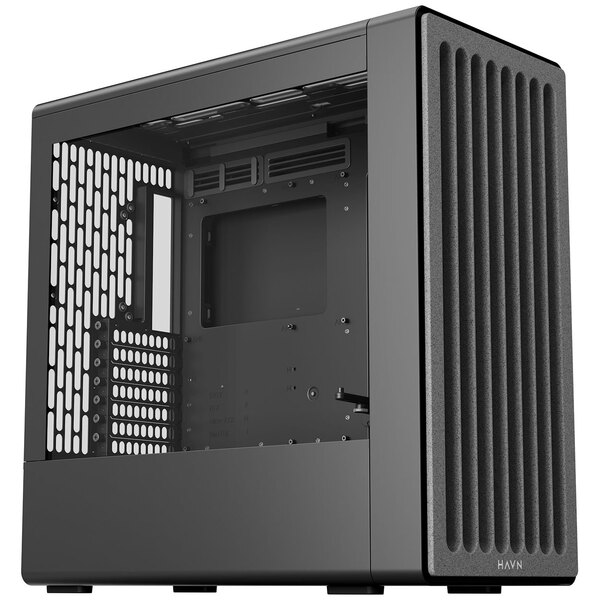

The HAVN BF 360 PC Case will bring minimalist style and full coverage airflow to your gaming PC. Taking the best of the HS 420, this PC case is engineered to provide incredible hardware support while facilitating flexible cooling configurations and optimised thermal performance. There is ample support for both air and water-cooling hardware, with mounts that accommodate 120mm to 180mm fans available. With a classic structure and modern refinements, the HAVN BF 360 will make a great foundation for any gaming PC.
HAVN BF 360 PC Case at a Glance:
Mid-tower PC case with semi-open frame design and tempered glass window
Full coverage airflow and aerodynamic funnelling
Supports up to seven fans (max.)
E-ATX motherboard, 410mm GPU, and ATX PSU support
Compatible with water-cooling hardware
Premium SGCC steel, reinforced in high-stress areas
Who is the HAVN BF 360 PC Case Perfect For?
PC builders with specific fan configuration preferences
Experienced builders looking to experiment
Fans of elegant and minimalist designs
Minimalist Elegance
With sleek modern curves and a classic structure, the HAVN BF 360 PC Case is a stylish and functional addition to your gaming PC build. Manufactured from SGCC steel in a fresh white finish, this mid-tower PC case has been reinforced on the high-stress areas to provide a strong and robust foundation for all your gaming hardware. The U-shaped structure ensures a rigid build, as well as smoother, more convenient assembly.
For a touch of luxury, the front panel has a five-layer stacked slate texture effect.
Full Coverage Airflow

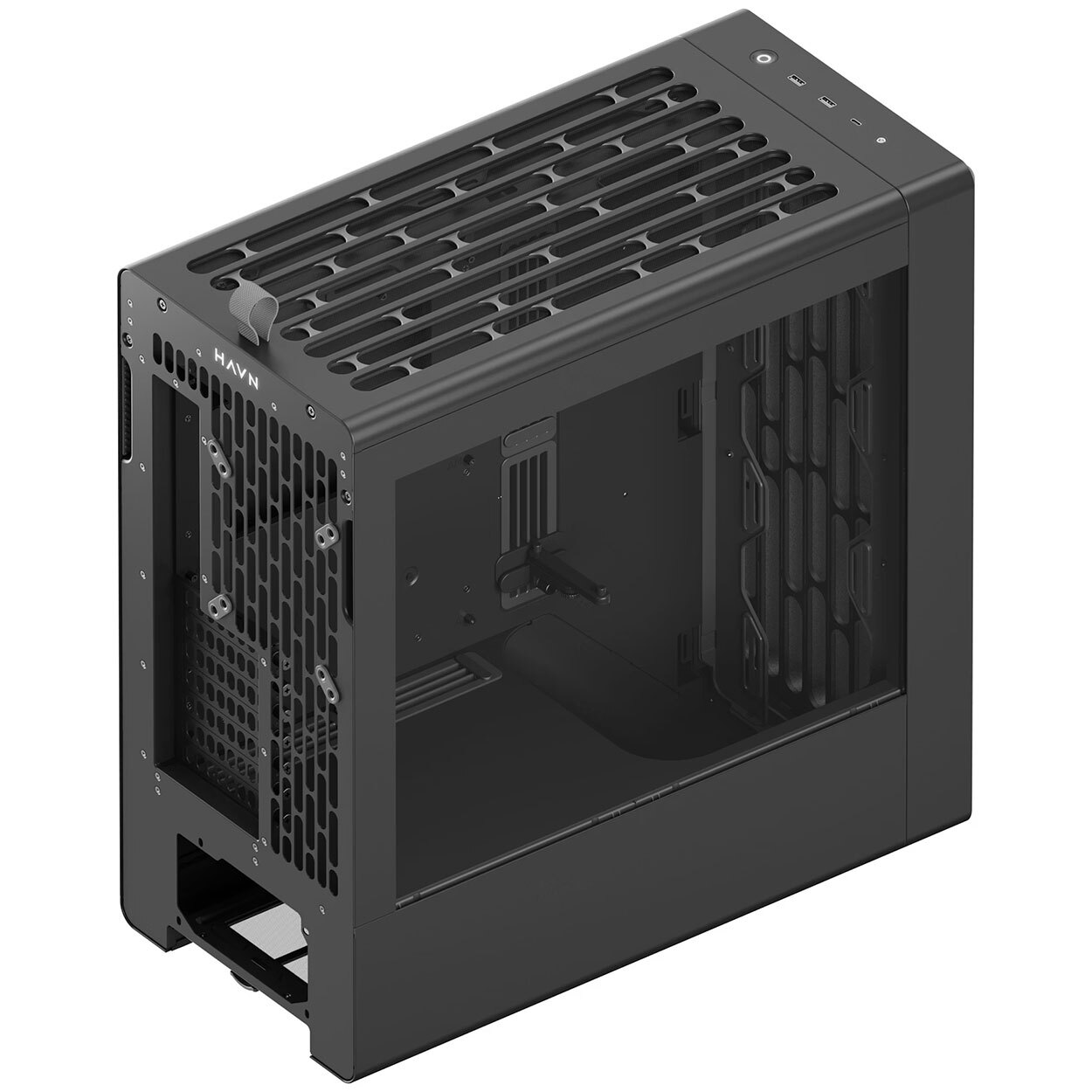

To ensure incredible thermal performance, the HAVN BF 360 PC Case has a semi-open design and provides full coverage airflow with aerodynamic features to effectively funnel air where you need it most. The front, top, and rear panels feature a rib pattern style ventilation, which maximises the airflow at a rate of 315.1CFM and minimises interference. Air is drawn in through the front and directed up a 135° ramp to directly cool your GPU and CPU. Waste heat is exhausted through the top and rear panel, providing incredible thermal efficiency.
Bolstering the natural airflow, the HAVN BF 360 PC Case supports a range of air and water-cooling components. In total, you can instal up to seven fans, with a six channel PWM repeater to streamline control. Fans can be mounted to the front, top, and rear panels, enhancing the thermal aerodynamics. For those who like to experiment with fan configurations, both the front and top panel can support up to two 180mm fans, in addition to more traditional fan sizes. Alternatively, you can mount up to three 120mm/140mm fans at the front, either three 120mm or two 140mm fans on the top, and a single 120mm or 140mm fan on the rear.
For water cooling enthusiasts, there is support for radiator mounting, as well. The front can accommodate a 420mm radiator, while the top fits one up to 360mm. Plus, there is 195mm clearance for CPU coolers and towers, ensuring you can equip your gaming PC with the thermal hardware you need.
Hardware Support

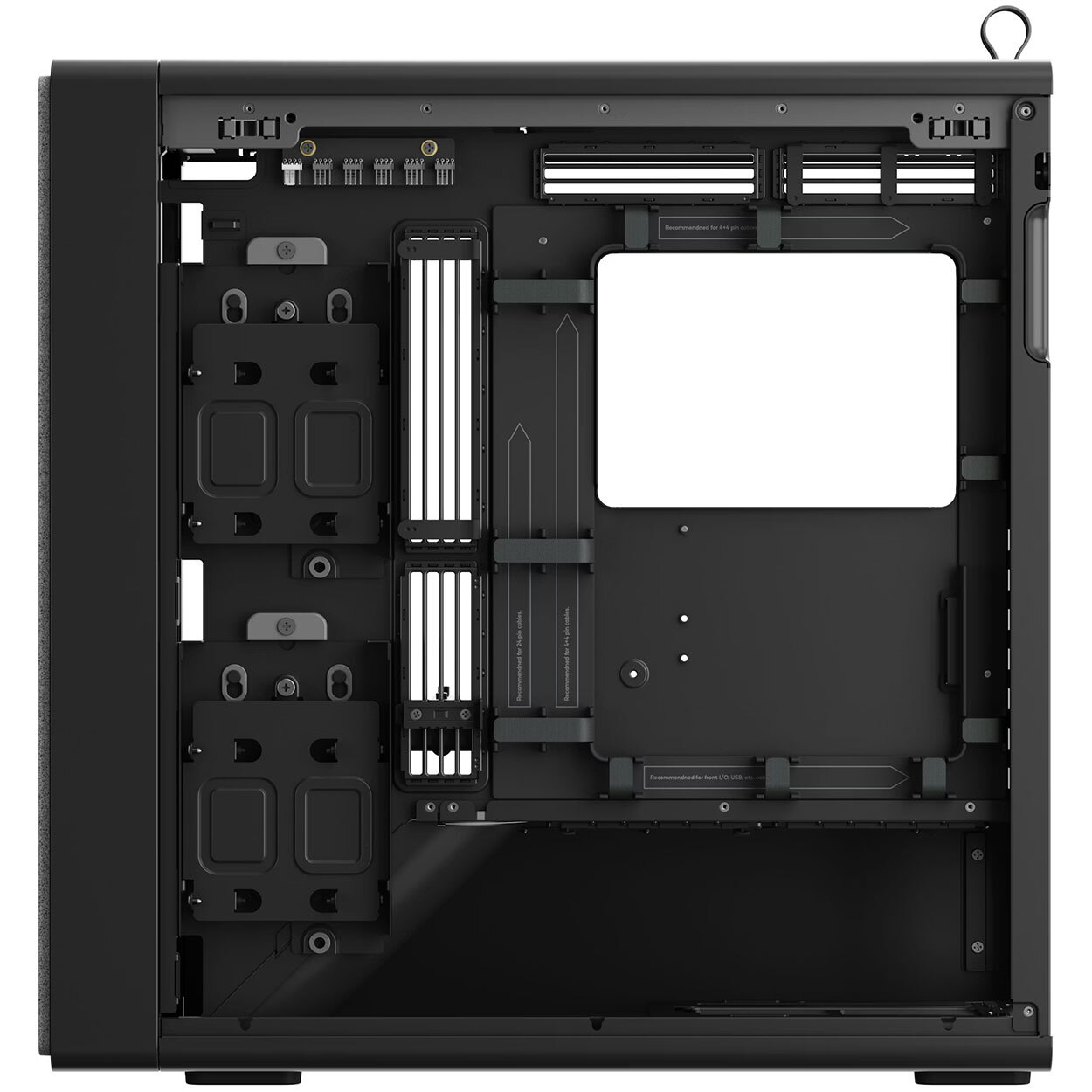

The HAVN BF 360 PC Case has an intelligent internal layout to provide optimal compatibility with the current gaming hardware market. The motherboard tray can support E-ATX (up to 277mm wide, without GPU support bracket), ATX, Micro-ATX, and Mini-ITX motherboards, while the space behind the ramp accommodates an ATX power supply up to 200mm long. For your GPU, there is up to 410mm clearance and an adjustable support bracket. This can be swivelled and configured in height and depth to best support your graphics card.
The storage drive bays mount to the back of the motherboard tray. There are two available, and each can support either one 3.5” HDD or two 2.5” SSDs. This provides great potential for a flexible storage solution, with any combination of HDDs and SDDs to suit your needs.
For easy connectivity, the I/O panel is at the front of the top panel. It features one USB 3.2 Gen 2 Type C port and two USB 3.2 Gen 2 Type A ports, along with HD audio and power.
Innovative Features
To simplify installation and maintenance, the HAVN BF 360 PC Case comes with a range of innovative features. Much like the HS 420, this PC case utilises the SimpliCable routing system, marking ideal routes and the suitable cables. For ease of access, the front and top panels are magnetic, and there is even a pull loop on the top. Plus, the rubberised grooves along the right and left edge make removing panels easy and intuitive.
Many aspects of the HAVN BF 360 PC Case feature vibration isolation. All the fan brackets are vibration dampened to reduce noise, featuring rubber isolation mounts to improve both stability and acoustics. There is even built-in vibration dampening on the storage bays to reduce their operational noise.
Every component of the HAVN BF 360 PC Case has been carefully planned, designed, and executed to ensure ease of use and optimal performance.
Case of the year? Possibly......
Back Connect No
Case Features
I/O position Top
Side panel with window
Vertical GPU Mount No
Adjustable Vertical GPU Bracket No
Front door No
Cable Management Yes
Filters Included Yes
Noise dampening No
Mainboard slide / tray Yes
Transport System No
Colour
Primary Colour See Description
Motherboard Support
Compatible Motherboard Formats E-ATX, ATX, Micro-ATX, Mini-ITX
Max. Motherboard Format E-ATX
Power Supply
PSU included No
PSU Format ATX
Power Supply Position Internal
Expansion Slots
Expansion slots / PCI slots 7
Materials
Materials Plastic, Steel
Features
Housing Feedthrough No
Display
Display Included No
Radiator Support
Radiator/AIO Support (Top) 280mm Radiator, 360mm Radiator
Radiator/AIO Support (Front) 360mm Radiator, 420mm Radiator
Max. Radiator Compatibility 1x Triple (420 mm)
Dimensions
Length / Depth 515 mm
Width 254 mm
Height 522.6 mm
Weight 13.63 kg
Fan Support
Case Fan Support (Front) 120mm Fan (3x), 140mm Fan (3x), 180mm Fan (2x)
Case Fan Support (Rear) 120mm Fan (1x), 140mm Fan (1x)
Case Fan Support (Top) 120mm Fan (3x), 140mm Fan (2x), 180mm Fan (2x)
Max. Number of Fans 7
Lighting
Lighting / RGB No
Fan Header
Fan Controller / Fan Hub No
Mounting
Internal Monitor Mount No
Case VESA Mountable No
Internal Dimensions
Max. CPU Cooler Height 195 mm
Max. GPU Length 410 mm
Max. PSU Length / Depth 200 mm
Product Series
Product Series/Family BF 360
External Ports
Front I/O – USB Type C Ports Total 1
Front I/O – USB Type A Ports Total 2
USB 3.2 (external) Type C 1
USB 3.0 (external) Type A 2
Audio outputs & inputs 1x output + 1x input (3.5 mm jack, 3-pin, TRS)
Additional Contents
Fans Included No
Included fans None
Drive Bays
Max. 2.5 Inch Drives 4
Max. 3.5 Inch Drives 2
Max. 5.25 Inch Drives 0
Hot swap drive bays No
Compliance
Compliance Documents HAVN Case Compliance and Safety
Manufacturer Information Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Responsible Person Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Case
Case Type Mid Tower
Cable Specifications
Riser Cable Included No
Connectivity
Card reader No
