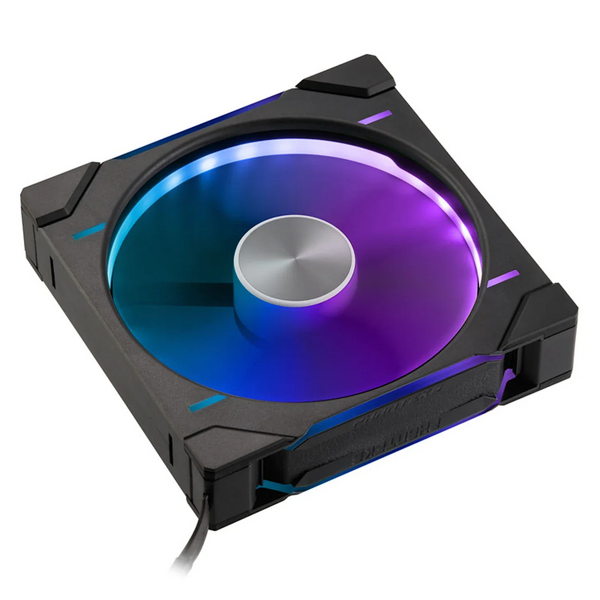

PHANTEKS D30 140mm DRGB PWM Single Fan - Black

Description

Maximise your cooling performance, whilst creating a clean aesthetic for your gaming PC with Phanteks D30 D-RGB fans. These 140mm fans provide outstanding performance, with a maximum airflow of 71.93CFM at a static air pressure of 3.32mmH2O. Alongside providing excellent cooling, D30 fans also boast an innovative daisy chain design that reduces the number of cables within your computer. Control up to four D30 fans simultaneously with a single Y cable, thanks to the proprietary fan clips. These not only connect your fans together into a cluster, but also function as the fans power and data connectors. Alongside these clips, D30 fans also come with screw covers, perfect for hiding mounting points, to create a seamless clean aesthetic. What’s more, these fans are also equipped with D-RGB lighting, including Phanteks HALOS lighting, allowing you to create a visually stunning display.

PHANTEKS D30 140MM D-RGB PWM FAN AT A GLANCE:

- Innovative daisy-chain design
- Clean aesthetic with clips and covers to hide screw holes and bridges
- 30mm thickness provides exceptional performance when coupled with a radiator
- Maximum airflow of 71.93CFM, with a static air pressure of 3.32mmH2O
- Ultra quiet operation at just 32.1dB(A)
I- nnovative RGB with unique HALOS lighting ring

- CLEAN AND POWERFUL
Phanteks D30 fans have been designed to provide exceptional performance alongside offering beautiful aesthetics. The D30 is 30mm thick, which is 5mm thicker than standard case fans. This enables these fans to reach astounding levels of performance. This extra 5mm coupled with the 140mm diameter allows a 140mm D30 fan to function exceptionally, even when mounted against a restrictive surface such as a radiator. In fact, the 140mm D30 fans can produce an astounding airflow of 71.93CFM at a static pressure of 3.32mmH20, whilst still being whisper quiet generating just 29.5dB(A) of noise.

The 140mm D30 fans feature the fantastic daisy chain design seen on the 120mm fans. This means they are perfect for reducing cable clutter in your gaming PC. With a single Y cable, you can control all aspects of operation on up to four fans in a single cluster. This is accomplished using a proprietary clip design. Each fan has contact pads on the corners of its frame, which connect the fans physically and electronically. Each clip contains a bridge which links the contact pads of two fans together. To complete the clean aesthetic, the D30 fans come with a range of screw covers that can easily be clipped into place covering the mounting positions.

- COMBINED RGB
Phanteks D30 fans look fantastic from any angle, thanks to their vivid RGB lighting. To achieve the fantastic RGB effects, Phanteks has utilised their HALOS lighting technology. This stylish design places a ring of LEDs around the edge of the blades. The light produced by these LEDs is then reflected off the fan blades for a brighter and smoother effect than standard RGB lighting. Furthermore, the D30 also includes several light diffusers around the frame of the fan which captures the light produced by the HALOS LEDs for a unified effect, which can be chained over multiple fans.

The Phanteks D30 fans’ RGB lighting is easy to control, as they utilise a standard 3-pin JST connector. Thanks to this ubiquitous connection, you can connect your D30 fans to any Phanteks D-RGB products, such as controllers and cases. A physical remote allows you to control all aspects of your RGB lighting such as colour, lighting effects, and speed with a few button presses. Alternatively, the 3-pin connector also allows you to connect the D30 fans to your motherboard, for software control with popular options including ASUS Aura Sync, MSI Mystic Light, and Gigabyte RGB Fusion.

- PHANTEKS D30 D-RGB PWM FAN SPECIFICATIONS:
Colour    Black Frame / White Blades
Dimensions    140mm x 140mm x 30mm (WxHxD)
Speed    250 - 2000 + 10% RPM
Airflow    71.93CFM
Static Pressure    3.32mmH2O
Noise    29.5dB(A)
Fan Power Draw    0.15A
D-RGB Power Draw    0.45A
Connectors    4-pin PWM
3-pin JST, daisy-chain
Cable Length    PWM
600mm
D-RGB 500 + 100mm, daisy chain
Package Contents    1 x D30 140mm fan
1 x Corner Clip Cable
1 x Bridge Clip Connector
3 x Corner Clip
1 x Bridge Clip
2 x Bridge Screw Cover
2 x Left Corner Screw Cover
2 x Right Corner Screw Cover
4 x Fan Screws
4 x Radiator Screws
D-RGB Motherboard Adapter
RGB    D-RGB
Specifications
expand_less
Fan Specifications
Fan Size    140 mm
Fan mounting size    140 mm
Min. Fan RPM    250 rpm
Max. Fan RPM    2000 rpm
Max. Single Fan Airflow    122.2 m³/h
Min. Static Pressure    0.045 mH2O
Max. Static Pressure    0.329 mH2O
Colour
Primary Colour    Black
Secondary Colour    White
Fan main colour (cage)    Black
Set
Set    No
Dimensions
Length    140 mm
Width    140 mm
Fan height    30 mm
Materials
Materials    Plastic, Rubber
Lighting
Lighting    Yes
Lighting Colour    RGB
Noise
Max. Single Fan Noise dB(A)    29.5 dB(A)
Power Specifications
Rated voltage    12 V
Internal Ports
Fan connectors    3 Pin, 4 Pin (PWM)
RGB / LED connectors    1x Digital RGB PHANTEKS (3-Pin 5VDG)
