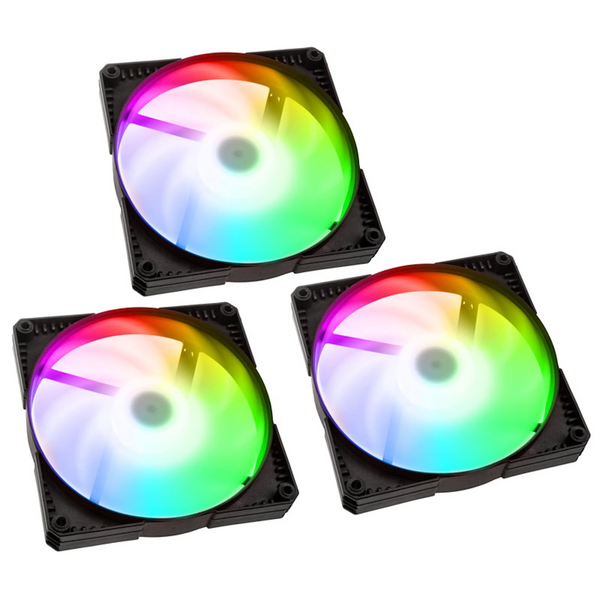

PHANTEKS SK140 Black DRGB PWM Fan - 140mm Triple Pack

Phanteks SK140 Black DRGB PWM Fan - 140mm Triple Pack


The Phanteks SK PWM D-RGB 140mm fan has a stylish, sleek look and has been optimised for airflow thanks to its nine blade design. The fans in this triple pack will complement the Eclipse line of PC cases in particular, but they are also ideal for anyone looking for fans that are both aesthetically impressive and solidly constructed.

These D-RGB models feature 12 integrated LEDs and it is possible to `daisy chain` them so that illumination effects are synced. The fans can be control by motherboard D-RGB adapter.

As PWM fans (Pulse-Width Modulation) their rotation speed can be user controlled by connecting the fan to a compatible motherboard or Phanteks controller. As a result, users can choose whether they hey want the fan to run quietly or have enhanced airflow. Rubber dampeners, included with the fan, help further reduce fan noise.

x3 - 140mm PWM fan
Nine blade design optimised for air flow
Rubber dampeners for stability and quiet operation
Ideal for use with the Phanteks Eclipse PC cases
Motherboard D-RGB adapter and splitter cable included


No Fans in package: 3
Fan Dimension (WxHxD): 140 mm x 140 mm x 25 mm / 4.72 in x 4.72 in x 0.98 in
Bearing Type: Rifle bearing
Blade Geometry: Nine Blades Design (matte white)
Rated Voltage: DC 12V
Operating Voltage Range: 4 ~13V
PWM: Yes
Rated Current (Ampere): 100% 0.15A ±0.02
Locked Curent: Brake Protection
Power Consumption: 2.64W +10% Max
Speed: 500 ~1500 +5 /-10% RPM
Max. Airflow: 84.5 CFM (ft3/min)
Max. Air Pressure: 1.23 mm H2O
Noise Level: 36 dB(A)
Fan Connector: 4 Pin PWM
Cable Length: 550 mm / 21.65 in
D-RGB Connector: 3 Pin D-RGB Daisy-Chain Connectors
D-RGB Cable Length: 300+100 mm / 11.8+3.9 in
LED Number: 12 (D-RGB)
LED Rated Voltage: DC 5V (+5V/D/GND)
LED Rated Current: Max 0.36A ±0.04
MTBF: 40 000 / hrs
Weight: 198.2g

Product Number: 100119240
Product Code: PH-F140SK_DRGB_PWM_3P

3 In stock
Available for Contactless Collection*
Available for Home Delivery

£34.99inc vat
£29.16ex vat
