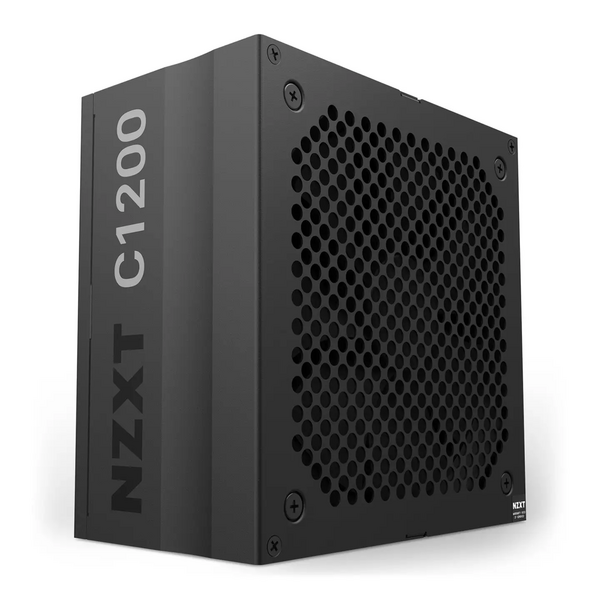

NZXT C-Series C1200 V2 Gold PSU 1200W Modular ATX 3.0 Power Supply

Description

Utilizing the ATX v3.0 power standard, the NZXT C1200 Gold pumps up to 600 watts of power to NVIDIA 40-series graphics cards over a single cable while maintaining highly efficient, low-noise performance.

Output Connectors
24-pin ATX power: 1
4+4-pin CPU power: 1
8-pin CPU Cable: 1
6+2-pin PCIe power: 2
16-pin (12+4) 12VHPWR PCIe Cable: 1
SATA power: 8
Peripherals: 4

Cable Specs
24-pin ATX power: 600 mm, Nylon sleeving
4+4-pin CPU power: 700 mm, Nylon sleeving
8-Pin CPU Power Cable: 700mm, Nylon sleeving
6+2-pin PCIe power: 650 + 150 mm, Nylon sleeving
16-Pin (12+4) 12VHPWR PCIe Cable: 650mm, Nylon sleeving
SATA power: 500 + 150 mm
Peripherals: 500 + 150 mm

AC Input Rating
100 - 240Vac:14A-7A 50Hz-60Hz

DC Output Rating
+3.3V and +5V: 22A (120W)
+12V: 100A (1200W)
-12V: 0.3A (3.6W)
5Vsb: 3A (15W)
Total: 1200W

Operation
PF Correction: Active @0.96
MTBF: 100,000 hours
Temperature: 0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C)

Energy Efficiency
Rating: 80 Plus Gold
20% loading: 87.5% @115Vac
50% loading: 90.5% @115Vac
100% loading: 87.5% @115Vac

Fan Specs
Dimensions: 135 x 135 x 25 mm
Speed: 0-2300 ± 10% RPM
Airflow: 93.02 CFM (Tpy.)
Noise: 44.5 dBA max
Bearing: Fluid Dynamic Bearing (FDB)

General
Dimensions: 150 x 150 x 86mm
Material(s): Steel, PCB and Plastic
Compliance Standard: ATX12V v3.0 / EPS12V v2.92
Regulation & Certification: cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA
Warranty: 10 years
