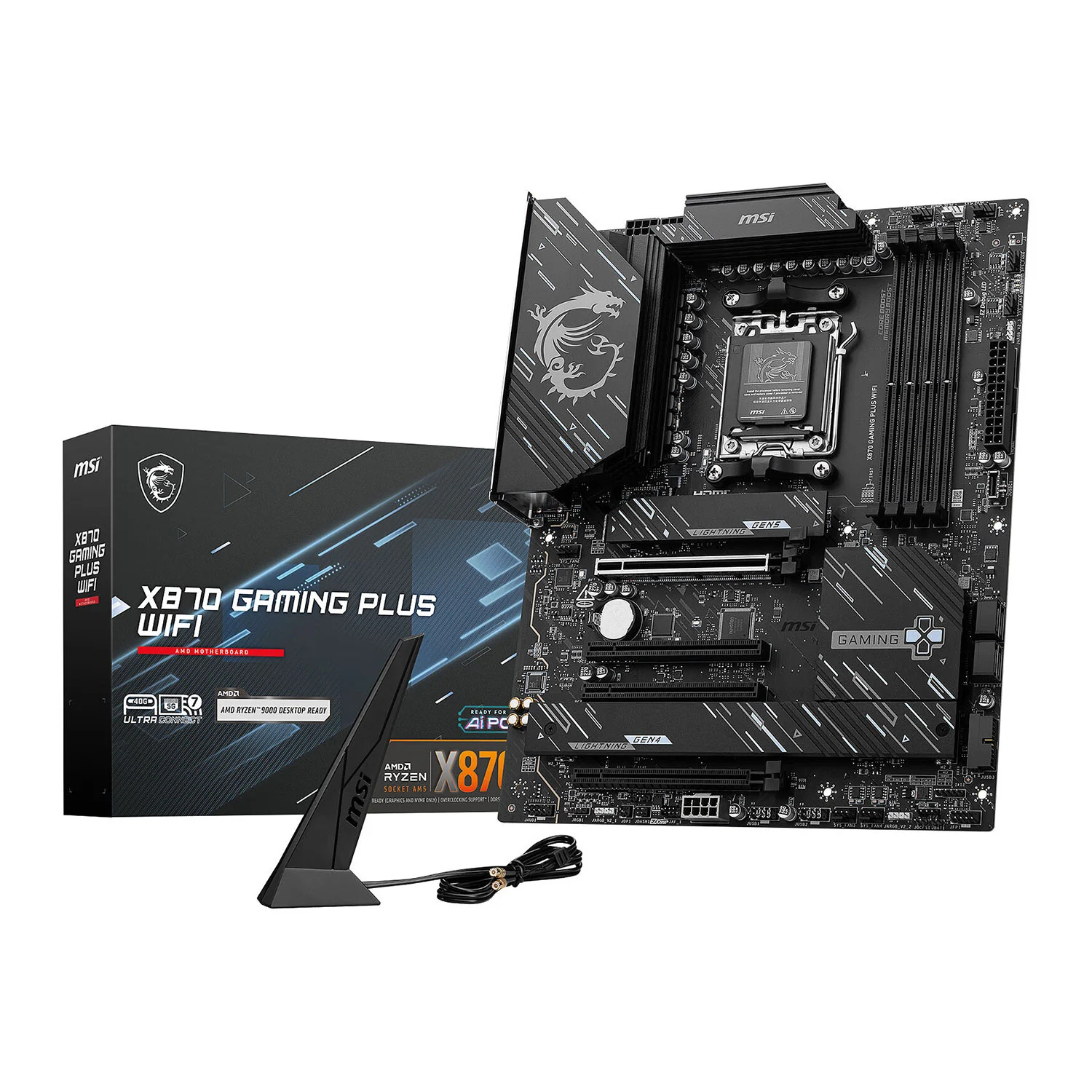

MSI X870 GAMING PLUS WIFI AM5 Motherboard

Description

- Ready For the 9000 Series

The X870 GAMING PLUS WIFI offers a stark matte scheme with geometric etchings - blending into black cases, and contrasting nicely with white ones. Developed to unlock the full gaming potential of the AMD X870 chipset and brand-new 9000 series processors by combining elite hardware and premium durability, the X870 GAMING PLUS WIFI boasts an enhanced 14+2+1 phase power design, M.2 PCIe 5.0 slot, outstanding cooling combining MSI exclusive technologies with Frozr AI cooling, 5G LAN, WIFI 7 connectivity and Lightning Gen5 PCIe support to help you get maximum performance straight from your CPU.

Specifications

Form Factor
Motherboard formfactor ATX
Lighting
Lighting / RGB Yes
Back Connect
Back Connect No
Wi-Fi & LAN
LAN Yes
LAN Ports 1x 5 Gbit/s
LAN Chip Realtek 8126VB
Wi-Fi / Bluetooth Yes
Wi-Fi Standard Wi-Fi 7
Bluetooth Standard 5.4
Motherboard
Motherboard Chipset AMD X870
Built-In I/O Shield Yes
Dimensions
Length / Depth 305 mm
Width 243.48 mm
CPU
CPU Manufacturer AMD
CPU Socket AM5
External Ports
USB4 Gen 2x2 (external) Type C 1
USB 3.2 (external) Type C 1
USB 3.1 (external) Type A 2
USB 3.0 (external) Type A 2
USB 2.0 (external) Type A 4
Display Connectors HDMI (1x)
Expansion Slots
PCIe x16 slots (total) 1
PCIe x4 slots (total) 1
PCIe x1 slots (total) 2
PCIe 5.0 x16 mechanical slot 1
PCIe 4.0 x4 mechanical slot 1
PCIe 3.0 x1 mechanical slot 2
Memory
Max. Memory 256 GB
Memory Type DDR5
Memory Form Factor DIMM
Max. Memory Speed (Standard) 5600 MT/s
Max. Memory Speed (OC) 8200 MT/s
EEC Support Yes
Memory slots 4x
Performance Profile AMD EXPO
Fan Header
4 Pin Fan Connectors 8
Internal Ports
CPU Power Supply 2x 8-Pin
USB 3.0 / 3.1 / 3.2 (internal) Type C Header 1
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports 1
USB 3.0 (internal) Header 1
USB 3.0 (internal) Possible Ports 2
USB 2.0 (internal) Header 2
USB 2.0 (internal) Possible Ports 4
RGB / LED connectors 1x RGB (4-Pin 505
