MSI MPG X870E Carbon WiFi AM5 DDR5 PCIe 5.0 ATX Motherboard

Description

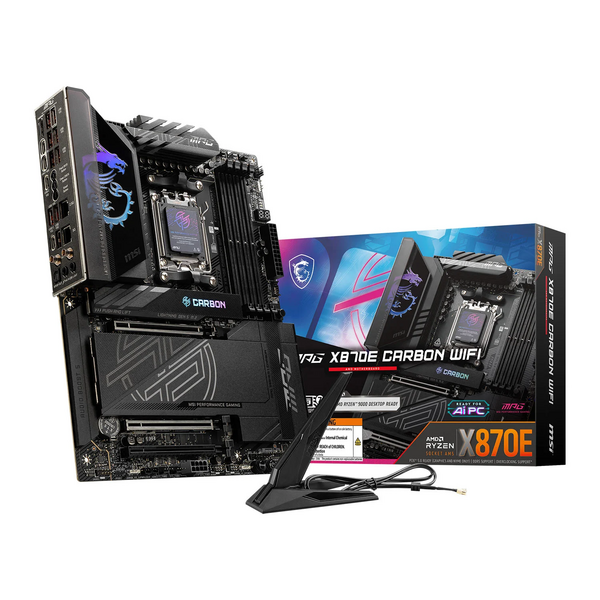

MPG X870E Carbon WiFi
The MSI MPG X870E Carbon WiFi employs a stunning carbon black colour scheme, adorned with mystic light RGB lighting. Designed to push the boundaries of modern-day performance with support for the latest AMD 9000/8000/7000 series processors and the renowned AM5 platform. This motherboard boasts PCIe 5.0 support, high-performance DDR5 memory, Wi-Fi 7 connectivity, a robust 18+2+1 duet rail power system, and an impressive thermal management design to help you squeeze every ounce of performance from the latest AI-Ready CPUs.

18+2+1 Duet Rail Power System
Unleash and sustain maximum performance with a flagship VRM design built with an impressive 18+2+1 Duet Rail Power System. Combining dual power connectors and 110A Smart Power Stages, MPG X870E Carbon WiFi is ready for the challenge of the latest high-end processors.

Support for High-Performance DDR5 Memory
DDR5 memory represents a significant advancement in DDR performance. The MSI Memory Boost technology along with the specialised SMT welding process enable the MPG X870E CARBON WIFI to provide top-notch memory performance.

Frozr Guard Thermal Solution
The MPG X870E Carbon WiFi has been designed to keep performance high and temperatures low. The Frozr Guard thermal solution consists of extended heatsinks, performance thermal pads, direct touch cooling, dedicated M.2 cooling, and an enlarged PCH heatsink.

WiFi 7 - A Next Generation Solution
The newest wireless technology, Wi-Fi 7, makes several advancements to accommodate the increasing traffic volume and number of wireless devices.

Fast and Future Ready Storage
The MSI MPG Series is built to support the latest storage standards, allowing users to feel confident connecting ultra-fast storage devices.

PCIe Gen 5.0 Support
With a theoretical bandwidth of up to 128GB/S, PCIe gen 5.0 offers roughly twice the bandwidth of the previous generation.

MSI Mystic Light
Splash on a little bit of colour and style, MSI center and MSI Mystic light are filled with customisation options to help you stand out.


Features
• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
• Ultra Performance: 18+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
• Ultra Connect: USB4 and 5G LAN + 2.5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Model Name: MPG X870E CARBON WIFI
CPU Support: Supports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors
CPU Socket: AMD Socket AM5
Chipset: AMD X870E Chipset
Expansion Slots:
2x PCIe 5.0 x16 slots
1x PCIe 4.0 x16 slot
Display Interface: Supports 8K@60Hz as specified in HDMI™ 2.1 FRL, 2x USB4 ports support USB Type-C display outputs - Requires Processor Graphics
Memory Support: 4 DIMMs, Dual Channel DDR5
Storage:
2x M.2 Gen5 x4 128Gbps slots
2x M.2 Gen4 x4 64Gbps slots
4x SATA 6Gbps ports

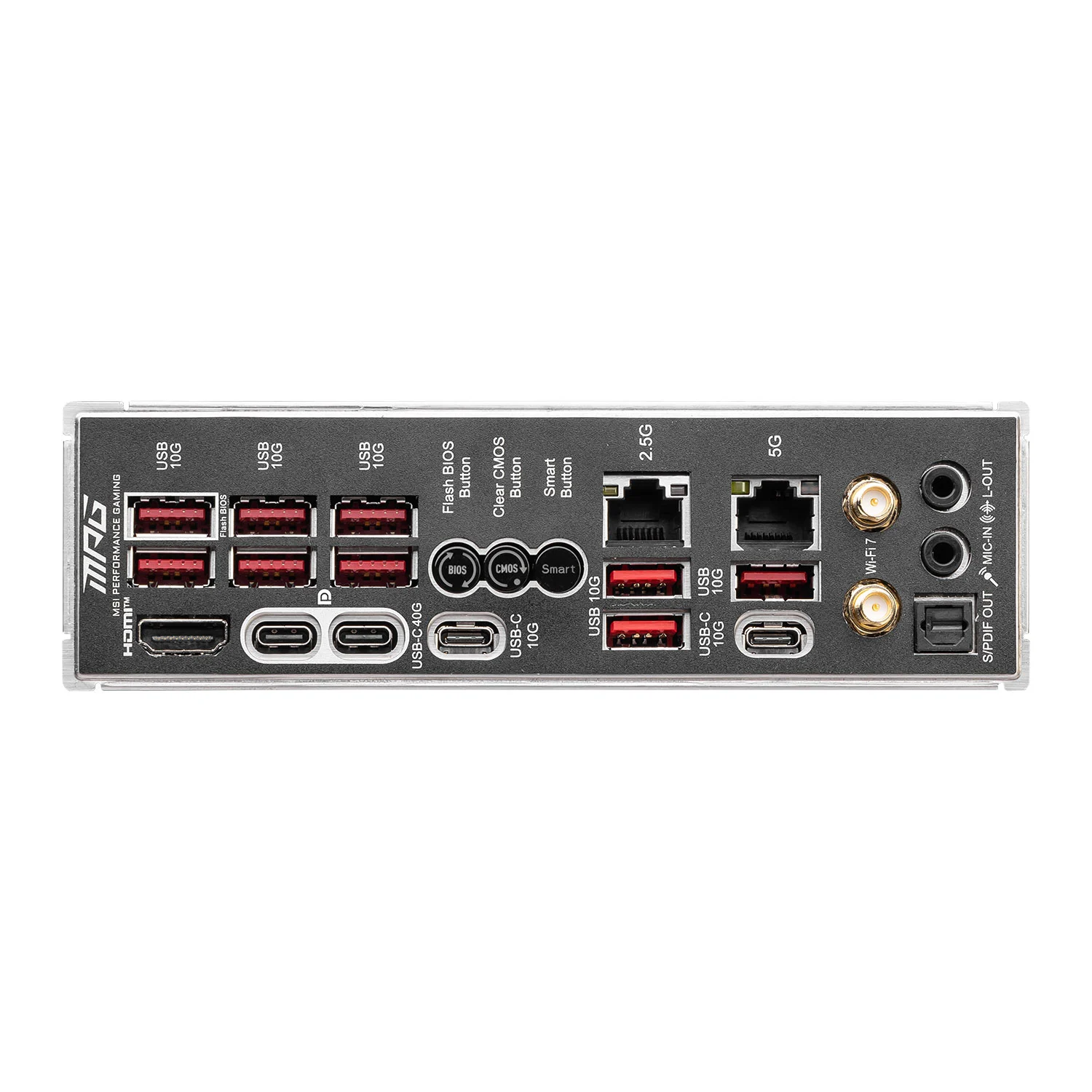

USB Ports:
2x USB 40Gbps (2 Type-C)
1x USB 20Gbps (1 Type-C)
11x USB 10Gbps (2 Type-C + 9 Type-A)
4x USB 5Gbps (4 Type-A)
4x USB 2.0 Type-A
LAN:
Realtek 5Gbps LAN
Realtek 2.5Gbps LAN
Wireless / Bluetooth: Wi-Fi 7 Solution, Bluetooth 5.4
Audio: 8-Channel (7.1) HD Audio with Audio Boost 5
Specifications
expand_less
Wi-Fi & LAN
LAN    Yes
LAN Ports    1x 2.5 Gbit/s, 1x 5 Gbit/s
Wi-Fi / Bluetooth    Yes
Form Factor
Motherboard formfactor    ATX
Motherboard
Motherboard Chipset    AMD X870E
Product series
Product Series/Family    MPG
CPU
CPU Manufacturer    AMD
CPU Socket    AM5
Fan Header
4 pin fan connectors    7
Lighting
Lighting    Yes
Colour
Primary Colour    Black
Internal Ports
CPU Power Supply    2x 8-Pin
Memory
Memory Type    DDR5
Memory Form Factor    DIMM
Memory slots    4x
