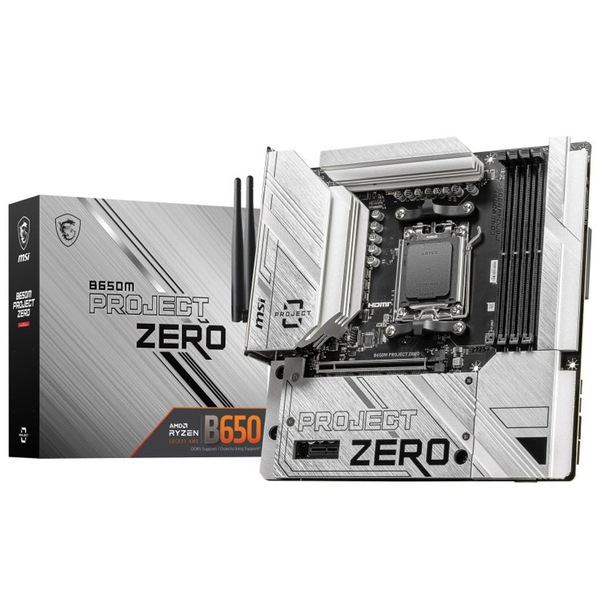

MSI B650M PROJECT ZERO DDR5 AM5 Micro ATX Motherboard

Description

The MSI B650M PROJECT ZERO is a high-performance motherboard designed for gamers and professionals. With DDR5 memory support, AMD AM5 socket compatibility, and a back-connect MicroATX form factor, this motherboard offers exceptional performance and expandability. Featuring advanced connectivity options, including USB 3.2 and PCIe 4.0, this motherboard is ideal for demanding tasks. Its sleek design and MSI`s renowned build quality make it a standout choice for anyone looking to build a powerful and reliable PC. Whether you`re a gaming enthusiast or a content creator, this motherboard is sure to meet your needs and exceed your expectations. Upgrade to the future of computing with the MSI B650M PROJECT ZERO.

CPU
Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
Socket AM5

MEMORY
4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7600+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

ONBOARD GRAPHICS
1x HDMI™
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT
1x PCI-E x16 slot
• Supports x16 (For Ryzen™ 7000 Series processors)
• Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
• Supports x4 (For Ryzen™ 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

STORAGE
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
• M2_2 suppo
