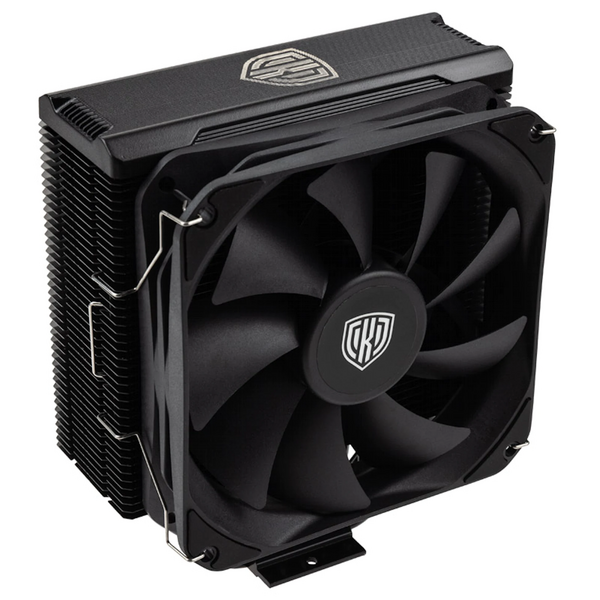

KOLINK Umbra EX180 Black Edition CPU Cooler - 120mm

Description

The Kolink Umbra EX-180 CPU cooler is a powerful compact air cooler suitable for small form factor, high-end builds. You can utilise this cooler with a wide range of CPU sockets, including Intel LGA 1700, as well as AMD AM4 and AM5. This cooler features four highly efficient 6mm sintered copper heat pipes, that make direct contact with the CPU for optimal heat transfer. Utilising a black electrophoresis coating, the Umbra EX-180 is able to look stylish while not impeding heat dissipation. Furthermore, Kolink has included a powerful yet whisper quiet 120mm fan.

Kolink Umbra EX-180 CPU Cooler at a Glance:
Single tower design CPU air cooler
TDP of 180W
Four 6mm sintered copper heat pipes
Included whisper quiet 120mm fan
Black Electrophoresis Coating for improved heat dissipation
Compatible with a range of Intel and AMD sockets, including LGA 1700 and AM5
Efficient Cooling
The Kolink Umbra EX-180 CPU cooler is a highly efficient thermal solution that utilises a compact design. The cooler is an ideal choice for the enthusiast building a small form factor gaming PC. Measuring just 157mm high, and 75mm wide, the EX-180 shouldn't interfere with your RAM modules. Although the cooler is small, the EX-180 is exceptionally good at keeping your CPU within thermal limits, thanks to its 180W TDP cooling performance. To achieve this outstanding feat, Kolink has utilised several innovations. The four 6mm sintered copper heat pipes make direct contact with the IHS of the CPU. This aids in rapidly transferring the thermal energy away from the CPU. This heat is then dissipated along the fin stack, made up of 0.3mm thick aluminium fins, where it is efficiently radiated into the surrounding air.

Silent Running
The Kolink Umbra EX-180 features a powerful yet quiet 120mm PWM fan. This fan can reach speeds ranging from 800 to 1800RPM. By utilising an innovative blade design, this fan is able to produce an impressive air flow of 73.6CFM, with a static pressure of 2.12mmH2O. Alongside these capabilities, this fan is whisper quiet, producing just 28.6dB(A) at max power. Kolink has managed to achieve this impressive performance through innovations including anti-vibration pads and hydraulic bearings.

Kolink Umbra EX-180 CPU Cooler Specifications:
TDP    180W
Colour    Black
Dimensions    130mm x 75mm x 157mm (LxWxH)
Materials    Aluminium
Copper
CPU Compatibility    Intel
LGA 1700/1200/20XX/115X
AMD
AM4/AM5
Heat Pipes    4 x 6mm sintered
Included Fans    1 x 120mm
Fan Bearing    Hydralic
Fan Speed    800~1800RPM (PWM) ±10%
Max Air Flow    73.6CFM
Max Static Pressure    2.12mmH2O
Noise    28.6dB(A)
Coating Process    Electrophoresis
Weight    500g
RGB    No
Specifications
expand_less
Cooler Specifications
Number of heatpipes    4
Heatpipe diameter    6 mm
Ventilation type    active
Additional fans possible    No
Colour
Primary Colour    Black
Fan main colour (cage)    Black
Type
CPU Cooler Type    Single Tower
Thermal Specifications
Max. TDP    180 W
Materials
Materials    Aluminium, Copper
Base plate material    Aluminium
Heat sink material    Aluminium
Additional Contents
Included fans    1x 120 mm
Lighting
Lighting    No
Dimensions
Length    130 mm
Width    75 mm
Depth    75 mm
Height    157 mm
Weight    500 g
Product series
Product Series/Family    Umbra
Fan Specifications
Min. Fan RPM    800 rpm
Max. Fan RPM    1800 rpm
Max. Single Fan Airflow    125 m³/h
Max. Static Pressure    2.12 mH2O
CPU
CPU Socket    1700, 2011, 2011-V3, 2066, AM4, AM5
Noise
Max. Single Fan Noise dB(A)    28.6 dB(A)
Internal Ports
Fan connectors    4 Pin (PWM)
