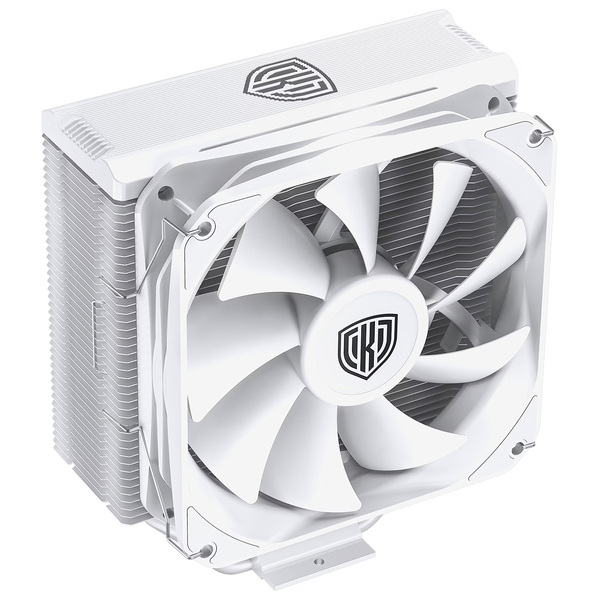

KOLINK Umbra EX180 White Edition CPU Cooler - 120mm

Description

The Kolink Umbra EX180 White Edition CPU Cooler is the perfect thermal solution for your all-white build. The white coating covers the fan blades, frame, and heatsinks, for a truly stunning finish. With its 180W TDP and compatibility with both AMD and Intel processors, this CPU cooler is primed for mid-tier gaming PCs. Plus, the 157mm height ensures it will fit within an extensive range of PC cases. More than just its good looks, the Kolink Umbra EX180 White Edition has been optimised to deliver efficient cooling throughout your gaming sessions.

Kolink Umbra EX180 White Edition CPU Cooler at a Glance:
True White Edition CPU cooler with white coating on fan blades, frame, and heatsinks
120mm PWM fan operating up to 1800RPM
73.6CFM airflow and 2.12mmH2O static pressure
Four 6mm copper heat pipes for effective dissipation
Whisper-quiet at just 28.6dB(A)
180W TDP and compatible with both AMD and Intel CPUs
True White Edition
The Kolink Umbra EX180 White Edition CPU Cooler is a stylish and truly all-white device. The fan blades, frame, and heatsink have all been treated with a white coating, leaving no silver metalwork in sight! As such, it will seamlessly integrate into any all-white build.

There are two models available, you can choose between a standard PWM fan or a PWM/ARGB fan. This is the standard White Edition EX180.

Efficient Cooling
The Kolink Umbra EX180 White Edition has been optimised for efficient cooling, especially for mid-range CPUs. The total TDP it can handle is 180W, providing plenty of headroom for mainstream processors. There are four 6mm copper heat pipes that effectively draw heat away from the CPU, thanks to the copper’s conductive properties.

This is paired with a 120mm PWM fan with a fluid dynamic bearing. The PWM control allows you to adjust the fan speeds between 800 and 1800RPM, to best suit current load, whilst the FDB ensures durability and longevity for the overall product. The fan can product 73.6CFM of airflow at a static pressure of 2.12mmH2O, providing outstanding cooling. Better yet, it operates at just 28.6dB(A) for whisper-quiet performance.

Extensive Compatibility
For enhanced compatibility, the Kolink Umbra EX180 White Edition CPU Cooler is only 157mm tall and can be used with both AMD and Intel CPUs. Without the need for an aftermarket bracket, this cooler can be mounted on AM5 or LGA 1700 sockets and is secured in place with screws rather than clips. This ensures it will stand fast. Clear instructions are included within the scope of delivery, making this CPU cooler easy to install.

The Kolink Umbra EX180 White Edition can be used with the following sockets:

Intel LGA 1700 / 1200 / 20XX / 115X
AMD AM5 / AM4


Kolink Umbra EX-180 CPU Cooler Specifications:
TDP    180W
Colour    White
Dimensions    130mm x 75mm x 157mm (LxWxH)
Materials    Aluminium
Copper
CPU Compatibility    Intel
LGA 1700/1200/20XX/115X
AMD
AM4/AM5
Heat Pipes    4 x 6mm sintered
Included Fans    1 x 120mm
Fan Bearing    Hydraulic
Fan Speed    800~1800RPM (PWM) ±10%
Max Air Flow    73.6CFM
Max Static Pressure    2.12mmH2O
Noise    28.6dB(A)
Coating Process    Electrophoresis
Weight    500g
RGB    Yes
Specifications
expand_less
Cooler Specifications
Number of heatpipes    4
Heatpipe diameter    6 mm
Colour
Primary Colour    Black
Fan main colour (cage)    Black
Fan main colour (rotor)    White
Product series
Product Series/Family    Umbra
Lighting
Lighting    Yes
Lighting Colour    RGB
Thermal Specifications
Max. TDP    180 W
Type
CPU Cooler Type    Single Tower
Additional Contents
Included fans    1x 120 mm
Dimensions
Length    130 mm
Width    75 mm
Height    157 mm
Weight    500 g
Materials
Materials    Aluminium, Copper
Fan Specifications
Min. Fan RPM    800 rpm
Max. Fan RPM    1800 rpm
Max. Static Pressure    2.12 mH2O
CPU
CPU Socket    1700, AM4, AM5
Noise
Max. Single Fan Noise dB(A)    28.6 dB(A)
Internal Ports
RGB / LED connectors    1x Digital RGB (3-Pin 5VDG)
