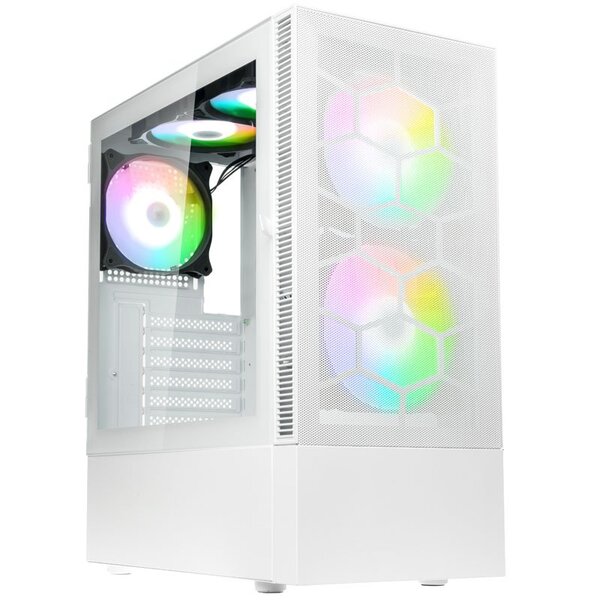

KOLINK Observatory MX (ALL WHITE) Mesh ARGB Midi Tower Case

Description

House your gaming PC in something bold with the Kolink Observatory MX Series PC Case. The dual-tone colouring, half-hinged glass side panel, and solid steel PSU shroud create a strong aesthetic for any gaming PC. Meanwhile, the five pre-installed Kolink Umbra ARGB fans and front mesh panel provide ample airflow to keep your components at optimum temperature.

- Kolink Observatory MX Mesh ARGB Mid-Tower PC Case at a Glance:
Mid-tower PC case with dual-tone design and half-hinged tempered glass panel
Mesh front panel and dedicated solid steel PSU shroud
Support for ATX motherboards and GPUs up to 330mm long
Five pre-installed Kolink Umbra ARGB fans
Four storage drive bays
Available in three colourways
Observatory MX Mesh
The Kolink Observatory MX Series features two styles, each available in three colourways. You can choose between the Glass or Mesh editions, and then black, white, or black and white colourings.

This is the Mesh model in black and white. The front panel has a mesh design, to ensure ample airflow. Keeping the aesthetic sleek, the dedicated PSU shroud is formed with solid steel panelling. As the black and white model, the exterior and interior are black, with the shroud offset in white. Thus, creating a bold effect.

- Generous Hardware Support
More than just its good looks, the Kolink Observatory MX Mesh has incredible support for a variety of hardware. This chassis can accommodate a Mini-ITX, Micro-ATX, or ATX motherboard, with seven expansion slots on the rear panel for PCIe devices. In the main chamber, there is 330mm clearance for GPUs.

The dedicated PSU shroud can host power supplies up to 180mm. There is also a storage drive cage with four bays. Two can hold either 2.5” SSDs or 3.5” HDDs, whilst the other two are for 2.5” drives only.

- Airflow for Days
To keep your gaming PC at optimum temperature, the Kolink Observatory MX Mesh can support both air and water-cooling hardware. There are five Kolink Umbra ARGB fans pre-installed across the chassis, to bolster the air flowing through the mesh panelling. The front features two 140mm fans. Upon the top, there are two 120mm models, and the rear holds a singular 120mm fan, too.

Alternatively, there is support for radiators and additional fans throughout the chassis. The front panel can host a maximum of two 140mm fans or a radiator either 240mm, 280mm, or 360mm long. For the back panel, the 120mm fan mount can instead support a 120mm radiator. The top panel can only support the two 120mm fans, but there are also two 120mm brackets on the PSU shroud to provided dedicated cooling for the second chamber.

Finally, the Kolink Observatory MX Mesh PC Case has clearance for CPU coolers up to 160mm tall.

Additional Features
The Kolink Observatory MX Mesh features a USB 3.0 and USB 2.0 port as part of the I/O panel, with an HD audio jack. There is also a reset button than can be used to control the fans. Alternatively, these can be connected via a 3-pin 5V header and controlled through the lead fan.

Specifications
expand_less
Drive Bays
2.5 inch internal drive bay    2
2.5 / 3.5 inch internal drive bay (combined)    2
Hot swap drive bays    No
Case
Case Type    Mid Tower
Internal Dimensions
Max. CPU Cooler Height    160 mm
Max. GPU Lenght    330 mm
Max. PSU Length / Depth    180 mm
Materials
Materials    Steel, Tempered Glass
Colour
Primary Colour    Black
Secondary Colour    White
Fan main colour (cage)    see image
Fan main colour (rotor)    see image
Power Supply
PSU included    No
Power Supply Position    rear bottom
Case Features
I/O position    Top
Side panel    with window
Front door    No
Cable Management    No
Filters included    No
Noise dampening    No
Mainboard slide / tray    No
Remote included    No
Transport system    No
Lighting
Lighting    Yes
Fan / RGB control    Yes
Lighting Colour    RGB
Features
Housing feedthrough    No
Radiator Support
Max. Radiator Compatibility    1x Triple (360 mm)
Motherboard Support
Compatible motherboard formats    ATX, Micro-ATX, Mini-ITX
Max. Motherboard Format    ATX
Display
Display Included    No
Expansion Slots
Expansion slots / PCI slots    7
Additional Contents
Included fans    3x 120 mm, 2x 140 mm
Dimensions
Width    200 mm
Depth    350 mm
Height    440 mm
Weight    5.6 kg
External Ports
USB 3.0 (external) Type A    1
USB 2.0 (external) Type A    1
Audio outputs & inputs    1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Card reader    No
Fan Support
120 mm fans    5
140 mm fans    2
