The HAVN BF 360 Flow PC Case will bring minimalist style and full coverage airflow to your gaming PC. Taking the best of the HS 420, this PC case is engineered to provide incredible hardware support while facilitating flexible cooling configurations and optimised thermal performance. There is ample support for both air and water-cooling hardware, and comes with two HAVN H18 and one HAVN H14 fans pre-installed. With a classic structure and modern refinements, the HAVN BF 360 Flow will make a great foundation for any gaming PC.
HAVN BF 360 Series
In order to watch this youtube video you have to consent to the usage of marketing cookies. Please update your cookie consent.
HAVN BF 360 Flow PC Case at a Glance:

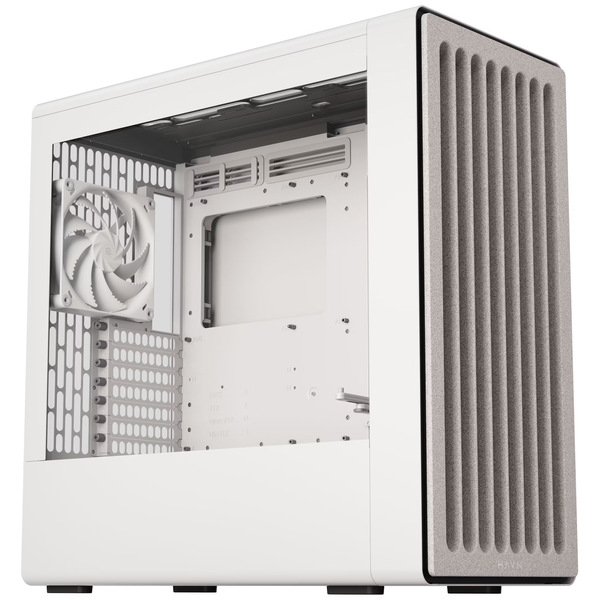

Mid-tower PC case with semi-open frame design and tempered glass window
Full coverage airflow and aerodynamic funnelling
2 x HAVN H18 180mm and 1 x HAVN H14 140mm fans pre-installed
E-ATX motherboard, 410mm GPU, and ATX PSU support
Compatible with water-cooling hardware
Premium SGCC steel, reinforced in high-stress areas
Who is the HAVN BF 360 Flow PC Case Perfect For?
PC builders looking for best out-of-the-box cooling performance
Preference for AIO CPU cooling
Fans of elegant and minimalist designs
Minimalist Elegance
With sleek modern curves and a classic structure, the HAVN BF 360 Flow PC Case is a stylish and functional addition to your gaming PC build. Manufactured from SGCC steel in a fresh white finish, this mid-tower PC case has been reinforced on the high-stress areas to provide a strong and robust foundation for all your gaming hardware. The U-shaped structure ensures a rigid build, as well as smoother, more convenient assembly.
For a touch of luxury, the front panel has a five-layer stacked slate texture effect.
Full Coverage Airflow

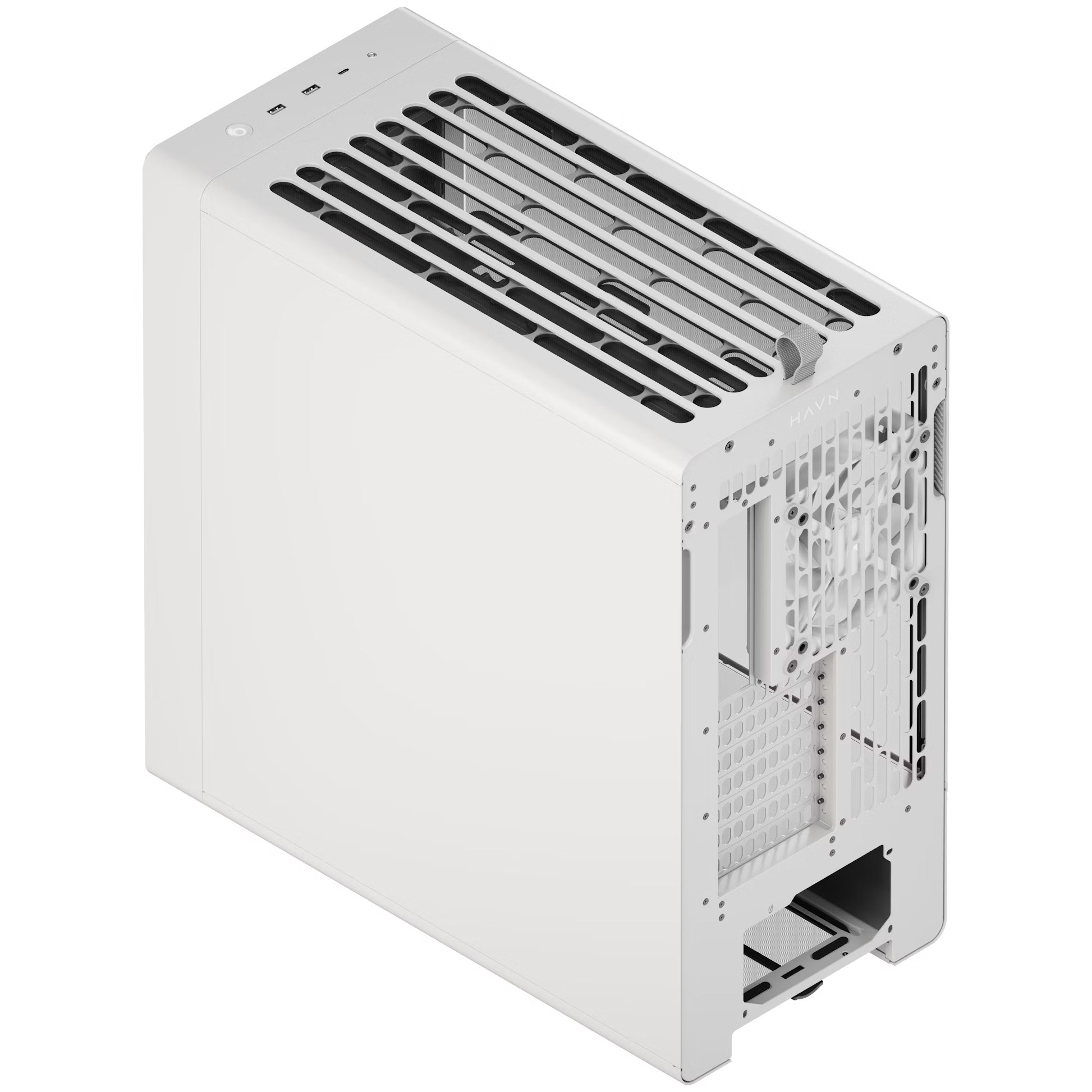

To ensure incredible thermal performance, the HAVN BF 360 Flow PC Case has a semi-open design and provides full coverage airflow with aerodynamic features to effectively funnel air where you need it most. The front, top, and rear panels feature a rib pattern style ventilation, which maximises the airflow at a rate of 315.1CFM and minimises interference. Air is drawn in through the front and directed up a 135° ramp to directly cool your GPU and CPU. Waste heat is exhausted through the top and rear panel, providing incredible thermal efficiency.
HAVN BF 360 Flow PC Case
Bolstering the natural airflow, the HAVN BF 360 Flow PC Case supports a range of air and water-cooling components. In total, you can instal up to six fans, with a six channel PWM repeater to streamline control. Fans can be mounted to the front, top, and rear panels, enhancing the thermal aerodynamics. For those who like to experiment with fan configurations, both the front and top panel can support up to two 180mm fans. Alternatively, you can mount either three 120mm or two 140mm fans on the top, and there is space for a single 120mm or 140mm fan on the rear. The HAVN BF 360 Flow PC Case comes with two HAVN H18 180mm fans mounted to the front, and a single HAVN H14 140mm fan on the rear.
For water cooling enthusiasts, there is support for radiator mounting, as well. The front can accommodate a 420mm radiator, while the top fits one up to 360mm. Plus, there is 195mm clearance for CPU coolers and towers, ensuring you can equip your gaming PC with the thermal hardware you need.
Hardware Support

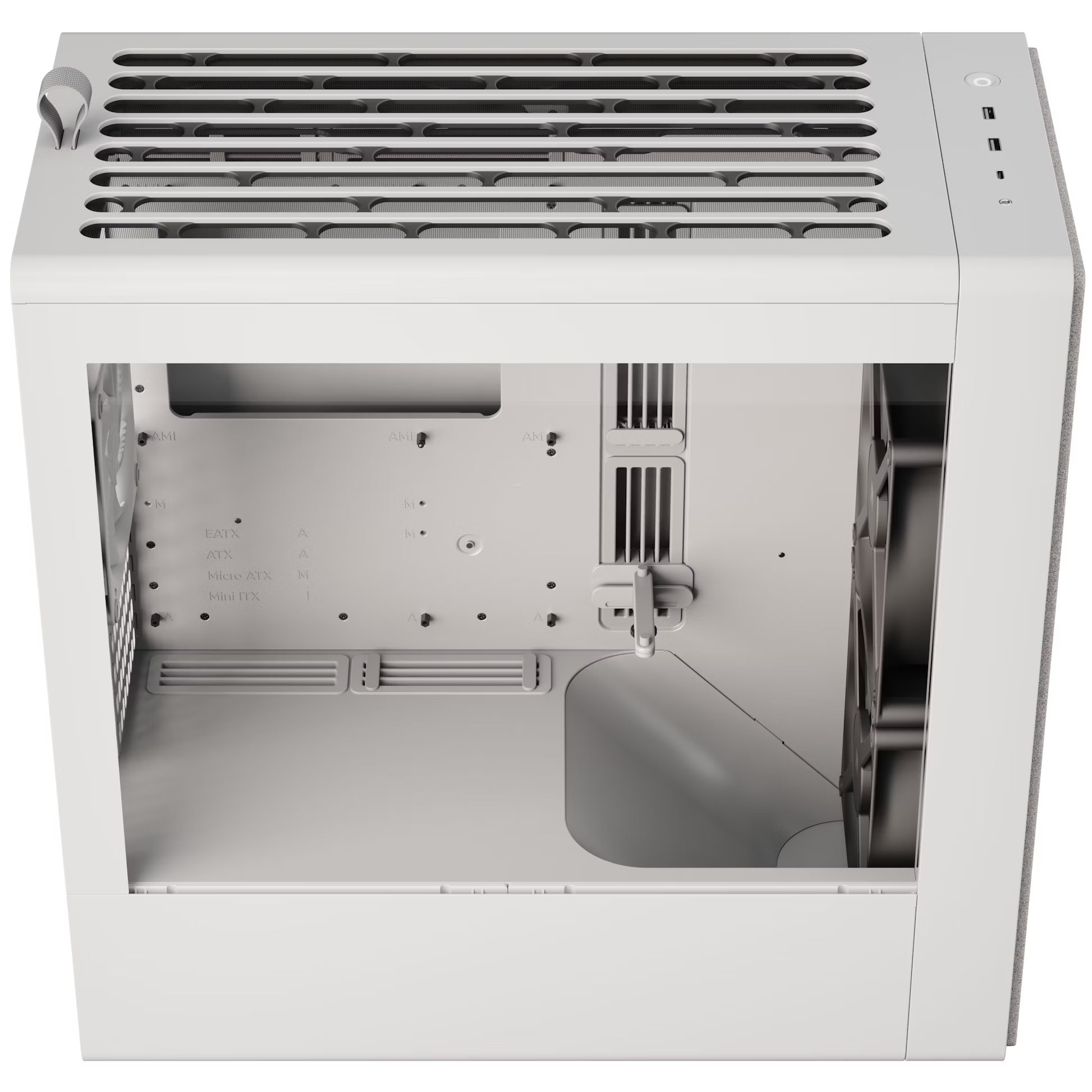

The HAVN BF 360 Flow PC Case has an intelligent internal layout to provide optimal compatibility with the current gaming hardware market. The motherboard tray can support E-ATX (up to 277mm wide), ATX, Micro-ATX, and Mini-ITX motherboards, while the space behind the ramp accommodates an ATX power supply up to 200mm long. For your GPU, there is up to 410mm clearance and an adjustable support bracket. This can be swivelled and configured in height and depth to best support your graphics card.
HAVN BF 360 Flow PC Case
The storage drive bays mount to the back of the motherboard tray. There are two available, and each can support either one 3.5” HDD or two 2.5” SSDs. This provides great potential for a flexible storage solution, with any combination of HDDs and SDDs to suit your needs.
For easy connectivity, the I/O panel is at the front of the top panel. It features one USB 3.2 Gen 2 Type C port and two USB 3.2 Gen 2 Type A ports, along with HD audio and power.
Innovative Features
To simplify installation and maintenance, the HAVN BF 360 Flow PC Case comes with a range of innovative features. Much like the HS 420, this PC case utilises the SimpliCable routing system, marking ideal routes and the suitable cables. For ease of access, the front and top panels are magnetic, and there is even a pull loop on the top. Plus, the rubberised grooves along the right and left edge make removing panels easy and intuitive.
HAVN BF 360 Flow PC Case
Many aspects of the HAVN BF 360 Flow PC Case feature vibration isolation. All the fan brackets are vibration dampened to reduce noise, featuring rubber isolation mounts to improve both stability and acoustics. There is even built-in vibration dampening on the storage bays to reduce their operational noise.
Every component of the HAVN BF 360 Flow PC Case has been carefully planned, designed, and executed to ensure ease of use and optimal performance.
Back Connect
Back Connect No
Case Features
I/O position Top
Side panel with window
Vertical GPU Mount No
Adjustable Vertical GPU Bracket No
Front door No
Cable Management Yes
Filters Included Yes
Filter Position Bottom
Noise dampening No
Mainboard slide / tray No
Transport System No
Colour
Primary Colour White
Motherboard Support
Compatible Motherboard Formats E-ATX, ATX, Micro-ATX, Mini-ITX
Max. Motherboard Format E-ATX
Power Supply
PSU included No
PSU Format ATX
Power Supply Position Internal
Fan Support
Case Fan Support (Top) 120mm Fan (3x), 140mm Fan (2x), 180mm Fan (2x)
Case Fan Support (Rear) 120mm Fan (1x), 140mm Fan (1x)
Case Fan Support (Front) 180mm Fan (2x)
Max. Number of Fans 6
Materials
Materials ABS, Nylon, Zinc alloy, Tempered Glass, SGCC (Steel), Silicon
Display
Display Included No
Radiator Support
Max. Radiator Compatibility 360
Radiator/AIO Support (Top) 280mm Radiator, 360mm Radiator
Dimensions
Length / Depth 515 mm
Width 254 mm
Height 522.6 mm
Weight 14.79 kg
Drive Bays
Max. 2.5 Inch Drives 4
Max. 3.5 Inch Drives 2
Max. 5.25 Inch Drives 0
Hot swap drive bays No
Compliance
Compliance Documents en_GB HAVN Case Compliance and Safety
Manufacturer Information Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Responsible Person Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Lighting
Lighting / RGB No
Mounting
Internal Monitor Mount No
Case VESA Mountable No
Product Series
Product Series/Family BF 360
Fan Header
Fan Controller / Fan Hub Yes
4 Pin Fan Connectors 6
Additional Contents
Fans Included Yes
Included fans 1x 140 mm, 2x 180 mm
Internal Dimensions
Max. CPU Cooler Height 195 mm
Max. GPU Length 410 mm
Max. PSU Length / Depth 200 mm
Features
Housing Feedthrough No
Expansion Slots
Expansion slots / PCI slots 7
Case
Case Type Mid Tower
External Ports
Front I/O – USB Type C Ports Total 1
Front I/O – USB Type A Ports Total 2
USB 3.2 (external) Type C 1
USB 3.0 (external) Type A 2
Audio outputs & inputs 1x output + 1x input (3.5 mm jack, 3-pin, TRS)
Card reader No
Cable Specifications
Riser Cable Included No
