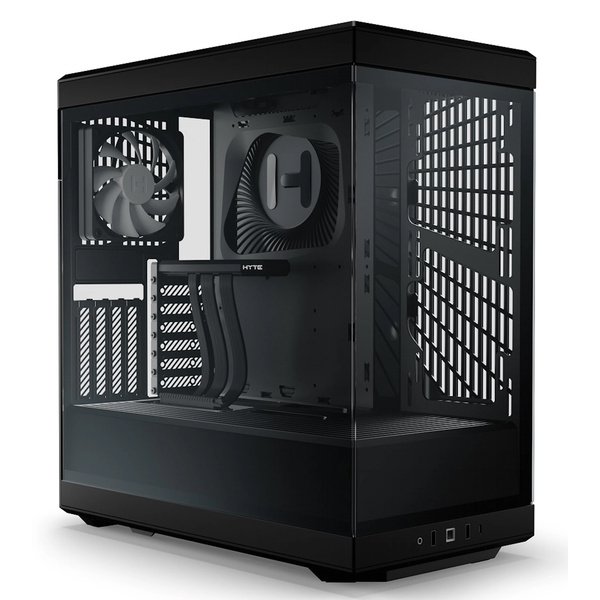

HYTE Y40 Mid-Tower ATX Case - Black

Description

HYTE Y40 MID-TOWER PC CASE AT A GLANCE:
ATX case with bezel-less 2-piece panoramic tempered glass panelling
PCIe 4.0 riser cable included for vertical GPU mounting
Protective riser cable canopy for half-height PCIe cards behind vertical GPU
Extensive ventilation throughout the chassis with dust filters
Two pre-installed 120mm fans on floor and rear of case
Dedicated space for intelligent cable management
S-TIER AESTHETICS
With your gaming PC inside a HYTE Y40 PC Case, you can elevate your gaming aesthetic to the S-tier class. The two-piece glass panelling offers a panoramic view of all your high-end hardware, with no bezels or framework interrupting their glory. What’s more, the intelligent interior layout makes it appear like your components are floating, for that extra touch of style.

The HYTE Y40 is available in four stunning colourways: Black, White, Red, and Snow White. This model is Black, with both the exterior and interior featuring a matte black finish. A seamless addition to any gaming set-up.

BUILT TO SHOWCASE
As a showcase chassis, the HYTE Y40 has extensive support for a wide range of components, enabling you to build your dream PC. The backplate can accommodate Mini-ITX, Micro-ATX, and ATX motherboards, with four full and six half-height expansion slots for all your PCIe devices. Included within the scope of delivery is a PCIe 4.0 riser cable that allows you to vertically mount your GPU and features a protective canopy so you can mount half-height PCIe cards behind the GPU. There is 422mm clearance for graphics cards, at a maximum thickness of 94mm, though 80mm is recommended for the best cooling potential. Thanks to the four full height expansion slots, the HYTE Y40 is perfect to use with powerful four-slot GPUs.

To power your gaming PC, the HYTE Y40 has space for ATX power supplies in the dedicated PSU shroud, up to 224mm in length. Facilitating flexible storage, this chassis can hold either one 3.5” HDD or two 2.5” SSDs.

AMPLE COOLING
The HYTE Y40 PC Case has been optimised to provide excellent cooling. To create a unique airflow path, there are two pre-installed 120mm fans and ample ventilation throughout the chassis. As such, this case will provide ample cooling to a wide variety of components.

The featured fans can operate at speeds of 1300RPM whilst at whisper-quiet noise levels. They are mounted on the bottom and rear panels, facilitating intake and exhaust functionality.

There is further fan and radiator support on the HYTE Y40. In the space next to the motherboard, you can mount either two 120mm or 140mm fans. Alternatively, this can be used for radiators up to 280mm long and 120mm thick. The top panel accommodates for either three 120mm fans or a radiator up to 360mm. The bottom panel can alternatively hold one 140mm fan, whilst the rear supports a single 120mm fan or radiator.

For cooling your CPU, there is clearance for units up to 183mm tall.

DEDICATED CABLE MANAGEMENT
The HYTE Y40 provides a dedicated space for cable management. Beneath the PSU shroud is a cavity with a cable shelf that enables cleaner cable runs and prevents wiring from cluttering your gaming PC, thus impeding airflow.

The front I/O is located on the base of the front panel. Providing high-speed connectivity, there is two USB 3.0, one USB 3.2 Type-C ports, and a 3.5mm audio jack, symmetrically surrounding the power button.

Specifications
expand_less
HYTE Y40 SPECIFICATIONS:
Type    ATX Mid Tower
Volume    439mm x 240mm x 472mm
Case Dimensions    439mm x 240mm x 472mm
Motherboard Support    ITX, mATX, ATX
Power Supply    ATX up to 224mm in length
Video Card Max Dimensions    422mm length, 94mm height (80mm height or less recommended for best cooling)
Fan Support (Side)    2x 120mm/140mm
Fan Support (Top)    Top: 3x 120mm
Fan Support (Rear)    1x 120mm (1x 120mm, 1300 rpm included)
Fan Support (Bottom)    1x 120mm/140mm (1x 120mm, 1300 rpm included)
Radiator Support (Side)    120, 140, 240, 280mm up to 120mm thick
Radiator Support (Top)    120, 240, 360mm
Radiator Support (Rear)    120mm
CPU Cooler Height    183mm
Storage    1 x 3.5`` HDD or 2 x 2.5`` SSD
Expansion Slots    4 + 6 half-height
