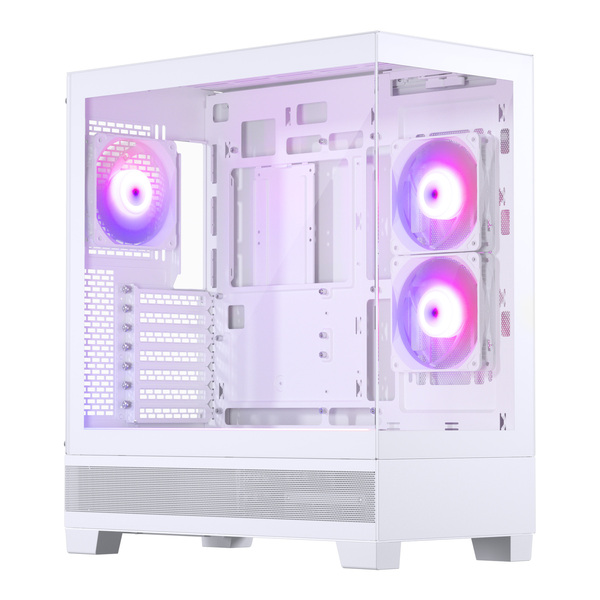

PHANTEKS XT View ATX Case Tempered Glass Windows, White

Description

Build a super clean gaming PC with the Phanteks XT View. This chassis boasts tempered glass panels for the front and side, as well as no support pillar providing a seamless view of all your gaming hardware. What’s more, cable clutter is kept to a minimum as the XT View is compatible with innovative hidden connector motherboards from both MSI and ASUS. The motherboard tray boasts extra passthroughs, giving easy access to all connectors on the back of these motherboards directly from the rear compartment, allowing you to hide all your cables in the back of your PC. Furthermore, the spacious main chamber of the Phanteks XT View has enough clearance for a wide range of hardware, including large GPUs, tall tower air coolers, and multiple cooling fans. Additionally, the XT View boasts gorgeous aesthetics, as it features an included DRGB controller, that can support multiple RGB fans and the integrated lighting strip without requiring the use of software.

- PHANTEKS XT VIEW MID TOWER CASE AT A GLANCE:
Mid tower design, with ample room for modern hardware
Compatible with MSI Project Zero and ASUS BTF motherboards
Supports up to nine fans for outstanding cooling
Accommodates large components such as E-ATX motherboards and 415mm GPUs
Tempered glass front and side panels provide a panoramic view of hardware
Fully featured front I/O with USB Type A and C ports

- HIDE ALL YOUR CABLES
The Phanteks XT View provides full compatibility with both the MSI Project Zero and ASUS BTF motherboards. These innovative mainboards locate their cable connectors such as the 24-pin to the rear. To facilitate the unique requirements of these boards, the Phanteks XT View provides extra passthroughs from the main chamber to the rear compartment. This provides access to all the connectors, allowing for cables to be easily connected. By doing this any cables required to power your PC are hidden away in the rear compartment of the chassis. Thanks to this, a gaming PC built within the XT View will feature almost zero visible cable clutter. However, the wires for components that can’t draw their power from the motherboard, such as high-end GPUs, and AIO pumps will still need to be routed through the main chamber.

- MID TOWER CASE WITH PLENTY OF SPACE
With its spacious main chamber, the Phanteks XT View can easily accommodate the latest powerful gaming hardware. The motherboard tray can facilitate a wide range of boards, including ATX, Micro-ATX, Mini-ITX, and E-ATX models under 280mm wide. Alongside this, there is enough clearance for large CPU air coolers up to 184mm tall. Perfect for efficiently cooling the latest CPUs from both AMD and Intel. Moreover, with a GPU clearance of 415mm, you can easily install a powerful graphics card such as an NVIDIA RTX 4090. Plus, you will have plenty of space even with all these components installed to create aesthetically pleasing cable runs.

In addition to the main chamber, the Phanteks XT View also offers a spacious bottom compartment and ample cable management options. The bottom chamber of this case can contain your PSU, alongside a drive cage to mount up to two 3.5`` HDDs. What’s more, a removable bracket can also be mounted behind the motherboard tray, which can house up to three 2.5`` SSDs. Whilst the drive cage is present in the bottom chamber, there is room for power supplies up to 270mm long to be installed, leaving plenty of room for cable management.

- LARGE SCALE COOLING
Maintaining your gaming PC at optimum temperatures is simple with the Phanteks XT View. This is thanks to the exceptional compatibility with a range of cooling hardware. There are three locations to mount radiators, which can all be utilised simultaneously. The top of the case can accommodate a 360mm radiator, meanwhile the side mount has space for a 240mm model, and a 120mm rad can also be supported by the rear panel.

Alongside the excellent radiator support, a total of up to nine fans can be installed within the Phanteks XT View. Three 120mm fans can be mounted to the top of the case, two more can be located on the side panel, furthermore an additional 120mm fan can be secured to the rear panel. Finally, three 120mm fans can be located atop the PSU shroud, which draws air from the bottom chamber, directing air into your GPU increasing its cooling performance. The XT View also supports 140mm fans, with mounting points for two fans at the top, and a single fan at the rear.

Drive Bays
3.5 inch internal drive bay    2
2.5 inch internal drive bay    5
Product series
Product Series/Family    XT View
Materials
Materials    Plastic, Steel
Case
Case Type    Mid Tower
Radiator Support
Max. Radiator Compatibility    1x Triple (360 mm), 1x Dual (240 mm), 1x Single (120 mm)
Colour
Primary Colour    Black
Lighting
Lighting    Yes
Fan / RGB control    Yes
Lighting Colour    RGB
Internal Dimensions
Max. CPU Cooler Height    184 mm
Max. GPU Lenght    415 mm
Max. PSU Length / Depth    270 mm
Back Connect
Back Connect    Yes
Expansion Slots
Expansion slots / PCI slots    7
Power Supply
PSU included    No
PSU Format    ATX
Power Supply Position    rear bottom
Motherboard Support
Compatible motherboard formats    E-ATX, ATX, Micro-ATX, Mini-ITX
Max. Motherboard Format    E-ATX
Additional Contents
Included fans    3x 120 mm
Case Features
Side panel    with window
Cable Management    Yes
Noise dampening    No
Mainboard slide / tray    No
Dimensions
Width    230 mm
Depth    450 mm
Height    400 mm
Weight    7.65 kg
External Ports
USB 3.1 (external) Type C    1
USB 3.0 (external) Type A    1
Audio outputs & inputs    1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Card reader    No
Fan Support
120 mm fans    7
