Description

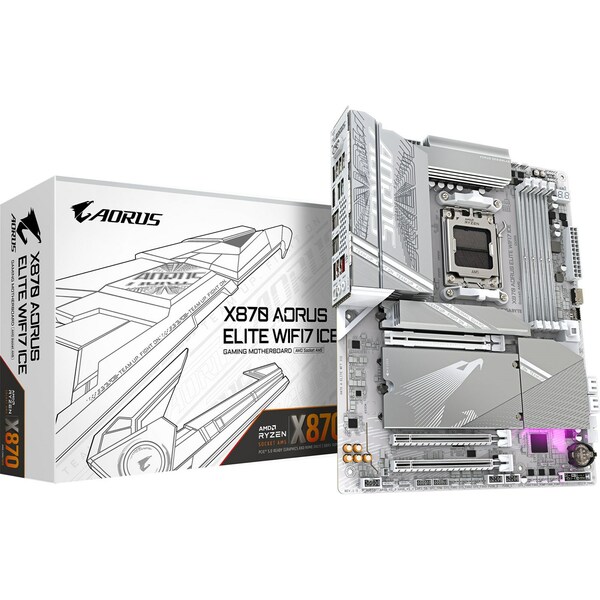

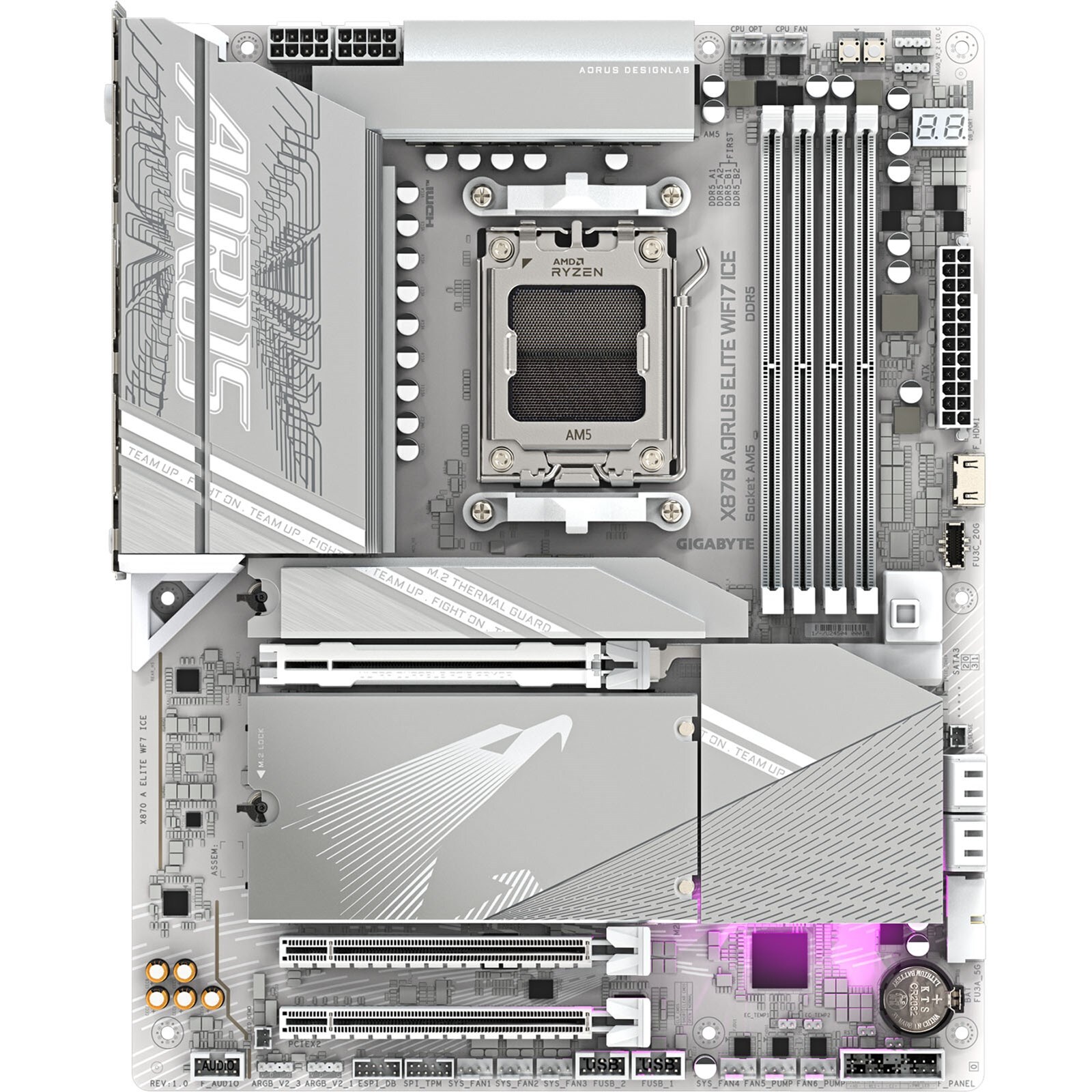

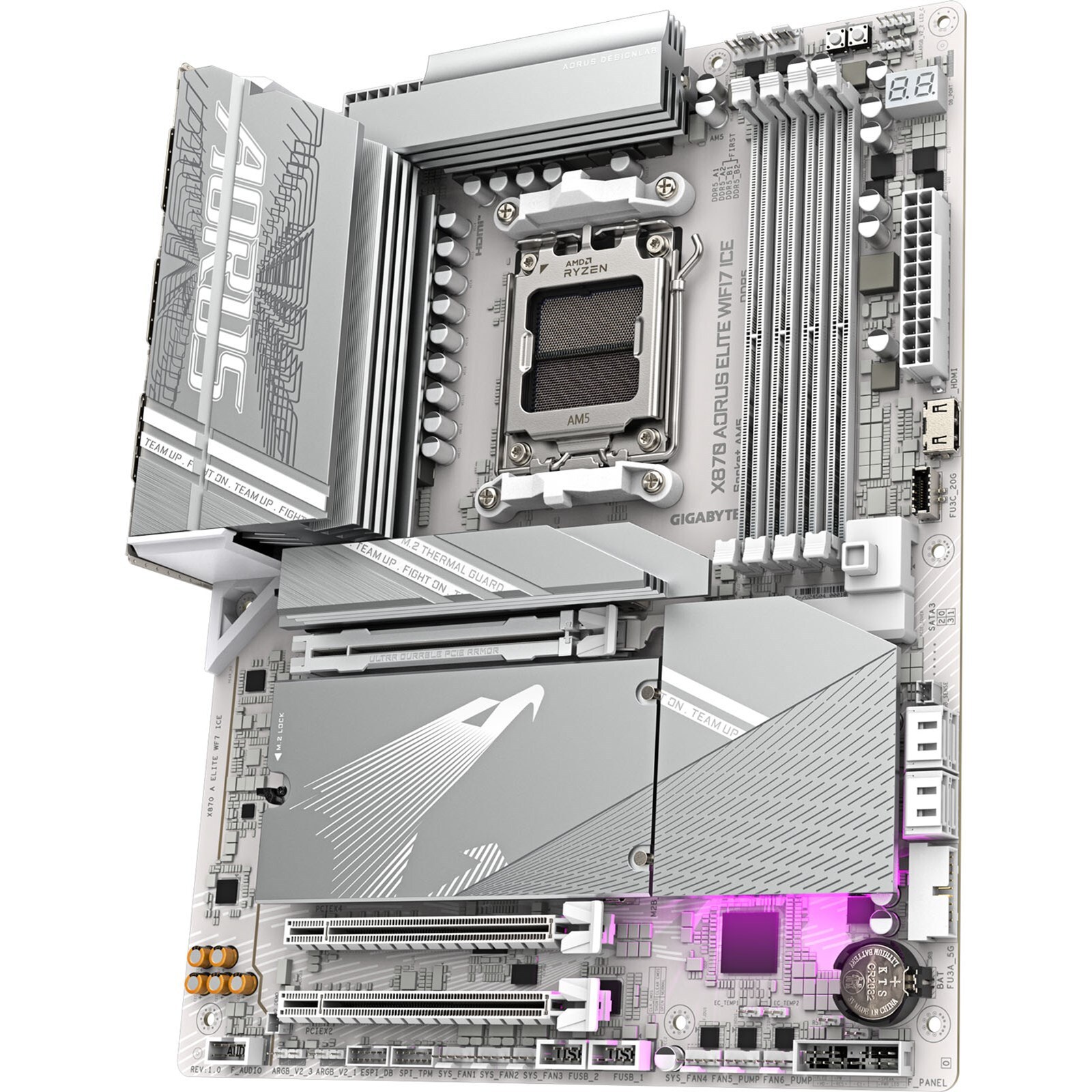

Gigabyte X870 AORUS ELITE WIFI7 ICE AMD Socket AM5 Motherboard
Main Features
AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
Digital twin 16+2+2 phases VRM solution
Dual Channel DDR5: 4x DIMMs with AMD EXPO Memory Module Support
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click: M.2 heatsinks with screwless design
Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage: 4x M.2 slots, including 3x PCIe 5.0 x4
Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L
Fast Networking :2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
Reliable Audio: Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
Ultra Durable PCIe Armor: The metal back plate of PCIe x16 slot for enhanced durability
PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
Specifications
CPU AMD Ryzen™ 9000/8000/7000 Series Processors (refer to GIGABYTE's website for the latest CPU support list)
Chipset AMD X870
Memory
DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s
4 x DDR5 DIMM sockets supporting up to 256 GB
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXPO™ and XMP memory modules
Onboard Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
Audio Realtek® ALC1220 CODEC
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Module
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Storage Interface
M.2 connectors (M2A_CPU, M2B_CPU, M2C_CPU, M2D_SB)
SATA 6Gb/s connectors
USB
CPU+ASMedia USB4® controller
CPU+USB 3.2 Gen 1 Hub
CPU+USB 2.0 Hub
Chipset
Internal I/O Connectors
Power connectors
Fan headers
LED strip headers
M.2 connectors
SATA 6Gb/s connectors
Front panel headers
USB headers
Noise detection header
Trusted Platform Module header

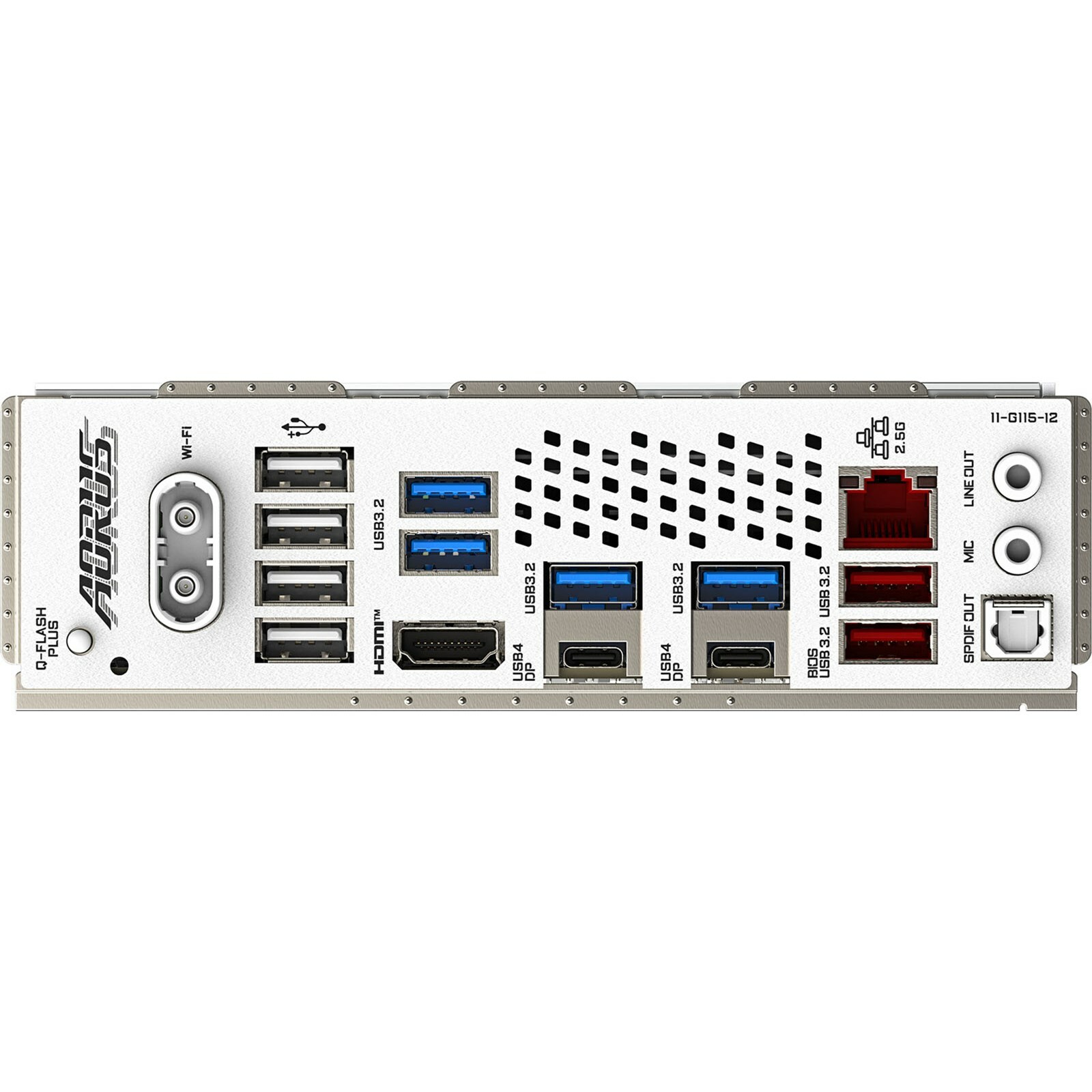

Back Panel Connectors
Q-Flash Plus button
HDMI port
Antenna connectors
USB ports
RJ-45 port
Optical S/PDIF Out connector
Audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Noise detection
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash and Q-Flash Plus
Support Smart Backup
Bundled Software Norton® Internet Security (OEM version), LAN bandwidth management software
Operating System Support for Windows 11 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
