GIGABYTE AMD Ryzen B550 AORUS ELITE AX V2 AM4 PCIe 4.0 ATX Motherboard - Black Friday Special Offer

Description

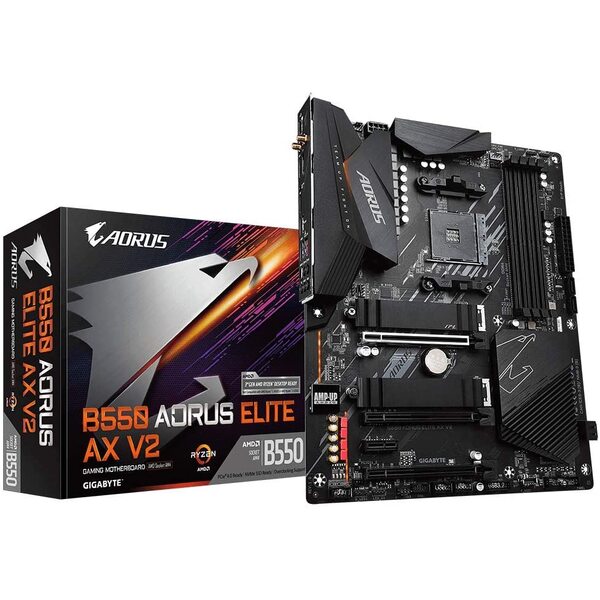

Gigabyte B550 AORUS ELITE AX V2 ATX Motherboard
Features
• Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• 12+2 Phases Digital Twin Power Design with 50A DrMOS
• Advanced Thermal Design with Enlarged Surface Heatsinks
• Ultra Durable™ PCIe 4.0 x16 Slot
• Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards
• Onboard Intel® WiFi 6 802.11ax 2T2R + BT5 with AORUS Antenna
• AMP-UP Audio with ALC1200 and WIMA Capacitors
• Blazing Fast 2.5GbE LAN with Bandwidth Management
• Front USB 3.2 Gen1 Type-C™ and DisplayPort + HDMI for Multiple Display
• RGB FUSION 2.0 Supports Addressable LED + RGB LED Strips
• Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
• Pre-installed IO Shield for Easy and Quick Installation

12x+2 Phases Digital Twin Power Design
Digital PWM Controller delivers appropriate voltage to the CPU
With 12+2 Phases 50A DrMOS, each power phase connects to the CPU and provides more balanced and efficient power delivery. With capability to handle up to 700 Amps current in a totalAll-solid capacitors to improve Transient response and minimize oscillation

24pin+8pin Solid Pin CPU Power Connectors
B550 AORUS ELITE AX V2 motherboard uses a 12+2 phases Digital Twin Power Design which includes PWM controller, DrMOS and Ferrite core choke as high quality selected components. These 100. digital controller offer incredible precision in delivering power to the motherboard`s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from 3rd Gen AMD Ryzen™ processors.

UNPARALLELED PERFORMANCE
GIGABYTE realize that customer won`t stop chasing a better computing performance. We take care of it and implement on products. Protec
