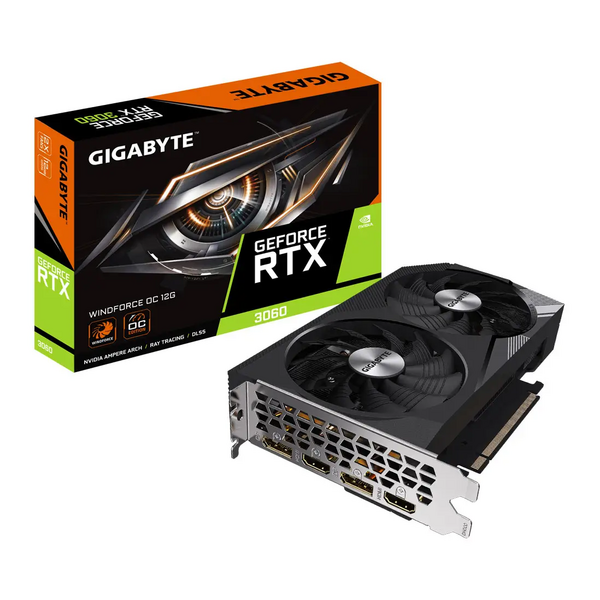

GIGABYTE 12GB GeForce RTX 3060 Windforce OC 12G V2

Description

GeForce RTX™ 3060 WINDFORCE OC 12G

ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling

SPECIFICATIONS
Graphics Processing: GeForce RTX™ 3060
Core Clock: 1792 MHz (Reference Card: 1777 MHz)
CUDA® Cores: 3584
Memory Clock: 15000 MHz
Memory Size: 12 GB
Memory Type: GDDR6
Memory Bus: 192 bit
Memory Bandwidth (GB/sec): 360 GB/s
Card Bus: PCI-E 4.0 x 16
Digital max resolution: 7680x4320
Multi-view: 4
Card size: L=198 W=121 H=39 mm
PCB Form: ATX
DirectX: 12 Ultimate
OpenGL: 4.6
Recommended PSU: 550W
Power Connectors: 8 pin*1
Output: DisplayPort 1.4a *2,  HDMI 2.1 *2
SLI Support: N/A
Accessories: Quick guide
