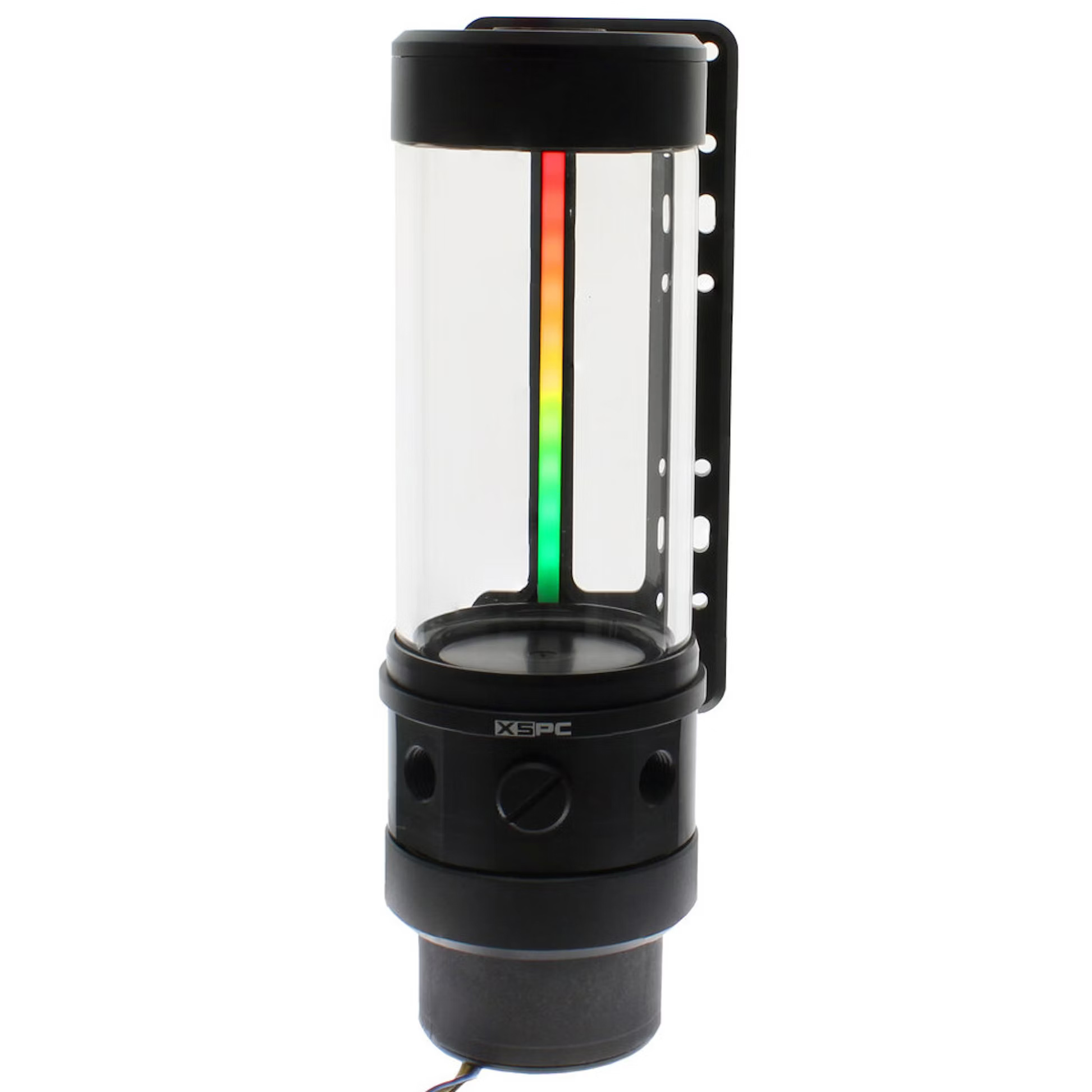

XSPC 5060596651142 D5 Photon 170 ARGB Reservoir / Pump Combo V3 - Black

Description

The new D5 Photon Reservoir/Pump Combo V3 brings back the original Photon looks combined with the all new aRGB Lighting system + the Original Laing D5 Pump.

The D5 Vario pump features exceptional performance and unrivalled reliability. The D5’s speed dial allows you to adjust the pump speed to best suit your system, and the tacho output lets you accurately monitor the pumps speed.

The tube is made from a quality toughened glass, which is both crystal clear and highly resistant to staining. The aRGB lighting is now at the back of the reservoir and features a diffuser strip for a more professional look to your build.

Unlike other tube reservoirs, which use cheap plastic brackets, the XSPC Photon has high quality CNC cut aluminium bracket. The bracket connects to both ends of the reservoir, which give a solid hold without blocking the view of the tube.

Photon reservoirs can be mounted either horizontally or vertically. If using the Photon horizontally, make sure to keep the reservoir topped up to the top, or air can get sucked into the loop.

Each reservoir/pump combo is hand assembled and pressure tested before sale to ensure reliability.

V3 Photon reservoirs include a new bracket which attaches directly to 120mm and 140mm radiators. It also has an improved fillport with lower restriction, to make filling the reservoir easier.

Details:
Tube Material: Glass
Cap Material: White Acetal
Bracket Material: Aluminium
Dimensions: 241.5 x 85 x 89mm (Including Pump + Bracket)
Capacity: 425ml
Lighting: 10x Individual aRGB bulbs
Ports: 3x G1/4`` (2x In, 1x Out)
Individually Pressure Tested

D5 Pump Specification:
Original Xylem/Laing D5 Vario pump
4 Pin Molex and 3 Pin Tacho Output
Speed Selector Dial
Maximum Flow: 1200 lph (12V)
Maximum Head Delivery: 3.7m (12V)
Voltage: 8-24V (37W Max)


RGB Compatibility:
- All 3Pin 5v Addressable RGB Motherboards, Controllers and Hubs including...
- Asus AURA Sync (3Pin 5v Headers only)
- Gigabyte RGB
