Description

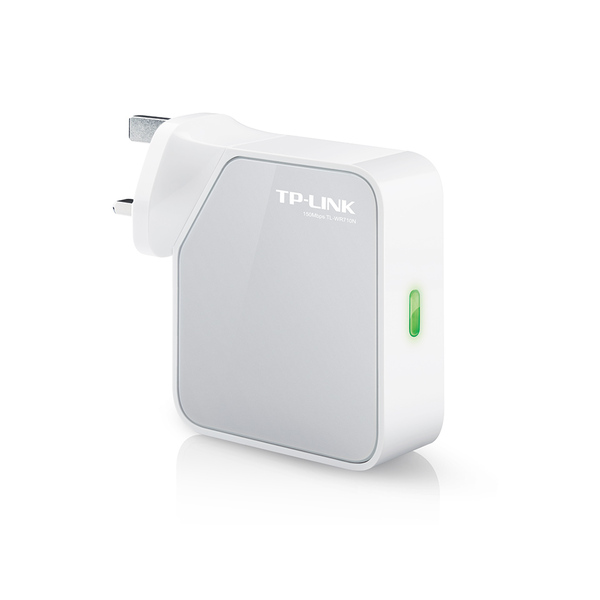

Wi-Fi Pocket Router/AP/TV Adapter/Repeater
Portable design, ideal for travel and home use
Built-in power adapter, no bulky adapter needed
Support Wireless Router, Client, Repeater, Access Point, WISP Client Router modes
?Versatile USB port for file sharing and charging
HARDWARE FEATURES
Interface 1 10/100Mbps WAN/LAN Port, 1 10/100Mbps LAN Port
1 USB Port
1 Reset Button
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 3.3 x 3.0 x 1.1 in. (85 x 75 x28 mm)
Antenna Type On-Board
WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 150Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 135M:-70dBm@10%PER
65M:-73dBm@10%PER
54M:-76dBm@10%PER
Transmit Power CE:
<20dBm(2.4GHz)
FCC:
<30dBm
Wireless Modes Router, Access Point, Client, WISP, Repeater
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM,Wireless Statistics
Wireless Security 64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
SOFTWARE FEATURES
Quality of Service WMM, Bandwidth Control
WAN Type Dynamic IP/Static IP/PPPoE/PPTP/L2TP
Management Access Control
Local Management
Remote Management
DHCP Server, Client, DHCP Client List,Address Reservation
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Access Control Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
OTHERS
Certification CE, FCC, RoHS
Package Contents TL-WR710N
Ethernet Cable
Resource CD
Quick Installation Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows8/ 8.1/10
MAC® OS, NetWare®, UNIX® or Linux
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
