Description

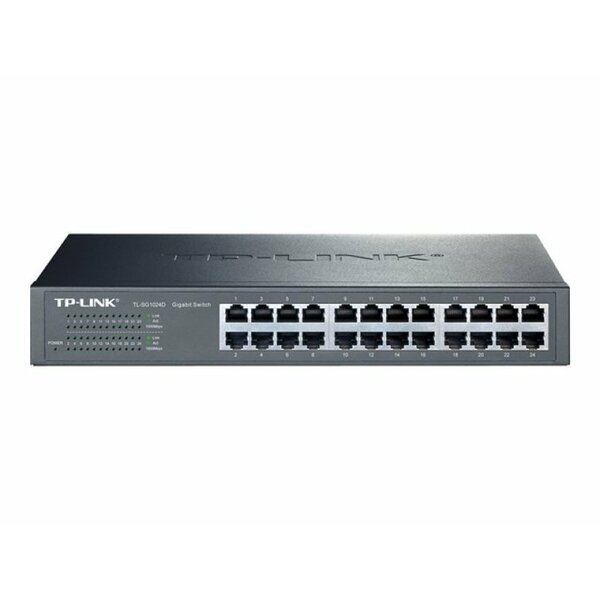

The TL-SG1024D 24-Port Gigabit desktop/rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save up to 20% of the power consumption, making it an eco-friendly solution for your business network.
Please note: networking components such as switches, routers and wireless devices require that speeds + standards be consistent throughout the network to gain optimum performance. To avoid compatibility clashes or for advice, please contact us on solutions@ebuyer.com.
Technical Specification
TP-Link TL-SG1024D 24-port Desktop/Rackmount Gigabit Switch
Expansion / Connectivity
Interfaces 24 x 1000Base-T RJ-45
Power
Power Device External power adapter
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Width 29.4 cm
Depth 18 cm
Height 4.4 cm
Compliant Standards FCC, RoHS
Included Accessories Rubber feet
Rack Mounting Kit Included
General
Interfaces Gigabit Ethernet
Device Type Switch - 24 ports
Enclosure Type Desktop, rack-mountable 1U
Features Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, fanless
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x
Status Indicators Power, 100M device connected, 1000M device connected, link/activity
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000
Performance Switching capacity: 48 Gbps ¦ Forwarding performance: 35.7 Mpps
MAC Address Table Size 8K entries
Jumbo Frame Support 10KB
Dimensions + Weight
Width 44 cm
Depth 18 cm
Height 4.4 cm
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 10 - 90% (non-condensing)
Min Storage Temperature -40 °C
Max Storage Temperature 70 °C
Humidity Range Storage 5 - 90% (non-condensing)
