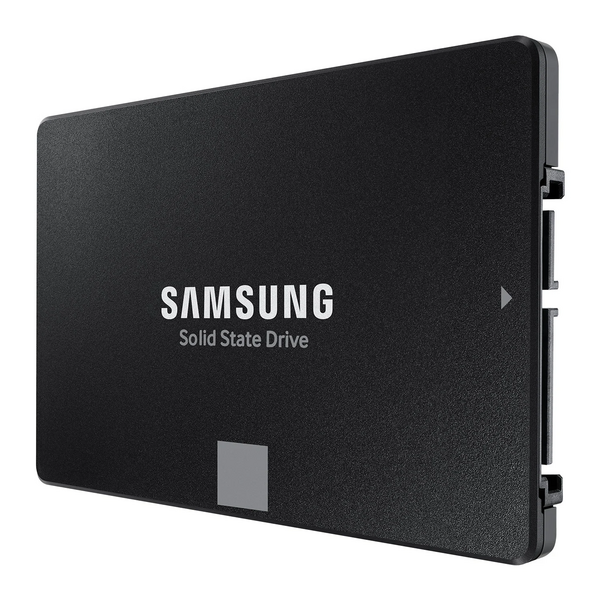

Samsung 870 EVO 2TB SATA 2.5" Internal Solid State Drive (SSD) MZ-77E2T0B/EU
General
Device Type Solid state drive - internal
Capacity 2 TB
Hardware Encryption Yes
Encryption Algorithm 256-bit AES
NAND Flash Memory Type 3D multi-level cell (MLC)
Form Factor 2.5"
Interface SATA 6Gb/s
Buffer Size 2 GB
Features TRIM support, sleep mode, Auto Garbage Collection Algorithm, Worldwide Name (WWN), TurboWrite Technology, 3-bit 3D V-NAND Technology, Low Power DDR4 SDRAM Cache, Samsung MKX Controller, S.M.A.R.T., 256-bit AES, IEEE 1667
Width 69.85 mm
Depth 100 mm
Height 6.8 mm
Weight 45 g
Performance
SSD Endurance 1200 TB
Drive Transfer Rate 600 MBps (external)
Internal Data Rate 560 MBps (read) / 530 MBps (write)
4KB Random Read 13000 IOPS
4KB Random Write 36000 IOPS
Maximum 4KB Random Write 88000 IOPS
Maximum 4KB Random Read 98000 IOPS
Reliability
MTBF 1,500,000 hours
Expansion + Connectivity
Interfaces 1 x SATA 6 Gb/s
Compatible Bay 2.5"
Power
Power Consumption 5 Watt (average) ¦ 4.5 Watt (maximum)
Software + System Requirements
Software Included Samsung Magician Software
Miscellaneous
Compliant Standards WWN, IEEE 1667
Manufacturer Warranty
Service + Support Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 70 °C
Shock Tolerance (operating) 1500 g @ 0.5 ms half-sine
