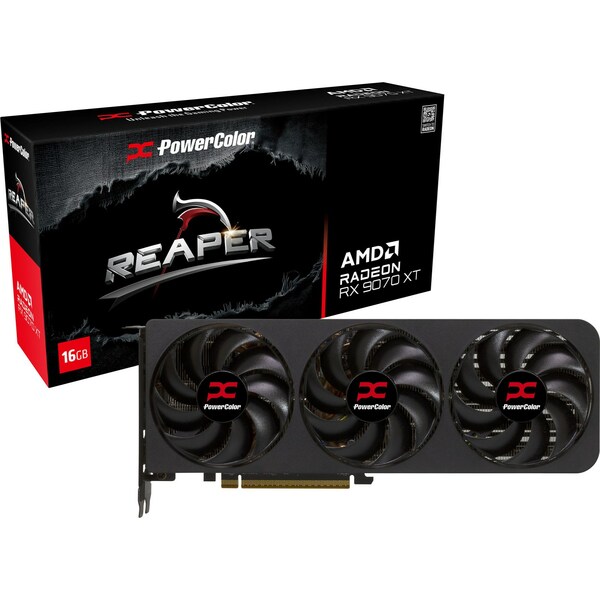

POWER COLOUR Powercolor Radeon RX 9070 XT Reaper 16Gb GDDR6 PCI-Express Graphics Card

Description

Powercolor Radeon RX 9070 XT Reaper 16Gb GDDR6 PCI-Express Graphics Card

Specification    Details
EAN Code    4713436175759
Bus Standard    PCIe 4.0 x16
Graphics Engine    RX9070XT 16G-A
Display Connectors    1 x HDMI 2.1, 3 x DisplayPort 2.1
Video Memory    16GB GDDR6
Form Factor    ATX
Stream Processor    4096 Units
Cooler    2 Slot Triple Fan
Power Connector    Two 8-pin PCI Express Power Connector
Game Clock    2400 MHz
Boost Clock    2970 MHz
OpenGL    4.6
DirectX® Support    12
Memory Speed    20.0 Gbps
Minimum System Power    750W
Memory Interface    256-bit
Card Dimensions (mm)    289 x 111 x 41 mm / 304 x 127 x 42 mm (w/bracket)
Accessories Bundle    Gaming Gear Intro Card

Additional Notes
`Game Clock` is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
`Boost Clock` is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.



Colour
Primary Colour    Black
Standards / Specifications
Adaptive Sync Technology (G-SYNC / FreeSync)    AMD Freesync
Dimensions
Length / Depth    304 mm
Width    127 mm
Height    42 mm
Water Cooling
Watercooling    No
Lighting
Lighting / RGB    No
Expansion Slots
Expansion Slots Required    2 Slots
Graphics Card
GPU Series    RX 9000 Series
Cooling
Number of GPU Fans    3
Clock Speeds
Max. GPU Clock (Base)    2400 MHz
Max. GPU Clock (Boost)    2970 MHz
Max. Memory Clock    20000 MHz
External Ports
Display Connectors    HDMI (1x), Display Port (3x)
Internal Ports
Required Power Connectors    8-pin PCIe (2x)
GPU Model
GPU Series Name    AMD Radeon RX 9070 XT
Graphics Chip    Navi 48
Manufacturing Process    4 nm
Shader Units    4096
Raytracing Cores / Ray Acceleratorss    64
GPU Memory Type    GDDR6
Slot Type Standard    PCIe 4.0
Compute Units    64
GPU Memory Size (GB)    16
GPU Memory Interface (bit)    256
