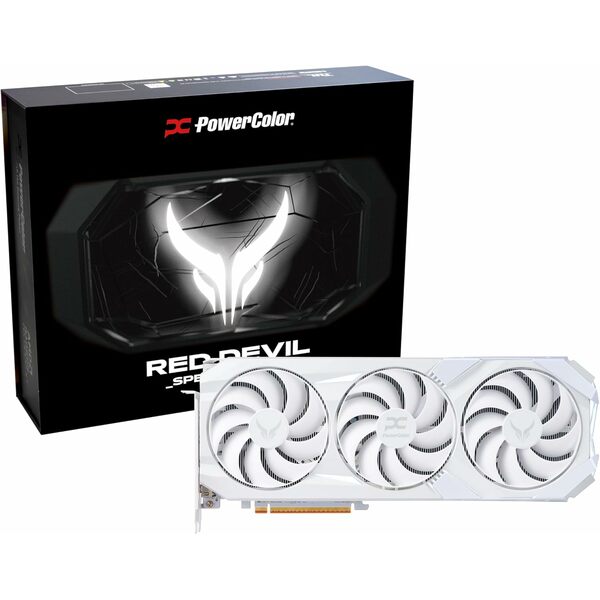

POWER COLOUR PowerColor Radeon RX 9070 XT OC Red Devil White

Description

EAN CODE 4713436175933
Bus Standard PCIE 5.0 x16
Graphics Engine RX9070XT 16G-E/OC/WHITE
Display Connectors 1 x HDMI 2.1, 3 x DisplayPort 2.1a
Video Memory 16GB GDDR6
Form Factor ATX
Stream Processor 4096 Units
Cooler 3 Slot Triple Fan
Game Clock 2520 MHz(OC)/ 2460 MHz(Silent)
Power Connector Three 8-pin PCI Express Power Connector
Engine Clock Boost 3060 MHz(OC)/ 3010 MHz(Silent)
OpenGL Support 4.6
DirectX® Support 12
Memory Speed 20.0 Gbps
Minimum System Power 900W
Memory Interface 256-bit
Card Dimension (mm) 340*132*69mm, 352*149*69mm (w/bracket)
Accessories Bundle Graphics Card Keycap, Graphics Card Holder, Graphics Card Remover, Limited Red Devil Sticker, Addressable RGB LED Cable, Product Description Card, Gaming Gear Intro Card
Notes * `Game Clock` is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* `Boost Clock` is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.


Specifications
Colour
Primary Colour White

Standards / Specifications
Adaptive Sync Technology (G-SYNC / FreeSync) AMD Freesync

Dimensions
Length / Depth 340 mm
Width 132 mm
Height 69 mm

Water Cooling
Watercooling No

Lighting
Lighting / RGB Yes
Expansion Slots
Expansion Slots Required 3 Slots

Graphics Card
GPU Series RX 9000 Series

Cooling
Number of GPU Fans 3
Clock Speeds
Max. GPU Clock (Base) 1660 MHz
Max. GPU Clock (Boost) 3060 MHz
Max. Memory Clock 20000 MHz

External Ports
Display Connectors HDMI (1x), Display Port (3x)

Internal Ports
Required Power Connectors 8-pin PCIe (3x)

GPU Model
GPU Series Name AMD Radeon RX 9070 XT
Graphics Chip Navi 48
Manufacturing Process 4 nm
Shader Units 4096
Raytracing Cores / Ray
