Description
Design and build a gaming PC with a unique look and enhanced thermal performance, with the Phanteks EX5 MAX PC Case. This chassis boasts an innovative compartmentalised design, which separates key components from one another, while still facilitating hardware such as ATX motherboards, full sized GPUs, and large PSUs. Furthermore, these components can be cooled directly by their on-board thermal solutions, reducing the requirements for external fans. Not only does this deliver improved cooling compared to traditional case designs, but it also offers a unique aesthetic to your computer. Additionally, this chassis comes with a pre-installed AIO cooler that features a stylish 6`` LCD screen, making set-up easier and adding a personalised touch to your build.
Phanteks EX5 MAX Mid-Tower Case at a Glance:
Innovative mid-tower PC case with a compartmentalised layout
Compatible with Mini-ITX to ATX motherboards
Motherboard, GPU, and PSU each housed in individual chambers for direct cooling
Supports 3.5-slot GPUs up to 358mm long
Enhanced thermal performance requiring only four 120mm fans
Comes with a pre-installed 360mm AIO that boasts a 6`` LCD
Who is the Phanteks EX5 Tower Case Perfect For?
Gamers that want incredible cooling performance
Streamers that desire a unique showpiece for their set-up
PC builders looking to optimise cooling with minimal fans
Phanteks EX5 MAX
An Innovation on the PC Case Design

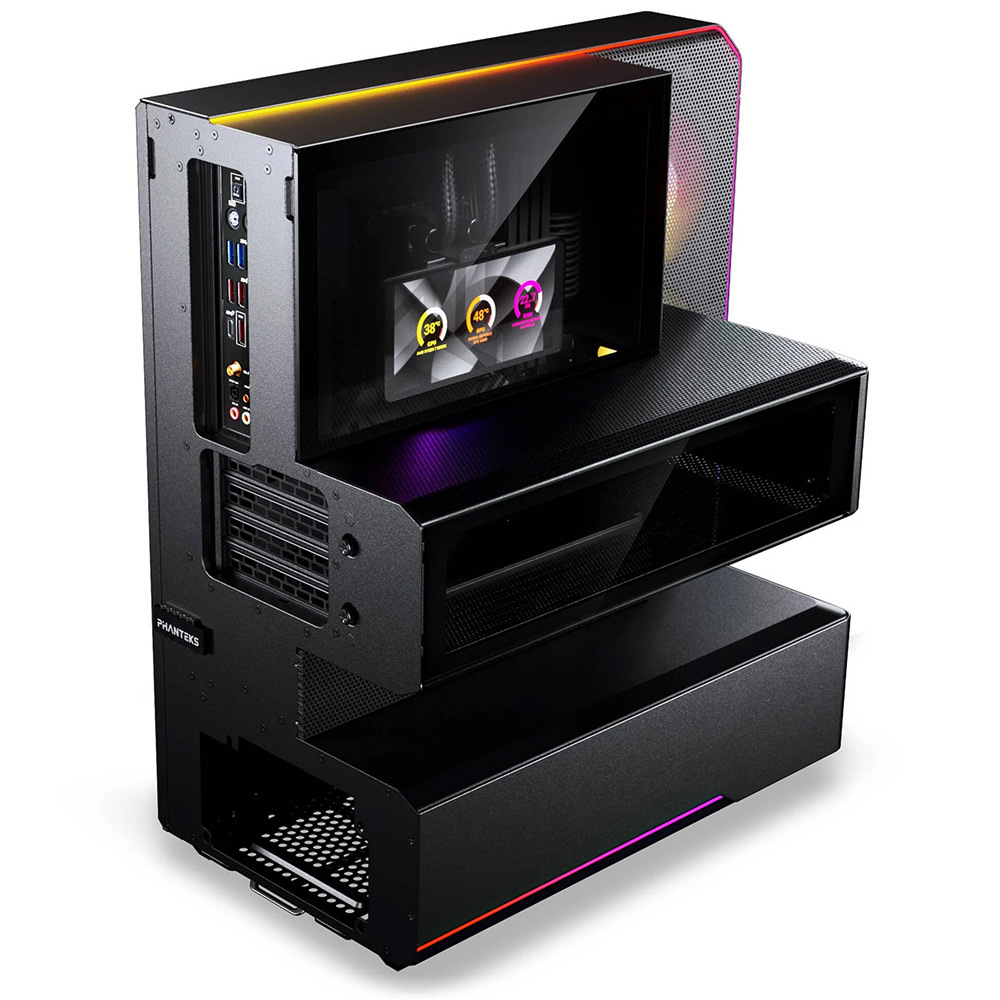

The Phanteks EX5 MAX PC Case steps away from the box design of traditional PC cases. Instead, this chassis utilises a unique compartmentalised layout, with key components each housed in their own chambers.
Inside the main chamber of the EX5 you can install a motherboard and other key components, such as your CPU, RAM, and M.2 storage drives. Meanwhile, your GPU will sit in its own unit designed to accommodate modern full-sized graphics cards. At the base of the case is the third chamber, where an ATX PSU up to 210mm long and a 2.5” SSD and 3.5” HDD can be installed.
Superior Cooling, Fewer Fans
With your hardware separated from one another, cooling requirements are kept to a minimum with the Phanteks EX5 MAX PC Case. In fact, to keep a computer cool with this case, you`ll only need four 120mm fans! The first fan is directly mounted behind the motherboard. This creates airflow directly at the back of the board, where it can then spread out to the sides. From here it will then travel out and around the edges of your motherboard, then exiting out of the front of the case. By doing this, the EX5 directly cools your CPU, VRMs, and RAM.
Phanteks EX5 MAX Case

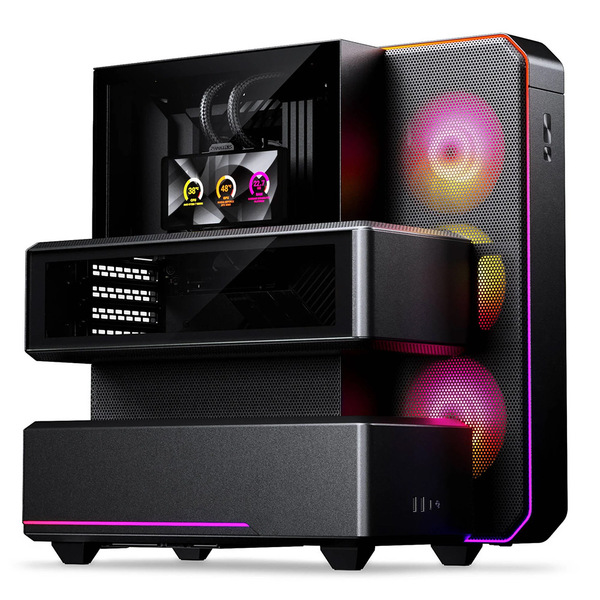

Additionally, the EX5 MAX comes with a pre-installed AIO cooler located to the side of the motherboard tray. This comes with a unified set of three 120mm S25 fans. These feed fresh air through the radiator to maximise your CPU cooling performance. Plus, the pump cap of this AIO features a stylish 6`` LCD screen, displaying system metrics or for adding a personalised touch to your computer.
The chambers for your GPU and PSU are designed to facilitate direct cooling to each component, utilising their on-board thermal solutions. They feature porous mesh panels, which offer excellent access to cool fresh air. As such, all your hardware can be kept cool without utilising the exhaust from other components.
Secure Mounting for Large GPUs
A modern GPU can be comfortably mounted inside the Phanteks EX5 MAX PC Case. The innovative GPU chamber offers excellent support with three PCIe slots and a GPU clearance of 358mm. This accommodates most modern GPUs, even high-end models such as an NVIDIA 5090.
What`s more, any graphics card installed inside the case will be held firm and kept safe from external damage. Your GPU is secured in place by a pair of mounting brackets, reducing the chance of jostling from the PCIe socket or sagging under its own weight. Furthermore, your graphics card will be protected from external damage from any knocks or bumps, by the robust shell of the GPU chamber. This has been constructed from aluminium and tempered glass to provide maximum protection.
Clean Looks and Vibrant Lighting
Alongside the unique look, the Phanteks EX5 MAX PC Case is an incredible option for building a super clean gaming PC. This unique layout is designed to conceal excess cables and pipes, reducing visible clutter. In fact, any pipes from an AIO can be routed along the top of the case to the radiator mount, where they are hidden by strategically positioned panels. Meanwhile, the rear offers ample space for cable management, while the PSU chamber can be used for storing excess wires.
Adding a splash of colour to your PC, this case features excellent support for ARGB lighting. Integrated into the chassis are a pair of lighting strips. The first is located at the base of the PSU chamber, while the second stretches the full length of the AIO chamber. Additionally, should your GPU feature RGB LEDs, these can be displayed through the tempered glass panel on the side of the chamber.
Colour
Primary Colour
Black
Dimensions
Length / Depth
449 mm
Width
234 mm
Height
474 mm
Case
Case Type
Mid Tower
Motherboard Support
Compatible Motherboard Formats
ATX, Micro-ATX, Mini-ITX
Max. Motherboard Format
ATX
Internal Dimensions
Max. CPU Cooler Height
78 mm
Max. GPU Length
358 mm
Max. PSU Length / Depth
210 mm
Display
Display Included
Yes
Display Size in Inch
6 "
Display Resolution
1480 x 720 Pixels
Display Refresh Rate
60 Hz
Display Panel Type
IPS
Screen Brightness SDR / normal
250 cd/m²
Power Supply
PSU included
No
PSU Format
ATX
Power Supply Position
rear bottom
Cable Specifications
Riser Cable Included
No
Fan Support
Case Fan Support (Side)
120mm Fan (4x)
Max. Number of Fans
1
120 mm fans
4
Radiator Support
Max. Radiator Compatibility
1x Triple (360 mm)
Radiator/AIO Support (Side)
360mm Radiator
Drive Bays
Max. 2.5 Inch Drives
1
Max. 3.5 Inch Drives
1
Max. 5.25 Inch Drives
0
Hot swap drive bays
No
External Ports
Front I/O – USB Type C Ports Total
1
Front I/O – USB Type A Ports Total
2
USB 3.2 (external) Type C
1
USB 3.0 (external) Type A
2
Audio outputs & inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Case Features
I/O position
Front
Side panel
with window
Vertical GPU Mount
No
Adjustable Vertical GPU Bracket
No
Front door
No
Cable Management
Yes
Filters Included
Yes
Noise dampening
No
Mainboard slide / tray
No
Transport System
No
Back Connect
Back Connect
No
Expansion Slots
Expansion slots / PCI slots
4
Features
Housing Feedthrough
No
Compatibility
Compatibility Note
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
Connectivity
Card reader
No
Fan Header
Fan Controller / Fan Hub
No
Mounting
Case VESA Mountable
No
Internal Monitor Mount
No
Materials
Materials
ABS, Steel, Tempered Glass
Lighting
Lighting / RGB
Yes
RGB Controller
No
RGB Type
ARGB / DRGB
Product Series
Product Series/Family
EX
Additional Contents
Fans Included
Yes
Included fans
4x 120 mm
