Description
Minimum System Requirements
PCI Express-compliant motherboard with one dual-width x16 graphics slot
600 W or greater PSU with ATX 3.X spec
One 8-pin supplementary power connector
Microsoft Windows® 11, Windows® 10 64-bit, Linux 64-bit
NV Features
Dedicated Ray Tracing Cores
Dedicated Tensor Cores
NVIDIA DLSS
Game Ready and NVIDIA Studio Driver
NVIDIA® APP
NVIDIA Broadcast
NVIDIA G-SYNC®
PCI Express® Gen 5
Microsoft DirectX® 12 Ultimate
Vulkan 1.4, OpenGL 4.6
HDCP 2.3
DisplayPort 2.1b with UHBR20: up to 4K 480Hz or 8K 165Hz with DSC
HDMI 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR
Clock Speeds
Max. GPU Clock (Base) 2407 MHz
Max. GPU Clock (Boost) 2572 MHz
Max. Memory Clock 28000 MHz
External Ports
Display Connectors HDMI (1x), Display Port (3x)
Internal Ports
Required Power Connectors 8-pin PCIe (1x)
GPU Model

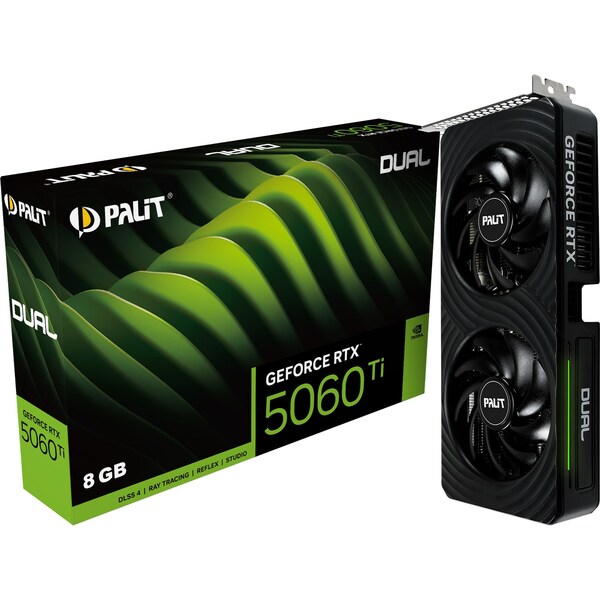

GPU Series Name NVIDIA GeForce RTX 5060 Ti 8GB
Graphics Chip GB206-300
Manufacturing Process 5 nm
Shader Units 4608
Tensor Cores 144
Raytracing Cores / Ray Acceleratorss 36
GPU Memory Type GDDR7
Slot Type Standard PCIe 5.0
GPU Memory Size (GB) 8
GPU Memory Interface (bit) 128
GPU Memory Bandwidth (GB/s) 448
GPU Effective Memory Clock (MHz) 1750
Warranty : 2 Year Palit Warranty
