Description

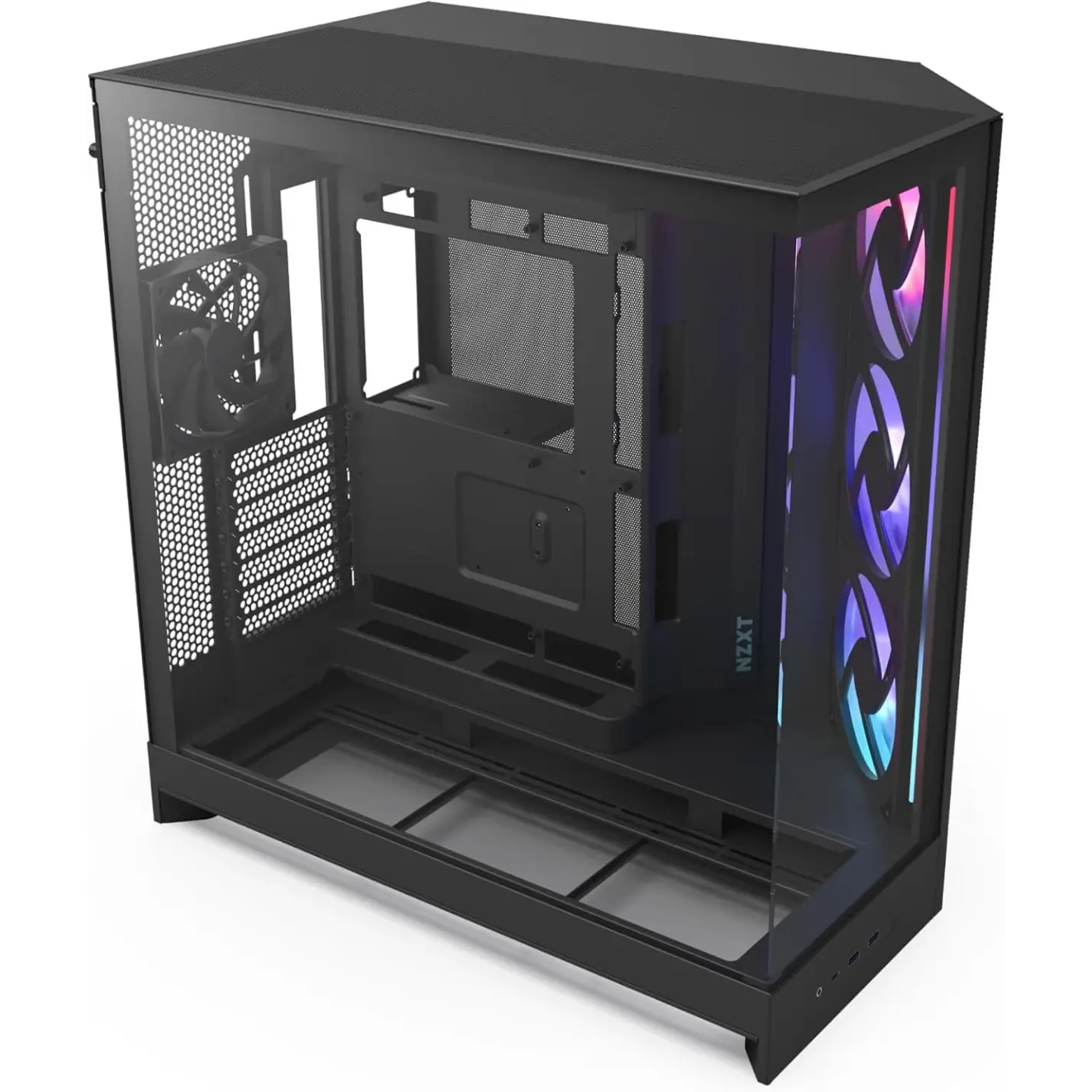

The H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.
Main Features
Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management.
Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.
Pre-Installed Fans: Includes one F420 RGB Core single-frame fan unit in the front-right and one F120Q (CV) fan in the rear. CV = Case Version (3-pin DC)
Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.
Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling.
Large Radiators & GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.
Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.
Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.
Storage
Internal Expansion Bays 4 x 2.5"
2 x 2.5"/3.5"
Expansion
Expansion Slots 7 x Full Height
Interfaces/Ports
USB Ports 1 x USB-C 3.2
2 x USB 3.0
Headphone Ports 1 x 3.5mm COMBO Jack
Microphone In Port Shared with Headphone
Electrical
Cooling System Front: Supports 3 x 140mm or 120mm fans (3 x 140mm ARGB fans included)
Top: Supports 3 x 140mm or 120mm fans
Bottom: Supports 3 x 140mm or 120mm fans
Rear: Supports 1 x 120mm fan (included)
Power Supply ATX Power Supply supported
Physical
Form Factor Mid Tower Case
Case Colour White
Material SGCC Steel
Tempered Glass
Motherboard Compatibility E-ATX (up to 277mm)
ATX
mATX
Mini-ITX

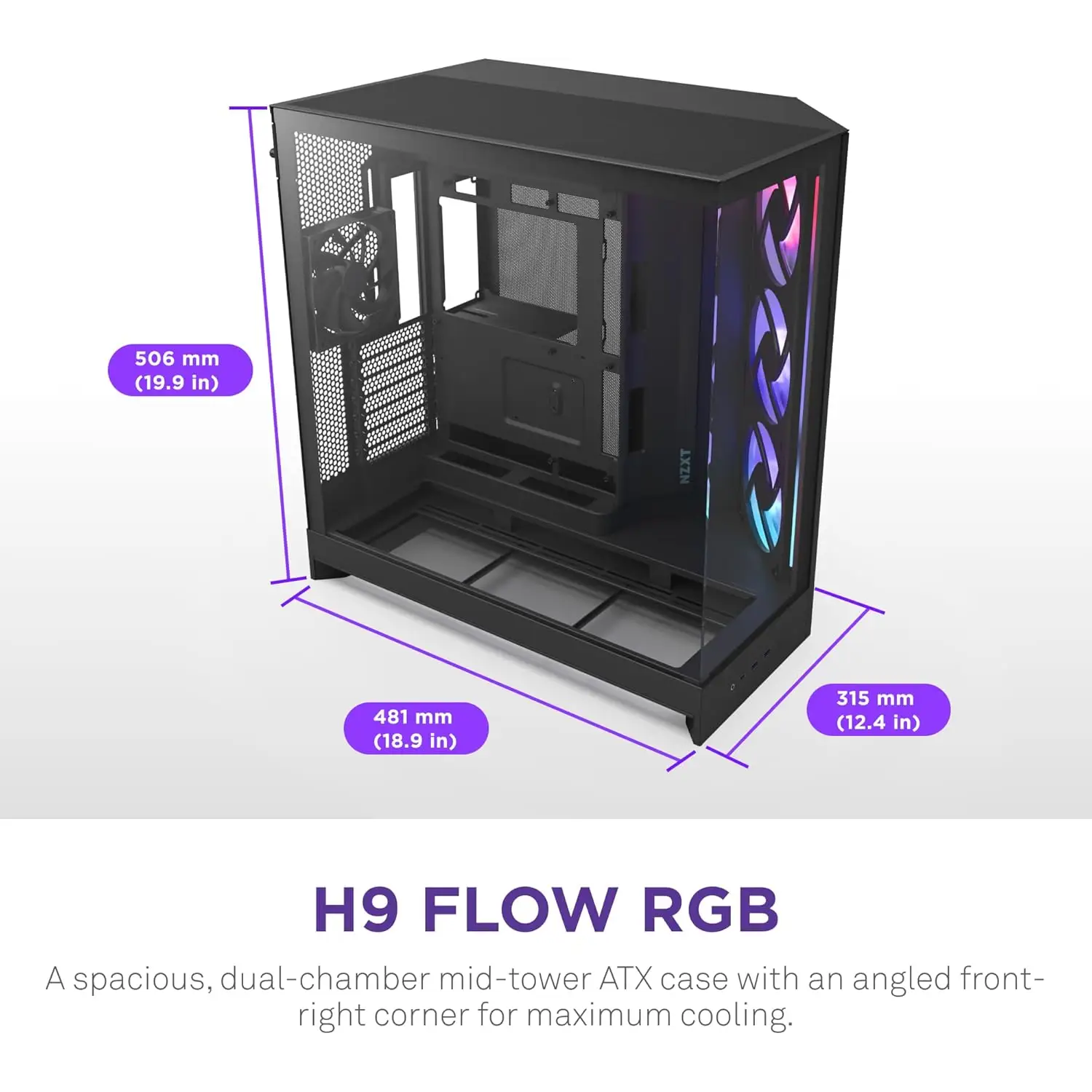

Width 315 mm
Depth 481 mm
Height 506 mm
Weight 12.6 kg
Warranty: 2 Year
