Description

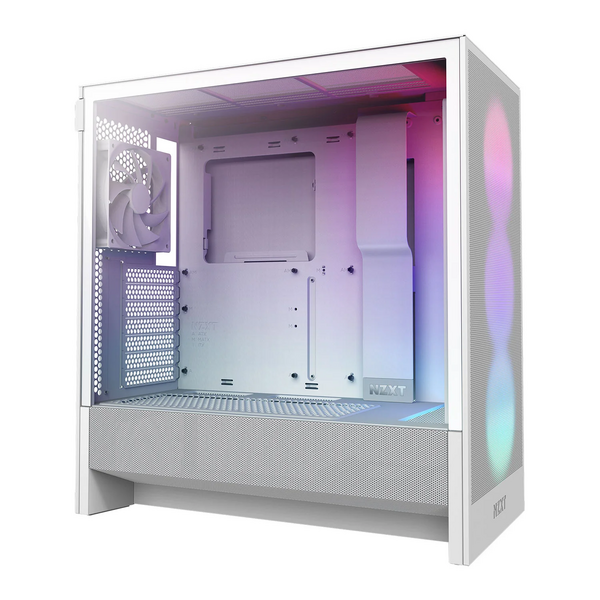

The H5 Flow RGB boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.
The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.

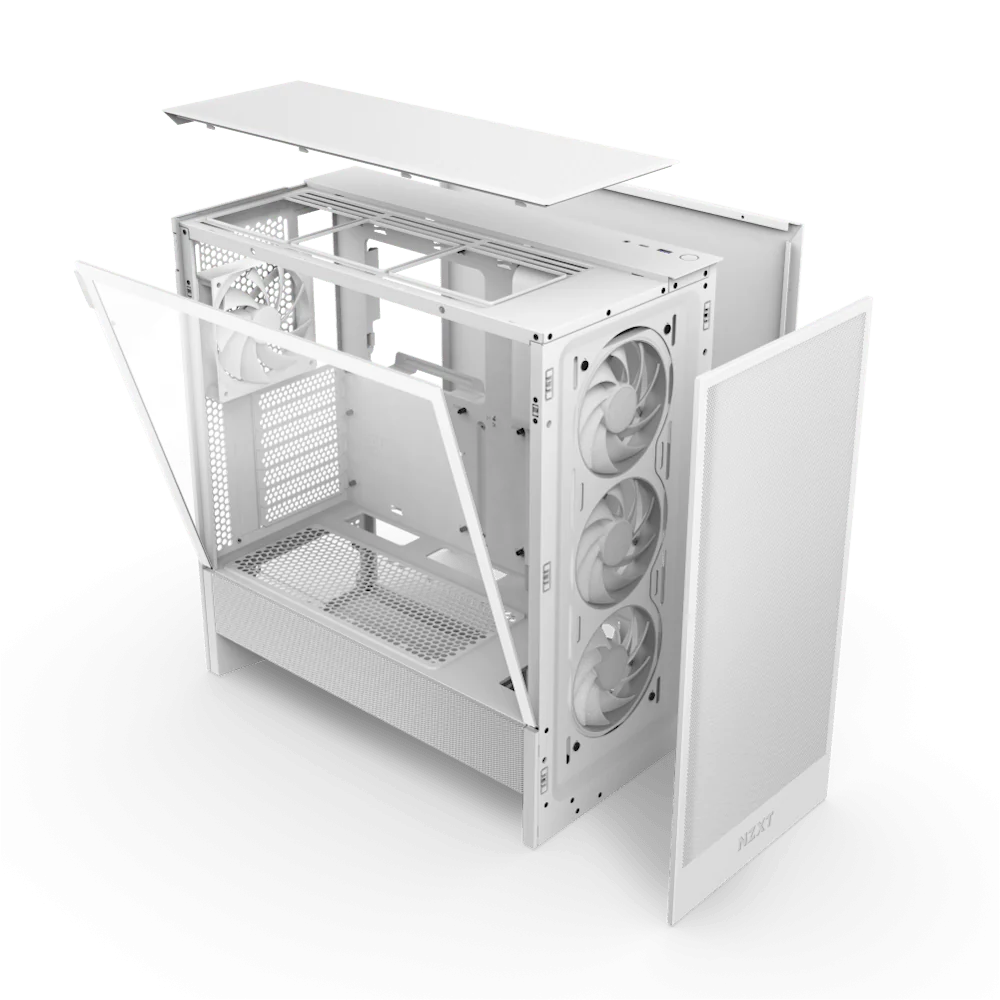

Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
Equipped with a front-mounted F360 RGB Core (CV) single-frame fan and rear-mounted F120Q (CV) fan for strong out-of-the-box cooling and lighting.
Effortlessly route and conceal cables using the wide channels, hooks, and straps.
- Key Features
Motherboard Support: E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
Enclosure Type: Mid-Tower
Case Material: SGCC Steel, Dark Tinted Tempered Glass
- Dimensions
Height (with feet):465 mm / 18.31 in
Width:225 mm / 8.86 in
Depth:430 mm / 16.93 in
Weight:7.63 kg / 16.82 lb
- Compatibility & Clearance
CPU Cooler Height: Up to 170 mm
GPU Length: Up to 410 mm
PSU Length: Up to 200 mm
Cable Management: Up to 28.7 mm
Top Radiator: Up to 240 mm (280 mm with low-profile memory)
Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness:Up to 55 mm
- Front Ports
USB 3.2 Type-A:1
USB 3.2 Gen 2x2 Type-C (20 Gbps):1
Headset Audio Jack:1
- Expansion Slots
Standard:7
Vertical:0
- Drive Bays
2.5":2
3.5":1
- Fan Support
Front:3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included)
Top:2 x 120 mm / 2 x 140 mm
Bottom:2 x 120 mm
Rear:1 x 120 mm (1 x F120Q Case Version included)
- Radiator Support
Front:Up to 360 mm
Top:Up to 240 mm (280mm with low-profile memory only)
- Fan Specs
Model:F360 RGB Core (Case Version)
Speed:1,700 ± 200 RPM
Airflow:50.1 CFM
Static:1.27 mm-H?O
Noise:23.3 dBA
Fan Connector:3-pin
- Fan Specs
Model:F120Q (Case Version)
Speed:1,350 ± 150 RPM
Airflow:60.2 CFM
Static:1.05 mm-H?O
Noise:24.1 dBA
Fan Connector:3-pin
