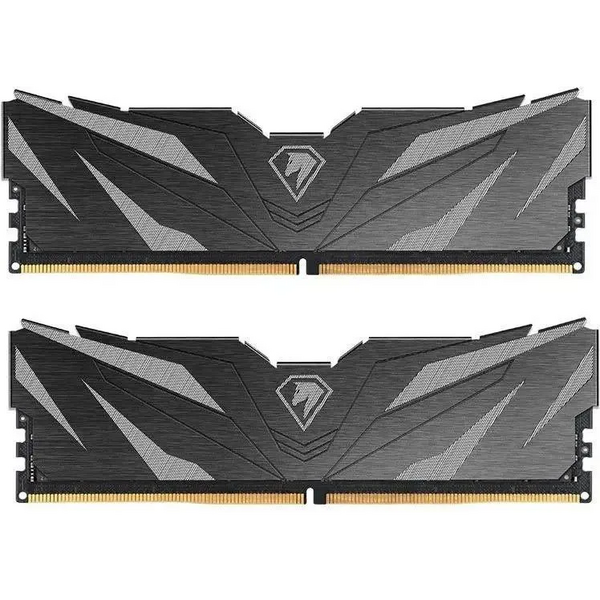

NETAC Shadow II Black 32GB Kit (2 x 16GB), DDR5, 5600MHz, CL46, XMP 3.0, ECC, PMIC, DIMM Memory

Description

Shadow II DDR5 Black
Netac Unbuffered DDR5 SDRAM DIMMs (Unbuffered Double Data Rate Synchronous DRAM Dual In-Line Memory Modules) are low power, high-speed operation memory modules that use DDR5 SDRAM devices. Each 288- pin DIMM uses gold contact fingers. The SDRAM Unbuffered DIMM is intended for use as main memory when installed in systems such


Energy Saving with PMIC independent power management chips
Specially designed aluminium alloy heat Spreader
BL16, BC8 OTF, BL32, BL32 OTF supported
Same Bank Refresh
Input Clock Frequency Change
Multi-Purpose Command (MPC)
Per DRAM Addressability (PDA)
Connectivity Test (CT) / ZQ Calibration
DFE (Decision Feedback Equalization) for DQ
DQS Interval Oscillator
On-Die ECC
CRC (Cyclic Redundancy Check)
Package Output Driver Test Mode
PCB: Height 1.23” (31.25mm)
RoHS Compliant and Halogen-Free
Limited Lifetime Warranty


DescriptionSpecification

Series: Netac Shadow II
DDR Type: DDR5
Size: 2 x 16GB
#Hide#Individual Module Size: 16GB
#Hide#Total Capacity: 32GB Total
Speed: 5600 MHz
Compliance: PC5-44800
Pins: 288-pin
CAS Latency: CL46
Intel XMP Certified: Yes (Intel XMP)
Data Integrity Check: On-die ECC
Voltage: 1.1V
Timings: 46-45-45-90
Heatsink: Yes (Heatsink)
Heatsink Details: Aluminium Alloy Heat Spreader
#Hide#LED Lighting: No
LED Lighting: -
Additional Information: See Overview
Package Type: Retail
Package Weight: 0.1500 kg
Warranty: Lifetime
