Description

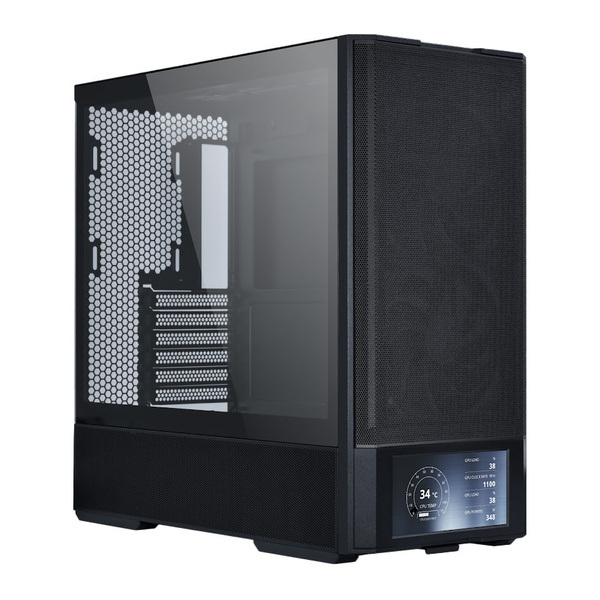

The Lian Li Lancool 207 Digital Micro-ATX case levels up the base model chassis, with the addition of a 6" LCD screen. This case still utilises a compact form factor, with an innovative internal layout that delivers excellent support for larger hardware, including ATX motherboards and PSUs. However, the 207 Digital also features a 60Hz 720 x 1600 screen at the base of the front panel that can be used to display real-time system information, such as CPU temperatures, GPU clock speeds, or RAM usage. What’s more, you can customise this screen with personalised images or videos to create a unique aesthetic. A PC built with the Lian Li Lancool 207 Digital will boast excellent thermal performance, as it is equipped with three large mesh panels which offer outstanding airflow. This is enhanced further by four pre-installed fans that deliver amazing airflow and high static pressure, perfect for maintaining optimum temperatures.
Lian Li Lancool 207 Digital M-ATX case at a Glance:
Compact size of 456mm x 219mm x 455.6mm (HxWxD)
Supports full sized components such as ATX motherboards and PSUs
Two 140mm and two 120mm PWM fans pre-installed
6" 60Hz display for real-time system monitoring
Top mount facilitates radiators with push/pull fan configurations
Adjustable anti-sag bracket is compatible with GPUs from 285mm to 375mm long
Small Case, Big Ideas
The Lian Li Lancool 207 Digital boasts a compact form factor, measuring 456mm high, 219mm wide, and 455.6mm deep. Thanks to this small size, it is an ideal choice for gamers who have limited desk space but don’t want to compromise on performance or aesthetics. The Lancool 207 Digital is equipped with several innovations that allow it to facilitate ATX sized hardware and components.
One of these is moving the power supply from the standard rear mounting point to the front of the case. As a result, the chamber directly beneath the motherboard tray can be reduced in height, allowing for a full size ATX motherboard to be installed. This small chamber is compatible with up to two 3.5" HDDs, has plenty of room for cable management, and offers ample access to fresh air for cooling. What’s more, this has no impact on the PSU chamber itself, which continues to boast compatibility with ATX power supplies up to 160mm in length.
A Case Levelled Up
Not only does the Lian Li Lancool 207 Digital case offer excellent support for powerful gaming hardware, but it also allows you to easily monitor your computer’s health. Equipped with a 6" LCD screen at the bottom of the front panel, you can monitor your system performance in real-time. This screen boasts a 720 x 1600 resolution, a 60Hz refresh rate, and can produce 500 nits of brightness.
You can customise what is shown on this LCD using Lian Li L-Connect 3 software. This powerful program is equipped with a suite of tools for monitoring your PC’s metrics, such as CPU load, GPU clock speeds, RAM usage, and component temperatures. These can then be displayed on the 6" LCD using a variety of stylish preset themes. Alternatively, you can create your own personalised theme for the display, as L-Connect 3 features the option to upload images or videos.
Top Tier Cooling
The Lian Li Lancool 207 Digital can deliver outstanding cooling potential out of the box, as it includes highly porous mesh on the front and top panels, as well as the side of the PSU chamber. This provides the Lancool 207 ample access to fresh air.
To facilitate airflow, there are four pre-installed high-performance cooling fans. At the front of the case are two 140mm 30mm thick fans, which deliver 109.3CFM of airflow at a static pressure of 3.3mmH2O. The second set of fans are located on top of the PSU chamber. Both fans measure 120mm x 120mm x 25mm (HxWxD) and utilise an 11-blade design. This enables them to deliver 71.1CFM of airflow, with a static pressure of 1.99mmH2O. They are perfectly positioned to channel cool air directly into your GPU, ensuring it can maintain optimum thermals even during the most epic battles.
What’s more, there is ample room to install even more cooling hardware. The rear of the case can accommodate a single 120mm fan, and the top has room for either two 140mm or three 120mm fans. The top of the Lian Li Lancool 207 Digital can even facilitate a radiator up to 360mm long, with six fans installed in a push/pull configuration, perfect for keeping the most powerful CPUs cool when under load.
Specifications-
Internal Dimensions
Max. CPU Cooler Height 180 mm
Max. GPU Length 375 mm
Max. PSU Length / Depth 159 mm
Lighting
Lighting / RGB No
Back Connect
Back Connect No
Case Features
I/O position Front / Lid
Side panel with window
Vertical GPU Mount Yes
Adjustable Vertical GPU Bracket Yes
Front door Yes
Cable Management Yes
Filters Included Yes
Noise dampening No
Mainboard slide / tray No
Transport System No
Colour
Primary Colour Black
Motherboard Support
Compatible Motherboard Formats Mini-ATX, ATX, Micro-ATX
Max. Motherboard Format ATX
Power Supply
PSU included No
PSU Format ATX
Power Supply Position side
Fan Header
Fan Controller / Fan Hub No
Radiator Support
Max. Radiator Compatibility 360
Dimensions
Length / Depth 455.6 mm
Width 219 mm
Height 456 mm
Weight 9 kg
Drive Bays
Max. 2.5 Inch Drives 2
Max. 3.5 Inch Drives 2
Max. 5.25 Inch Drives 0
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined) 2
Hot swap drive bays No
Mounting
Case VESA Mountable No
Internal Monitor Mount No
Materials
Materials Steel, Tempered Glass
Fan Support
Max. Number of Fans 6
120 mm fans 6
140 mm fans 4
Features
Housing Feedthrough No
Expansion Slots
Expansion slots / PCI slots 7
Case
Case Type Mid Tower
Display
Display Included Yes
External Ports
USB 3.1 (external) Type C 1
USB 3.0 (external) Type A 2
Audio outputs & inputs 1x output + 1x input (3.5 mm jack, 3-pin, TRS)
Card reader No
Cable Specifications
Riser Cable Included No
