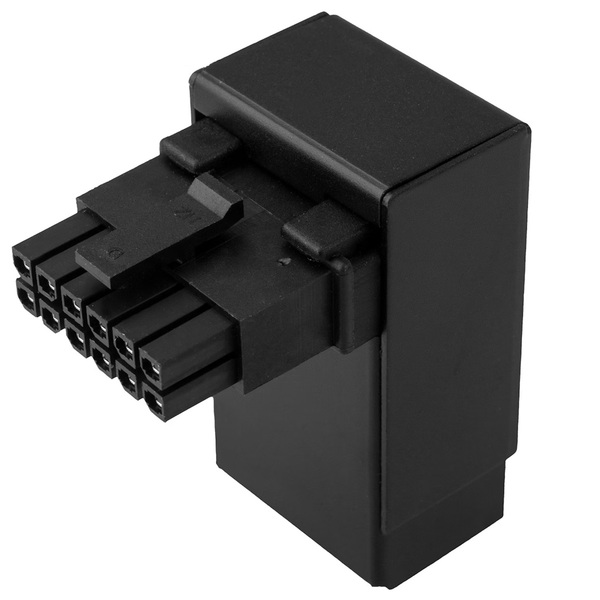

KOLINK Core Pro 12VHPWR 16-Pin 90 Degree Adapter - Type 2

Description

Ensure secure connectivity for your GPU with the Kolink Core Pro 12V-2x6 16-pin 90-Degree Adapter. This slim adapter is backwards compatible with 12VHPWR and eliminates the need for tight bends on your GPU cable. Constructed with conductive materials, you can enjoy consistent and reliable performance, whilst also keeping your cable runs clean.

Kolink Core Pro 12V-2x6 16-Pin 90 Degree Adapter - Type 2 at a Glance:
90° angled adapter for 12V-2x6 16-pin connectivity
Designed for RTX 3090 Ti, 4070 Ti, 4080, 4090, and other 12VHPWR GPUs
Metal casing with internal thermal dissipation and compact dimensions
Backwards compatible with 12VHPWR
Eliminates loose connections and cable bending
Available in black or white
12V6x2 16-pin Adapter
The Kolink Core Pro 12V-2x6 16-pin 90-Degree Adapter allows for the secure connection of GPUs to any 12V2x6 or 12VHPWR cable. It eliminates the need for tight bends of these high-wattage cables and is ideal for use in compact cases, especially thanks to its slim sizing.

The casing is metal with effective internal dissipation. Both the PCB and terminals are manufactured from copper, chosen for its conductive properties.

The Kolink Core Pro 12V-2x6 16-pin 90-Degree Adapter has been designed to be used with high-performance GPUs with 12VHPWR. This includes the RTX 3090 Ti, 4070 Ti, 4080, 4090, and other 12VHPWR graphics cards.

Type 2
There are two versions of the Kolink Core Pro 12V-2x6 16-pin 90-Degree Adapter, Type 1 and Type 2. This is the Type 2 edition, where the sense pins are featured on the bottom of the 12V2x6 connector and generally points up when connected to your GPU.

Both types are available in either black or white. This is the black model, a seamless addition to any gaming PC.

Specifications
expand_less
Angle
Connector angled Yes
Cable Specifications
Cable Type Adaptor
Connectivity
Connector 2 (internal) PCIe (12+4-Pin / 16-Pin) 12VHPWR SOCKET
Colour
Main colour connector / plug Black
