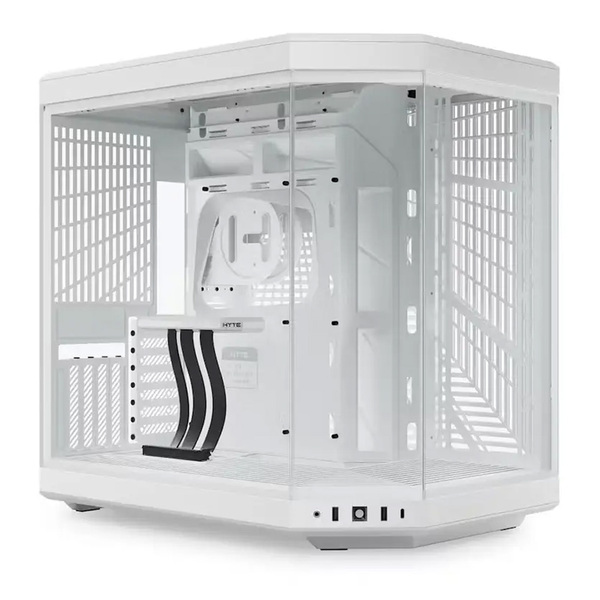

HYTE Y70 Dual Chamber Mid-Tower Atx Case - White

Description

- Y70 AT A GLANCE

Unified modern aesthetic which is available in 4 unique colours with a beautifully crafted 3-piece panoramic glass and dual chamber interior.
Massive 4 slot vertical graphics with an included luxury PCIE 4.0 x 16 riser which sports a colour-matched canopy for uninterrupted visual flow.
Ginormous cooling capacity with support for up to a 360mm radiator on the side (125mm thick) and adjustable top (68mm thick) of the case along with cold floor cooling that can fit either a trio of 120mm or duo of 140mm fans up to 32mm thick down below.
Exquisite detailing such as helpful labels, reusable Velcro straps, floating storage sleds, and clicky blue power switch are present throughout the case.
Premium build experience made possible by using the finest materials, tightest tolerances, and tool-less panels with extensive cable management space in the rear chamber of the chassis.

Y70 SPECIFICATION
Brand    HYTE
Model    CS-HYTE-Y70
Case Type    Dual Chamber Mid-Tower ATX Case
Motherboard Support    ITX, mATX, ATX, EATX
Volume    70.7 L
Dimensions (L x W x H)    470mm x 320mm x 470mm (18.5 x 12.6 x 18.5 Inches)
Materials    ABS, Steel, Tempered Glass
Max GPU Length    ATX up to 235mm
Max CPU Cooler Height    180 mm
Fan Support (Locations)    Side: 3x 120mm or 2x 140mm, Top: 3x 120mm or 2x 140mm, Rear: 1x 120mm or 1x 140mm, Bottom: 3x 120mm or 2x 140mm
Radiator Support    Side: Up to 360mm or 280mm long and 125mm thick, Top: Up to 360mm or 280mm long and 68mm thick, Rear: 120mm or 140mm
Drive Bays    2x 3.5`` HDD or 4x 2.5`` SSD
Expansion Slots    4 Vertical + 7 Half-Height
Front I/O Ports    2 x Front USB-A 3.2, 1 x Front USB-C 3.2, Audio/Mic Jack x 1
Dust Filters    Bottom, Side, Top
Warranty    3 Year Manufacturer Case Warranty

Specifications
Drive Bays
2.5 / 3.5 inch internal drive bay (combined)    4
Radiator Support
Max. Radiator Compatibility    360

- Colour See Listing Title

- Internal Dimensions
Max. CPU Cooler Height    180 mm
Max. GPU Length    422 mm
Max. PSU Length / Depth    235 mm

- Power Supply
PSU included    No
PSU format    ATX

- Lighting
Lighting    No
Fan / RGB control    No

- Expansion Slots
Expansion slots / PCI slots    7

- Case Features
I/O position    Front
Side panel    with window
Filters included    Yes

- Motherboard Support
Compatible motherboard formats    E-ATX, Mini-ATX, ATX, ITX
Max. Motherboard Format    E-ATX

- Additional Contents
Included fans    None
Case
Case Type    Midi tower

- Dimensions
Width    320 mm
Depth    470 mm
Height    470 mm

- External Ports
USB 3.2 (external) Type C    1
USB 3.0 (external) Type A    2
Audio outputs + inputs    1x output / input comb. (3.5 mm jack, 4-pin, TRRS)

- Fan Support
120 mm fans    10
140 mm fans    7
