Description
Key Features

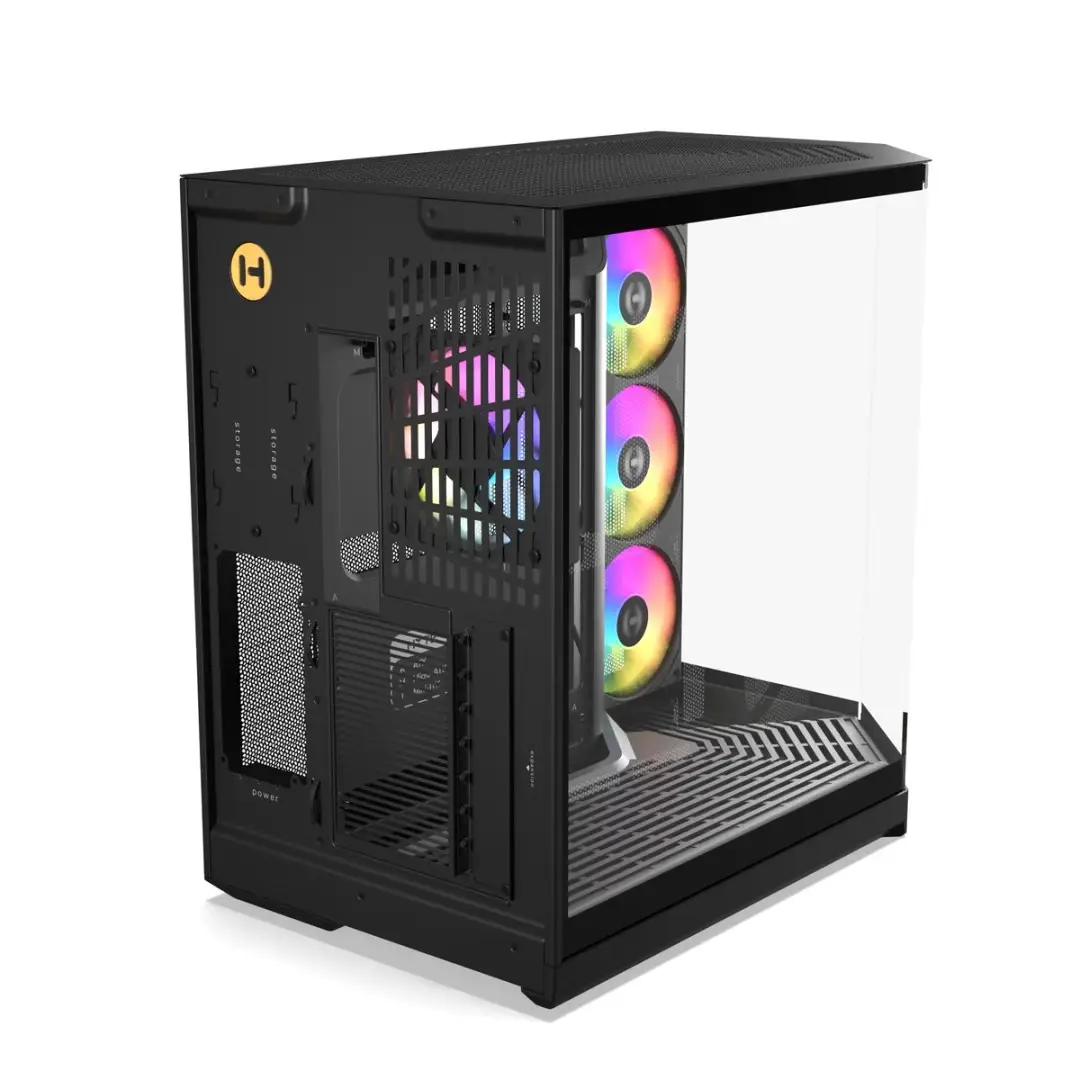

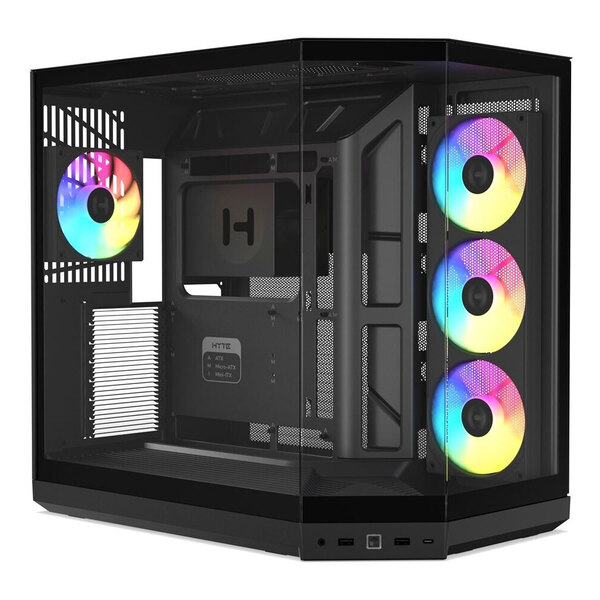

Dual-chamber ATX mid tower with three-piece panoramic tempered glass
Pre-installed 360mm reverse-blade ARGB side fan array and 120mm ARGB rear fan
Supports 360mm radiators on the top and side
Graphics cards up to 360mm long and CPU coolers up to 160mm tall
Rear-connect motherboard support for ASUS BTF, Gigabyte Project Stealth and MSI Project Zero
ATX power supplies up to 250mm in a separate rear chamber
Front I/O with USB-C 10Gbps, 2x USB-A 5Gbps and combo audio jack
Seven full-size expansion slots and flexible drive mounting
Graphics cards up to 360mm long and 170mm wide fit with ease, CPU air coolers up to 160mm tall are supported, and ATX power supplies up to 250mm long sit neatly in the rear chamber. Seven full-size expansion slots, flexible 3.5in and 2.5in drive mounting and a front I/O panel with USB-C 10Gbps, two USB-A 5Gbps ports and a combo audio jack complete a versatile, future-ready chassis.
General
Brand HYTE
Model Y50 RGB
Manufacturer Part Number CS-HYTE-Y50RGB
Case Type Dual-chamber ATX mid tower
Materials Steel, ABS, tempered glass
Side Panel Three-piece panoramic tempered glass
Compatibility
Motherboard Support E-ATX, ATX, Micro ATX, Mini-ITX; rear-connect ASUS BTF, Gigabyte Project Stealth, MSI Project Zero
GPU Clearance Up to 360mm length, 170mm width
CPU Cooler Height Up to 160mm
PSU Support ATX up to 250mm (225mm with rear-connect motherboards)
Expansion Slots 7x full-size
Cooling
Included Fans 1x 360mm reverse-blade ARGB (side), 1x 120mm ARGB (rear)
Fan Speed 200 - 1500 RPM, 8x ARGB LEDs per blade
Top 3x 120mm or 2x 140mm fans, radiator up to 360mm (46mm thick)
Side 3x 120mm fans, 360mm radiator (up to 83mm thick)
Rear 1x 120mm fan or 120mm radiator
Bottom 2x 120mm fans (up to 32mm thick)
Storage
3.5in Bays 2x
2.5in Bays Up to 6x (4x shared with 3.5in bays)
Front I/O
USB 1x USB-C 3.2 Gen 2 (10Gbps), 2x USB-A 3.2 Gen 1 (5Gbps)
Audio 1x 3.5mm combo jack
Dimensions
Dimensions (L x W x H) 47
