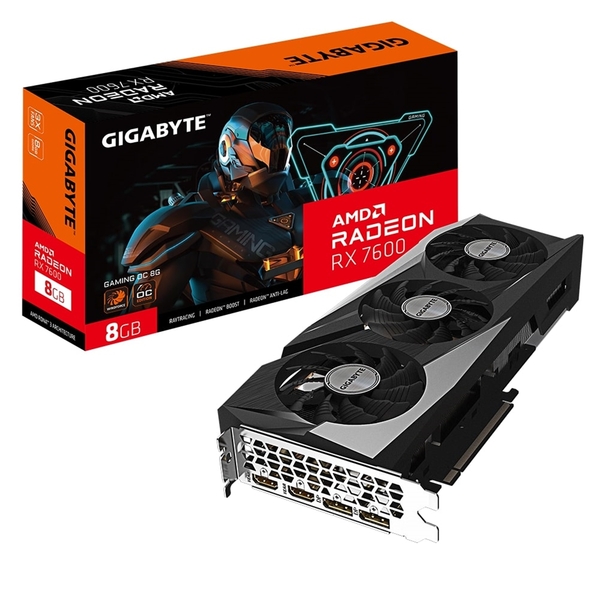

GIGABYTE Radeon RX 7600 Gaming OC 8GB Graphics Card

Description

KEY FEATURE

Powered by Radeon RX 7600
Integrated with 8GB GDDR6 128-bit memory interface
WINDFORCE cooling system
RGB Fusion
Protection metal back plate

CORE CLOCK
Boost Clock : up to 2755 MHz (Reference card: 2655 MHz)
Game Clock : up to 2355 MHz (Reference card: 2250 MHz)

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes directly touch the GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.

WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes directly touch the GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

GRAPEHENE NANO LUBRUICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter

HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards

Graphics Processing: Radeon™ RX 7600
Boost Clock: up to 2755 MHz (Reference card: 2655 MHz)
Game Clock: up to 2355 MHz (Reference card: 2250 MHz)
Stream Processors: 2048
Memory Clock: 18 Gbps
Memory Size: 8 GB
Memory Type: GDDR6
Memory Bus: 128 bit
Card Bus: PCI-E 4.0
Digital max resolution: 7680x4320
Multi-view: 4
Card size: L=282 W=115 H=50 mm
PCB Form: ATX
DirectX: 12 Ultimate
OpenGL: 4.6
Recommended PSU: 550W
Power Connectors: 8 pin*1
Output: DisplayPort 1.4a *2, HDMI 2.1a *2
Accessories: Quick guide
