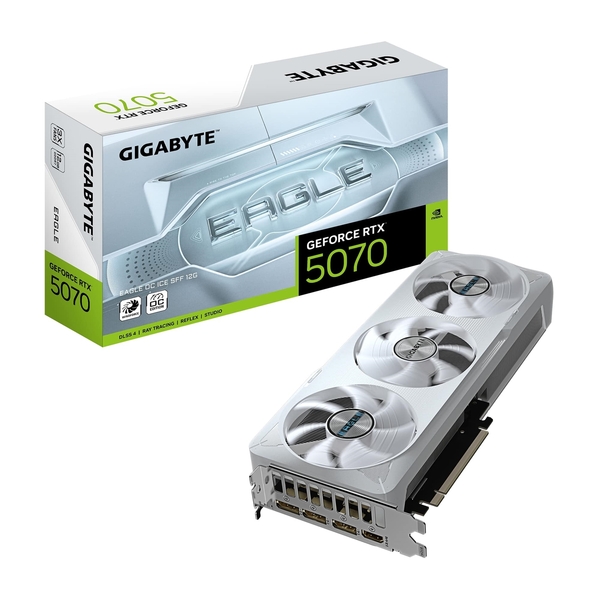

GIGABYTE NVIDIA GeForce RTX 5070 EAGLE ICE OC 12Gb Blackwell Graphics Card

Description

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5070
Integrated with 12GB GDDR7 192bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
NVIDIA SFF-ready
RGB Lighting
Reinforced structure

SPECIFICATION

Graphics Processing>
GeForce RTX 5070

Core Clock
2587 MHz (Reference card : 2512 MHz)

CUDA Cores
6144

Memory Clock
28 Gbps

Memory Size
12 GB

Memory Type
GDDR7

Memory Bus
192 bit

Card Bus
PCI-E 5.0

Digital Max Resolution
7680x4320

Multi-View
4

Card Size
TBD

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
TBD

Power Connectors
16 Pin x 1

Output
DisplayPort 2.1b x 3
HDMI 2.1b x 1

Accessories
Quick guide

Physical Card size
L=327 W=132 H=56 mm
