Description

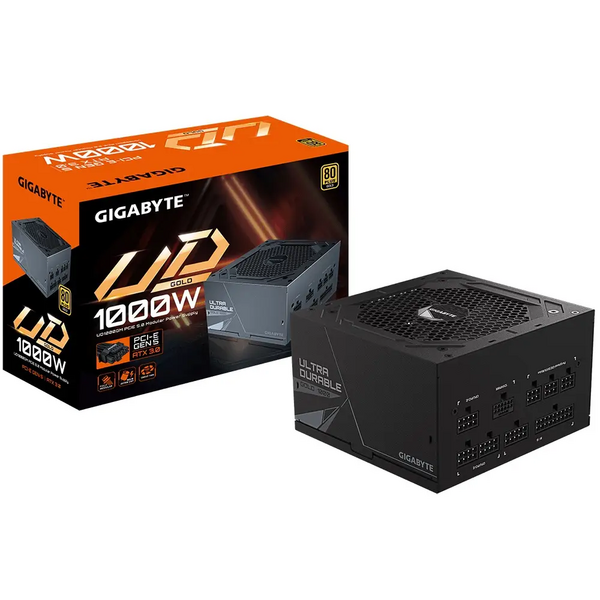

Gigabyte UD1000GM PG5
Power Supply
KEY FEATURES
- Ultra Durable:
- Main Japanese capacitors
- Enhanced thermal solution
- 120mm smart hydraulic bearing (HYB) fan
- OVP / OPP / SCP / UVP / OCP / OTP protection
- Support PCIe Gen 5.0 graphics card
- High-quality native 16-pin cable supports 600W output
- 80 PLUS Gold certified
- Fully modular design
- Compact design
- 10 years warranty
Model
GP-UD1000GM PG5
Type
Intel Form Factor ATX 12V
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
15-6.5A
Input Frequency
60-50 Hz
Wattage
1000W
Fan Type

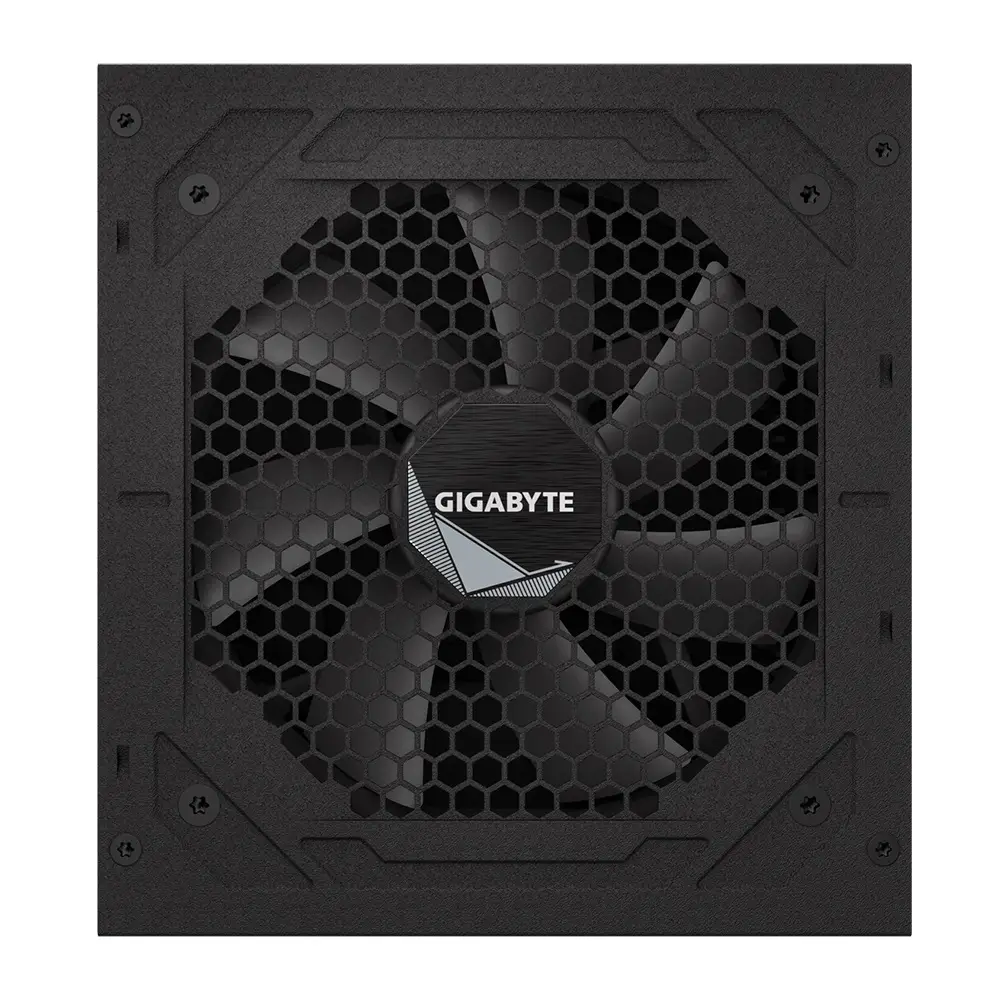

120mm Hydraulic Bearing (HYB) fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protection
OVP / OPP / SCP / UVP / OCP / OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Flat
All black
Connections
1 x 20+4 Motherboard pin
2 x 4+4 pin CPU
1 x 16-pin PCI-e
4 x 6+2 PCI-e
8 x SATA
3 x Peripheral
1 x Floppy
Product Dimension
150 x 140 x 86 mm
