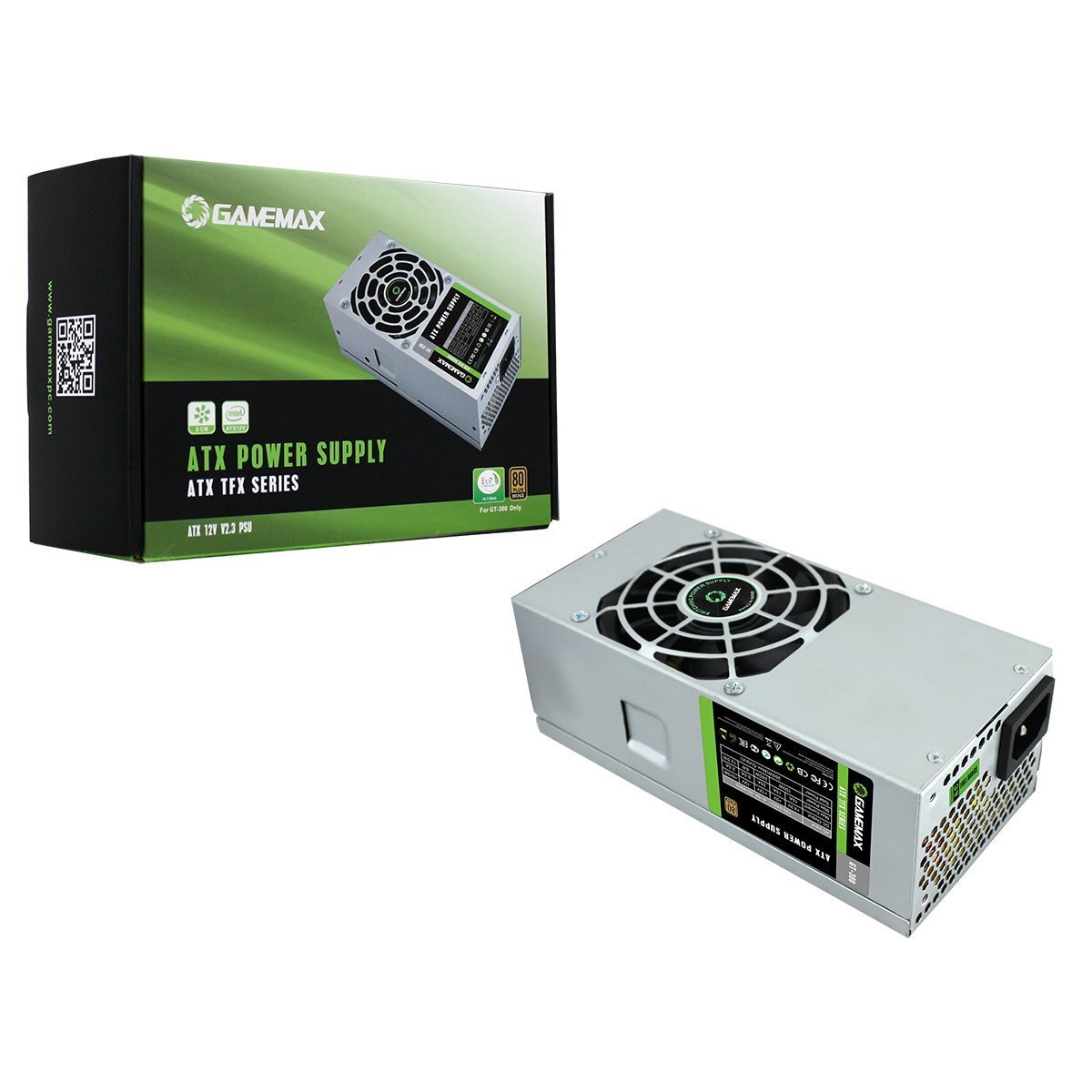

GAMEMAX Game Max 300w 80 Plus Bronze TFX Power Supply

Description

Description

The Game Max GT-300W TFX offers you the most suitable cost/performance ratio and is certified for 80 PLUS Bronze, this active PFC unit runs at a max. of 85% efficiency, making it the best choice for a system builder. The 12V CPU power is available for a high-end gaming system (with a 4 + 4 CPU connector), with its 3 x L shaped SATA connectors meaning you can use it in a compact desktop chassis. Finally there is full electrical protection and official safety is promised by Game Max.

Key Features


•Compatible with ATX 12V 2.3
•High-end SECC 0.6mm casing
•High-Efficiency ¨C 80+ 85% Certified
•Low Noise 8cm Fan with intelligent fan speed control
•Honeycomb ventilation design for optimal heat dissipation
•Active Power Factor rate up to 0.99
•OPP/OVP/UVP/SCP electrical protection included
•Safety / EMI Approvals: CE,FCC,CB


PSU Specifications



AC INPUT: 100-240 VAC 6~3A 50-60Hz
DC
Output
Max +3.3V +5V +12V1 -12V +5VSB
15A 15A 20A 0.5A 2.5A
300W total

Connectors



20+4 Pin Main Connectors:

1

4+4 Pin 12V Connectors:

1

SATA Connectors:

3

4-Pin Molex Connectors:

1



Detailed Specifications



Dimensions: 85mm x 65mm x 175mm (W x H x D)
Input Voltage: 100-240 VAC
Input Current: 6~3A
Input Frequency Range: 50-60Hz
PFC: Active PFC (>.99)
Power Good Signal: 100-500 ms
Hold Up Time: 1ms-40ms
Efficiency: > 81% (85% max)
MTBF: 100,000 Hours
Protection: OVP / UVP / OPP / SCP
Power: 300W
Operation Temperature: 0-40°C
Safety: CE / FCC / CB
Cooling: 8cm Fan
Noise: < 17 dBA
80 Plus Certified: Yes - 80 Plus Bronze

General Specifications



Manufacturer Part Number: GT-300
EAN Number: 6931858750035
Has Mains Plug: No
Colour: Silver
What's In The Box: Power Supply
Screws
2 x Cable Ties
1 x Velco Strap
1 x Manual
Unit (Product) Dimensions (mm): 85mm x 65mm x 175mm (W x H x D)
Packaging Dimensions (mm):
