GAMEMAX 4pin RGB RF Remote Control & Receiver With Touch Control Sata Power

Description

Description

The Game Max RF RGB Controller offers great control over your Game Max RGB Fans and LED strips. Using Radio Frequency instead of Infer red this give easier control from the handset. The handset also offers touch control and accurate colour changing of your system lighting at your fingertips. Easy connection hub makes this a simple task of connecting your fans and LED strips (Fans and Led strips sold separately).

Compatible with the Following Fans

Game Max Vortex RGB
Game Max Storm Force RGB
Game Max Eclipse RGB


Key Features

PC RF RGB controller
Touch Remote
8 channels allow you to control your Fans and LED Strips at the same time
SATA Power Connection
4Pin connector
******* Please Note - The Game Max RGB LED strip is not compatible. ********


Specifications

Working Temperature:-20 - 60 °C
Output:8 Channels
Output current:<2A (Each Channel)
Supply Voltage Of Controller:DC 12V
Supply Voltage Of Remote:4.5V
Static Power Consumption Of Remote Power:0.015mW
Standby Current of Remote:3uA
Work Current Of Remote:200uA
Emission Current Of Remote:10mA
Distance Of Remote:20m

General Specifications

Manufacturer Part Number: FC-PH-QH0H
EAN Number: 5055492405555
Has Mains Plug: No
Colour: Black

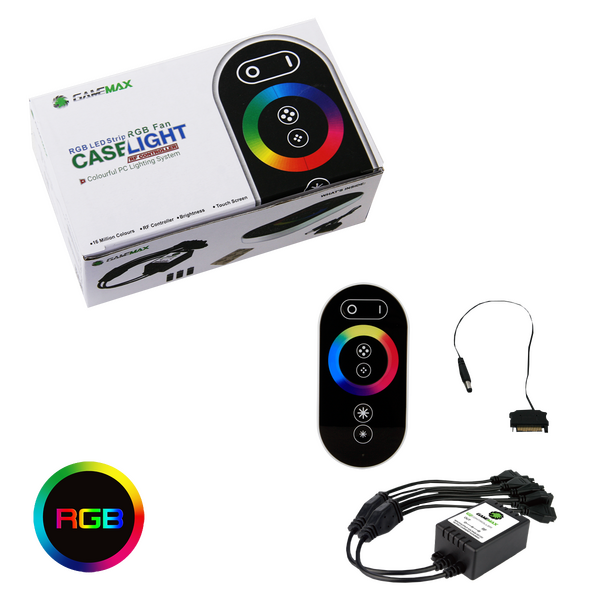

What's In The Box:
RGB Controller
RF Controller
Sata Power Connection

Unit (Product) Dimensions (mm):114mm x 56mm x 25mm (W x H x D)
Packaging Dimensions (mm):135mm x 80mm x 55mm (W x H x D)
Net Weight (KGs):0.15 KGs
Gross Weight (KGs):0.175 KGs
