Description

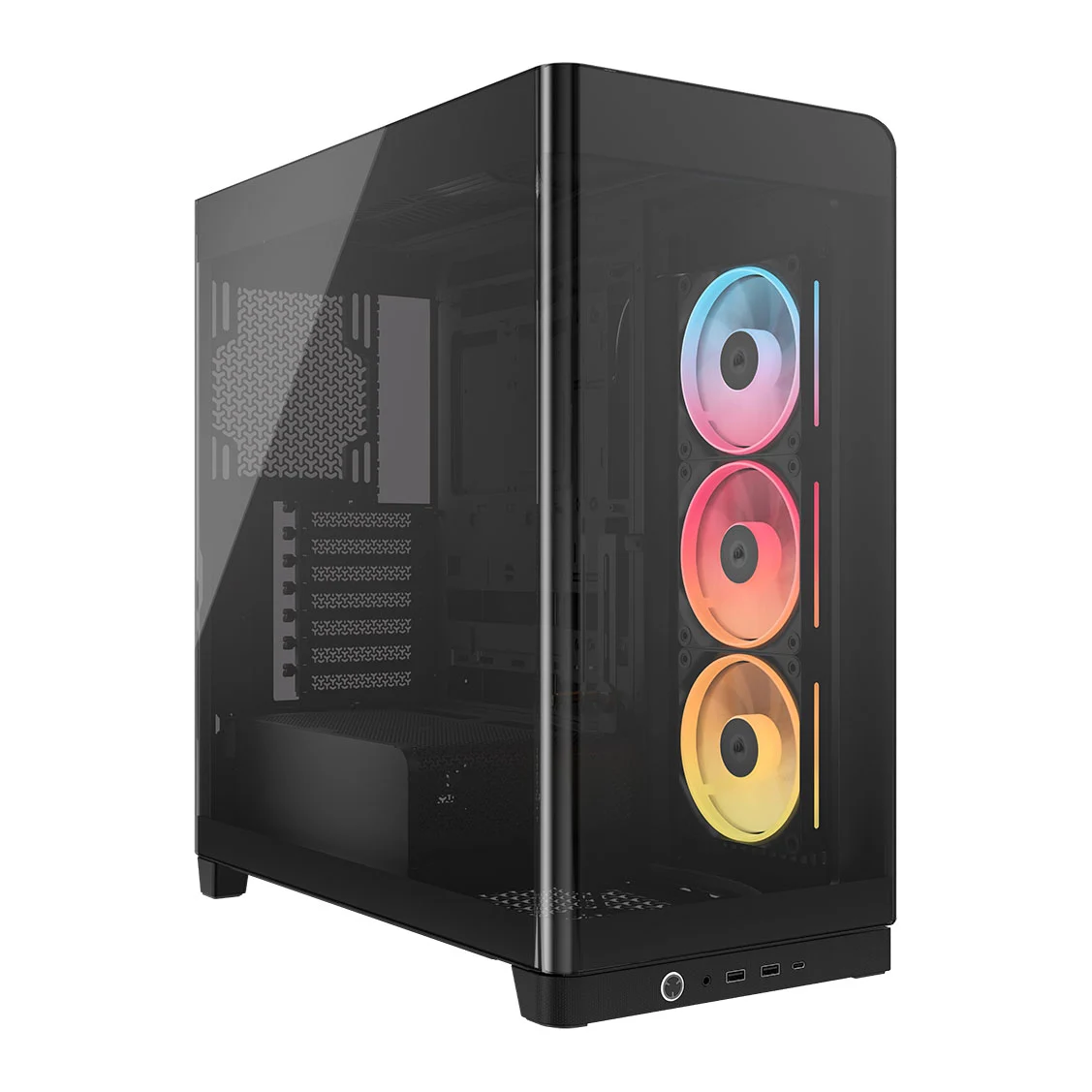

FRAME 4500X LX-R ARGB Black Mid-Tower PC Case from Corsair
a panoramic view
The CORSAIR FRAME 4500X is a mid-tower chassis that offers stunning visuals and high-performance features, all built on the customizable FRAME Modular Case System. Immaculate builds are achievable thanks to the single-piece wraparound glass panel and support for reverse-connector motherboards, while temps stay frosty with room for dual 360mm radiators and up to 10x 120mm fans or 5x 140mm fans using the InfiniRail fanmounting system. The roomy interior is designed for oversized GPUs and includes an Anti-Sag arm, and reverse-rotor RGB fans complete the package. If your mood changes down the road, the case is customisable via the modular FRAME system, so it’s also future-proof.
Single-Piece Curved Glass Panel
The front and side panel are made from a single piece of glass, providing an unobstructed, wraparound view of a PC’s glorious hardware. Clean lines cascade like a waterfall over the exterior of the chassis, offering generous openings for airflow and a unique look that sets it apart.
Reverse-Rotor RGB Fans
The included side-mounted 120mm fans use a reverse-rotor design to blow cool air into the case while providing an unobstructed view of their dazzling RGB LEDs. Bring amazing airflow and lighting to your PC with CORSAIR iCUE LINK LX120-R RGB Fans, featuring reverse rotors, dual light loops, and simplified iCUE LINK connectivity.
FRAME Modular Case System
The revolutionary FRAME system gives new meaning to the word customisation. You can upgrade the motherboard tray, change the side-mounted fans to a cable cover, or swap out the PSU shroud to a form-fitting design.
CORSAIR InfiniRail™ Fan Mounting System
This steel multi-point mounting system offers unmatched flexibility in roof fan configurations. Simply slide the rail to mount 120mm or 140mm fans wherever you like, ensuring targeted airflow without fixed mounting constraints.
Reverse Connection
Motherboard Support
ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth validated.
Drives, Drives, Drives
Includes drive tray for a 3.5” hard drive or two 2.5” SSDs, or they can be removed entirely to make room for custom liquid cooling components and cable storage.
Solid GPU Support
Modern graphics cards are bigger and heavier than ever, which is why it includes a GPU Anti-Sag stabilization arm. The FRAME 4500X is spacious enough for the most powerful GPUs and cooling components, but not so big as to hog all your desktop space
Fill It With Fans
There is ample room for case fans with support for 10x 120mm fans, including three along the bottom of the chassis directing air towards the GPU. Up to 5x 140mm fans are supported as well for a near-silent build.
Dual 360mm Radiator Support
Take your cooling to the next level with two mounting locations for 360mm radiators on the roof and side.
Tech Specs
Case Supported -
Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Case Height - 478
Case Length- 499
Case Width - 246
Material - Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic
Motherboard Support - Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Color - Black
Case Size -Mid-Tower
Radiator Compatibility - 120mm, 140mm, 240mm, 280mm, 360mm
Case Window - Tempered Glass
Compatible Liquid Coolers - H60, H100, H115, H150, NAUTILUS, TITAN
Case Warranty - 2 Year
Drive Bays
Internal 3.5" Drive Bays - 1
Internal 2.5" Drive Bays - 2
Maximum CPU Cooler Height - 185mm
Maximum PSU Length - 250mm
Case Front IO - (1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out
Maximum GPU Length - 460mm
Weight - 11.68kg
Case Expansion Slots - 7 Horizontal or 3 Vertical
Case Power Supply - ATX
Radiator Support - Top -360mm, 280mm, 240mm
Radiator Support - Front - None
Radiator Support - Bottom - None
Radiator Support - Side - 360mm, 280mm, 240mm
Radiator Support - Rear - 140mm, 120mm
Fan Support - Top - 3x 120mm, 2x 140mm
Fan Support - Front - None
Fan Support - Bottom - 3x 120mm, 1x 140mm
Fan Support - Side - 3x 120mm, 2x 140mm
Fan Support - Rear - 1x 120mm, 1x 140mm
Front IO Motherboard Connections - 1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL
Reverse Connector Motherboard Support - Yes
Included Fans - iCUE LINK LX Series
Dust Filtration - Yes
Cable Routing Space - 37mm
RapidRoute Included - No
Left Side Panel - Tempered Glass
Right Side Panel - Steel
Vertical Mount Support - Supported (Riser Card Sold Separately)
