Description

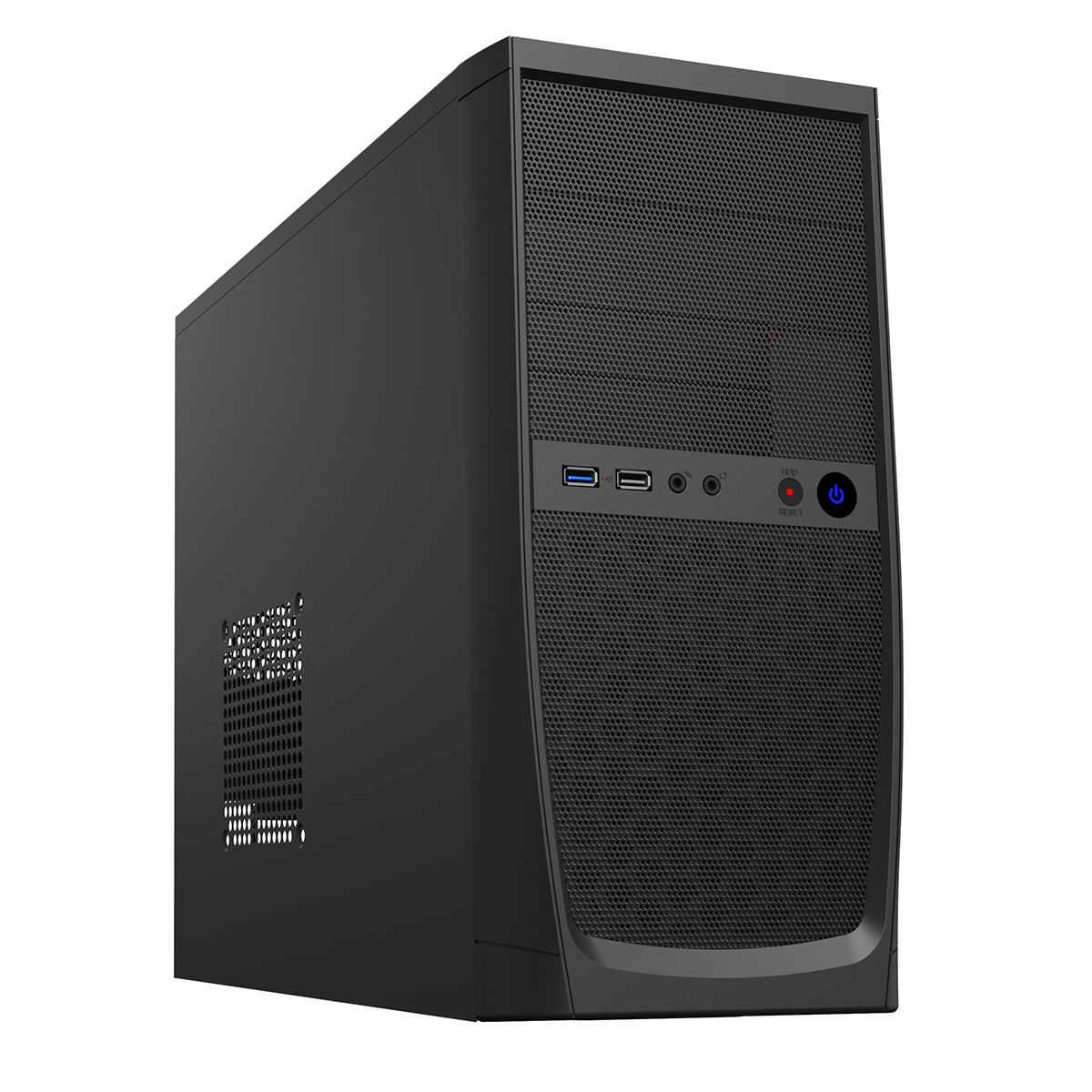

The CiT elite is a budget focused Micro-ATX chassis aimed at business and home office solutions. The Elite is one of the best air cooling solutions with a full mesh front panel for a professional look and is equipped with a USB3 port on the front of the I/O panel. The Elite also includes a rear 80mm fan.
The Elite is an ideal choice for anyone looking to build an office or home based PC on a budget.
Key Features
Full mesh front panel with 1 x USB 3.0
Black chassis with 80mm rear cooling fan included
Micro ATX chassis with a simple design
Intel Approved TAC2.0 thermal chassis
Black coated interior
Specifications
PSU Rail Output (max.):
+3.3V: 26A
+5V: 27A
+12V: 22A
-12V: 0.5A
+5VSB: 2.0A
PSU Connectors & Qty:
20 + 4pin ATX Mainboard: 1
4pin +12V CPU: 1
SATA: 3
4pin Molex: 2
FDD: 1
:
Chassis Size (Without the Front panel and Side Panel): (W) 173 x (H) 370 x (D) 365mm
Case Specifications
Form Factor: Micro ATX
Motherboard Support: Micro ATX, Mini ITX
PSU Support: Standard ATX
PSU Location: Top
Gaming Case: No
Water Cooling: Not Water Cooling Ready
Body Material: 0.5mm SPCC
Front Bezel Material: Mesh
Side Panel: Vented
Internal Cable Management Depth: 21mm
External Bays: 2 x 5.25” External
2 x 3.5” External
Internal Bays: 1 x 3.5” Internal
2 x 2.5” Internal
Drive Bay Notes:
Expansion Slots: 4 x Full Size
Cooling Front: Space for 1 x 80mm Fan
Cooling Top: None
Cooling Rear: 1 x 80mm Fan (1 x 80mm Fan inc.)
Cooling Side: Vent
Cooling Bottom: None
IO Ports: 1 x USB 3.0
1 x USB 2.0
1 x HD Audio
GPU Max Length: 330mm
CPU Cooler Maximum Height: 160mm
Front Bezel Colour: Black
Body Colour: Black
System Cabinet Features: Supports Kensington Lock
PSU Included: Yes
General Specifications
Manufacturer Part Number: Elite
EAN Number: 5055492406101
Has Mains Plug: No
Colour: Black
Unit (Product) Dimensions (mm): 173mm x 414mm x 371mm (W x H x D)
Packaging Dimensions (mm): 209mm x 445mm x 405m
