Description
Performance
Suitable location
Locations in which the product can be used.
Processor
Type
Characteristics of the device.

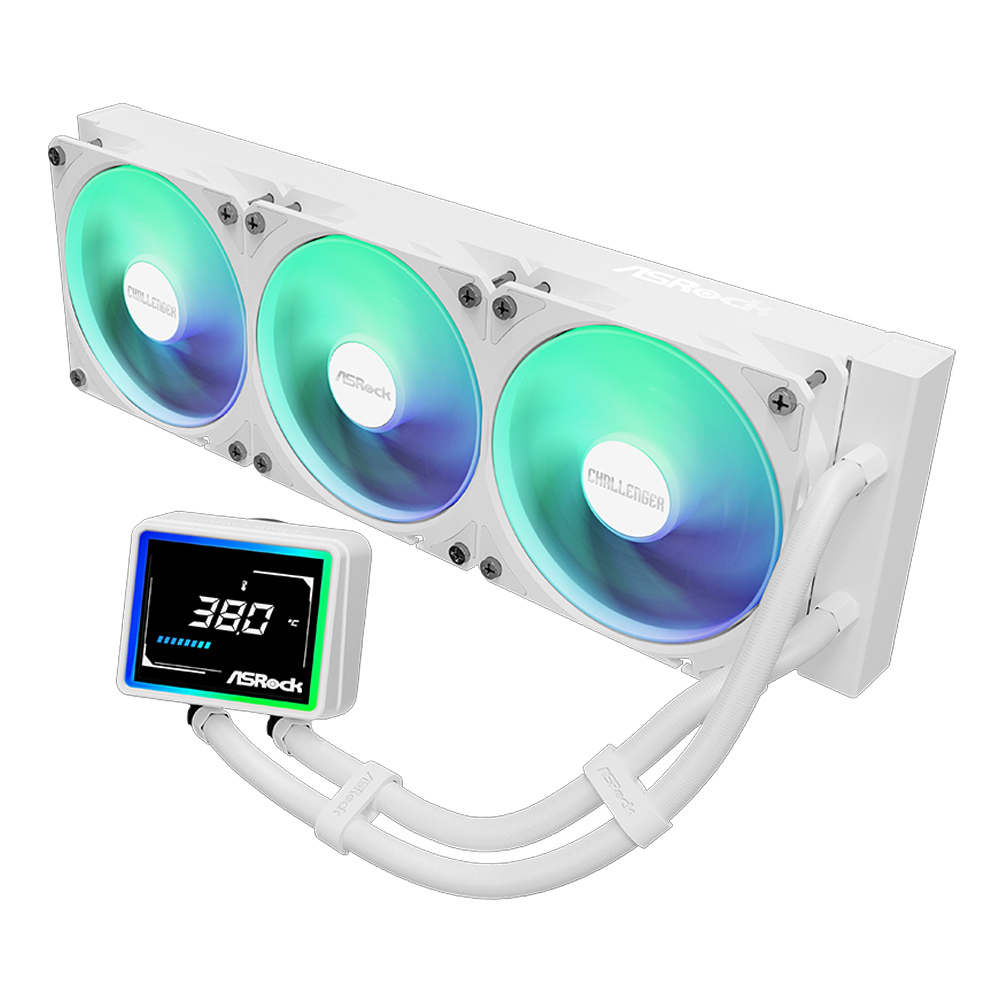

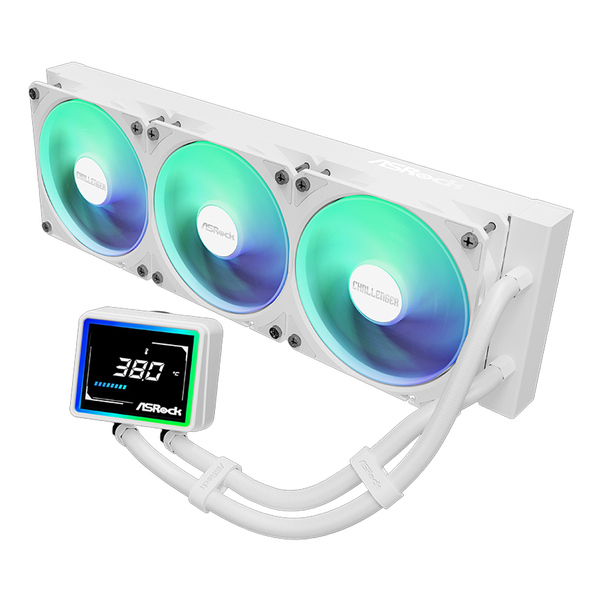

All-in-one liquid cooler
Fan diameter
The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.
12 cm
Supported processor sockets
The sockets (plugs) for processors that are supported (can be used) by the device.
Socket AM4, Socket AM5, LGA 1851, LGA 1700
Rotational speed (min) 1200 RPM
Noise level (high speed)
How loud the device is when used at high speed.
31 dB
Maximum airflow 62.6 cfm
Maximum air pressure 1.44 mmH2O
Pulse-width modulation (PWM) support
Bearing type Rifle bearing
Pump connector 4-pin
Pump motor speed (min) 1200 RPM
Pump motor speed (max) 3200 RPM
Design
Product colour
The colour e.g. red, blue, green, black, white.
White
Radiator material Aluminum
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
3 fan(s)
Illumination LED
Illumination colour
The colour of the illumination, which is the light which allows you to see the display etc. clearly.
Amber, Blue, Green, Red
Fan connector 4-pin
Water block material Copper
Display type
Type of display (screen) e.g. LCD.
LED
Display diagonal
Size of the display for this product, measured diagonally, usually in inches.
7.62 cm (3``)
Display resolution
The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, ``1024 × 768`` means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.
480 x 480 pixels
Power
Pump voltage 12 V
Pump current 720 mA
Fan voltage 12 V
Fan current 0.18 A
Weight & dimensions
Radiator width 12 cm
Radiator depth 39.4 cm
Radiator height 2.7 cm
Tube length 45 cm
Waterblock width 8.41 cm
Waterblock depth 8.5 cm
